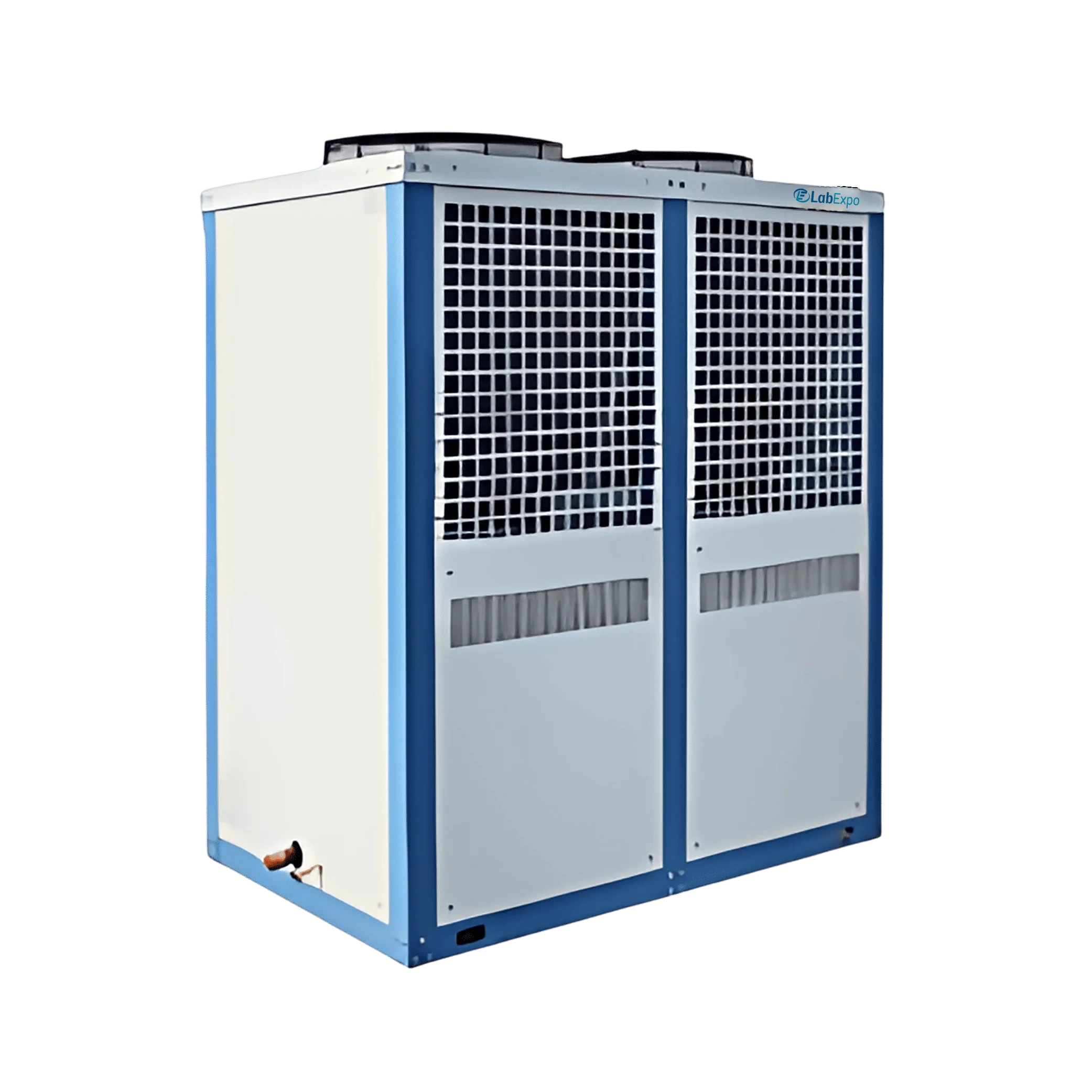

V-shaped Air-out Cold Room Unit 17-VAC101

V-shaped Air-out Cold Room Unit 17-VAC101

V-shaped Air-out Cold Room Unit 17-VAC101 works in a storage temperature range of -20°C to 10°C providing flexible cold storage options. It features electricity defrosting ensuring efficient operation and reduced downtime during maintenance cycles. It operates at an evaporating temperature of -15°C maintaining consistent cooling performance. Our cold storage rooms use a hermetic scroll compressor for quiet, efficient, and low-vibration operation.

$13,409.00 $ 11174

V-shaped Air-out Cold Room Unit 17-VAC101 - Specifications

Evaporating temperature -15 °C
Refrigerant R404A
Nominal working condition power 7770 W
Suitable storage temperature -20 °C to 10 °C
Power 380 V/3P/50 Hz
Control mode Electricity defrosting
Throttle modes Thermal expansion valve throttling
Compressor Hermetic scroll
Dimensions 1330 × 720 × 1390 mm
Weight 160 kgs

V-shaped Air-out Cold Room Unit 17-VAC101 - Key Features

  • Electricity defrosting mode for efficient operation and reduced downtime
  • Evaporating temperature -15 °C with consistent cooling performance
  • Temperature range -20 °C to 10 °C with suitable storage conditions
  • Nominal working condition power 7770 W with 380 V/3P/50 Hz power supply
  • Hermetic scroll compressor for quiet, efficient, and low-vibration operation

V-shaped Air-out Cold Room Unit 17-VAC101 - Applications

FunctionImplementation
Cold Storage Operations7770 W nominal working condition power ensures efficient operation
Temperature-Sensitive Storage-20 °C to 10 °C suitable storage temperature range maintains consistent cooling
Heavy-Duty Cooling Applications380 V/3P/50 Hz power supply supports high-capacity cooling demands
Low-Temperature Preservation-15 °C evaporating temperature enables precise temperature control
Efficient Operation in Harsh Environments160 kgs weight and compact dimensions facilitate easy installation and relocation

V-shaped Air-out Cold Room Unit 17-VAC101 - Catalog

V-shaped Air-out Cold Room Unit 17-VAC101 Catalog

Related V-shaped Air-out Cold Room

Lab Expo V-shaped Air-out Cold Room is designed for controlled refrigerated storage where airflow uniformity and temperature stability are critical for preserving sensitive materials. The system operates with a V-shaped air discharge pattern that distributes cold air evenly to eliminate thermal variation across the chamber. High-performance insulated panels and durable build support thermal efficiency, while digitally regulated temperature control ensures consistent, energy-efficient storage performance for continuous laboratory and industrial use.
