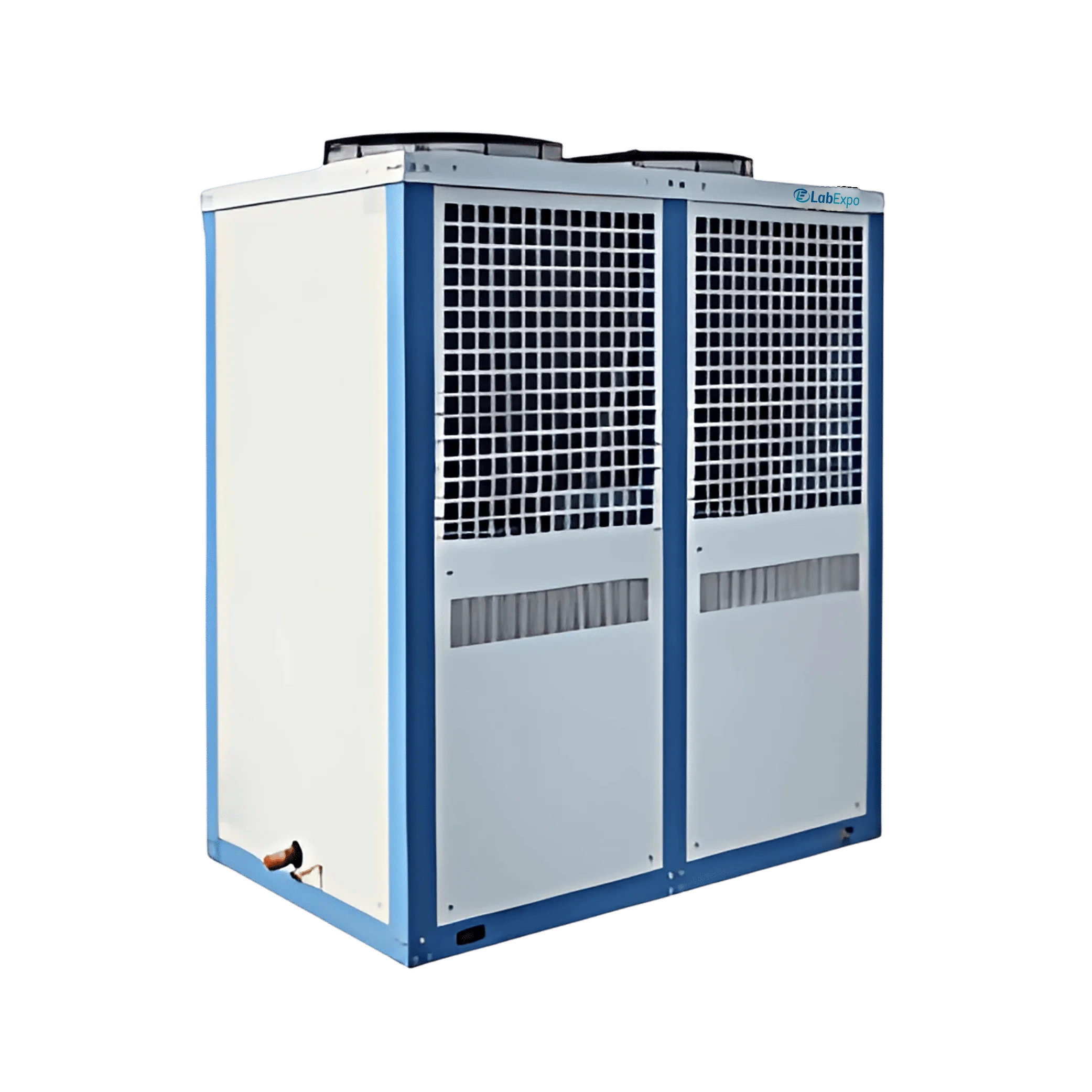

V-shaped Air-out Cold Room Unit 17-VAC105

V-shaped Air-out Cold Room Unit is outfitted with an electricity defrosting control mode. It has a storage temperature in the range from -20 °C to 10 °C. It features a R404A refrigerant. It is widely used for air-conditioning purpose in various industrial and commercial organizations. Its hermetic scroll compressor prevents leakage.

Evaporating temperature -15 °C
Refrigerant R22
Nominal working condition power 8165 W
Suitable storage temperature -20 °C ~ 10 °C
Power 380 V/3P/50 Hz
Control mode Electricity defrosting
Throttle modes Thermal expansion valve throttling
Compressor Hermetic scroll
Dimensions 1550 × 880 × 1630 mm
Weight 170 kgs
  • Internal thread heat exchange which enhances heat exchange effect
  • Sensible structure and even air-out by the condenser
  • Integral box-structure preventing the rapid aging of electric boxes and wires
  • Memorize every parameter and auto operates after power-on

Used for air-conditioning purpose in high, medium and low temperature small cold rooms. It’s also used for preservation, food processing and medical purpose.
