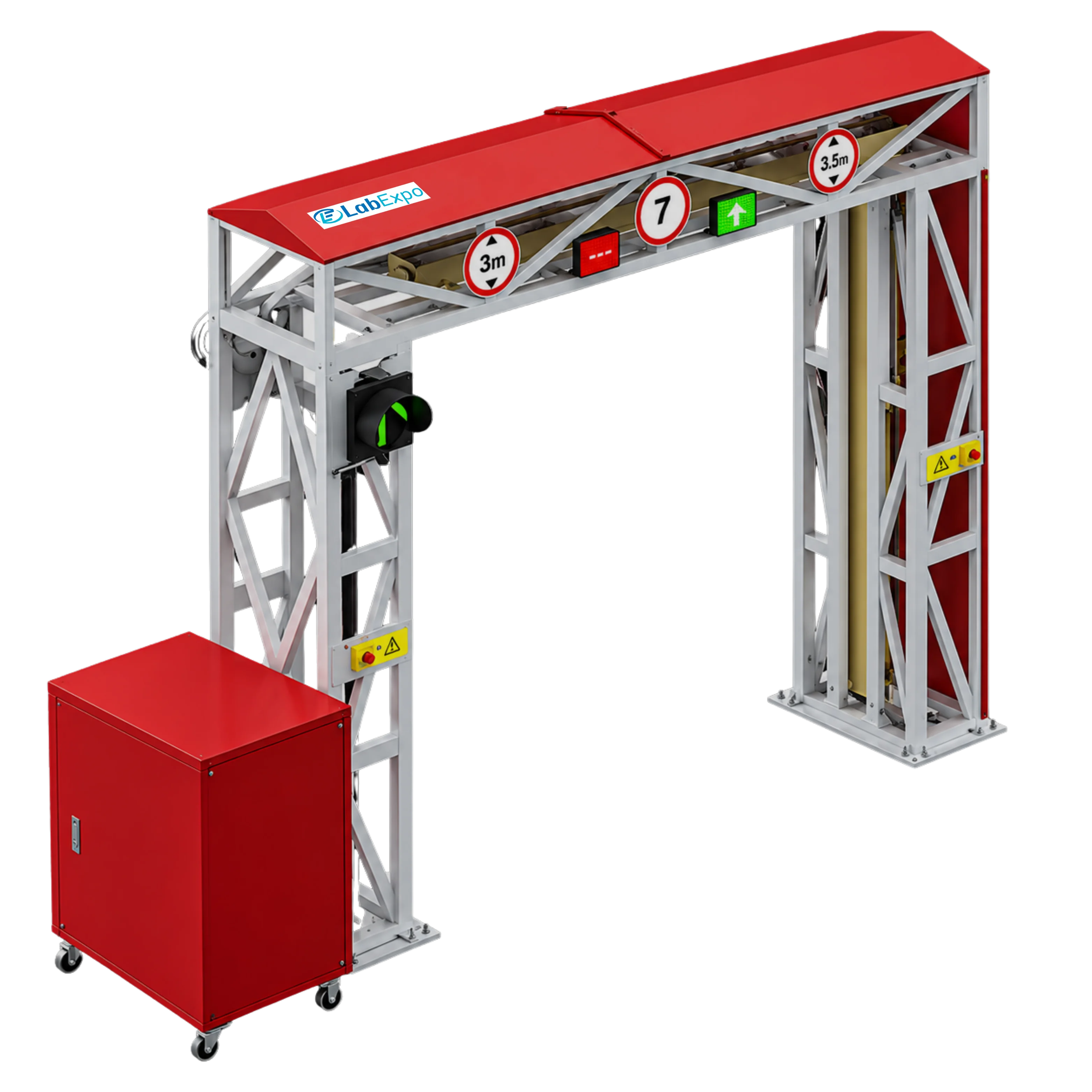

Lab Expo Vehicle X-Ray Scanner LE-VXS102 is designed to scan up to 100 vehicles per hour at 5 to 10 km/h. It delivers fast, non-intrusive inspections using dual-energy imaging to detect brake materials, metals, and threats. Incorporated vehicle bottom detection system enhances scanning accuracy and supports thorough security inspections. Built-in functionality allows scanning without requiring drivers to exit the vehicle. Our Vehicle X-Ray Scanner is ideal for drive-through security checkpoints at borders, ports, and sensitive facilities.
$275,076.00 $ 229230
| Scanning Speed | 5 to 10 km/h |
| Pass Rate | 100 cars/h |
| Penetration | Typical Value 45 mm Steel Plate, Application Value 25 mm Steel Plate |
| Line Resolution | 1.2 mm Diameter Copper Wire |
| Absorbed Dose | Single Scan < 0.2μsv |
| Boundary Dose | Common Area < 0.5μsv in Accordance with IAEA Standards |
| Console | 24-inch Single Console |
| X-ray Generator | Dual Energy |
| Light Source | 200kv Sealed Oil Cooled |
| Software | Operator Protection Password LoginImage Function: Color / Black and White, Increase, Over Increase, Reverse Color, Organic Removal / Inorganic Removal, Highlight / Subtract Dark, Zoom In/OutCheck Vehicle Information List, Data Query, User Management, Real-time Curve, PlaybackLive Video, Real-time Capture (Custom)Organic Matter Inorganic Color Image Display |
| Outbound | Top Illuminated |
| Operating Temperature | 5°C to 40°C |
| Operating Humidity | 0% to 90% |
| Storage Temperature | -23°C to 60°C |
| Storage Humidity | 10% to 90% |
| Power Consumption | 2 KVA |
| Power Supply | AC 220V±10%, 50Hz±3 Hz |
| Channel Dimension | 3000 × 3000 mm |
| Packing Size (X-ray Source and Control Assembly) | 1340 × 940 × 1520 mm |
| Volume (X-ray Source and Control Assembly) | 1.915 CBM |
| Packing Size (Left and Right Support Assemblies) | 3090 × 1160 × 1500 mm |
| Volume (Left and Right Support Assemblies) | 5.378 CBM |
| Packing Size (Upper Crossbeam Assembly) | 4140 × 1120 × 880 mm |
| Volume (Upper Crossbeam Assembly) | 4.080 CBM |
| Total Volume | 11.373 m³ |
| Net Weight | 750 kg |
| Gross Weight | 1000 kg |
Function Implementation Border security checkpoints 100 cars/h supports high-volume vehicle screening Port facility inspections Dual energy detects organic and inorganic threats Drive-through security lanes 5 to 10 km/h enables scanning without vehicle stoppage Customs control points Penetration of 45 mm steel plate identifies concealed items Sensitive facility access Boundary dose < 0.5 μsv ensures operator safety compliance
Lab Expo Vehicle X-Ray Scanner units are designed for vehicle inspection and security screening in border control, industrial, and checkpoint applications. Models support vehicle x ray inspection system analysis with scanning speeds from 5 to 10 km/h, pass rates up to 100 cars/h, and steel penetration capability up to 70 mm for car security scanner operations.
