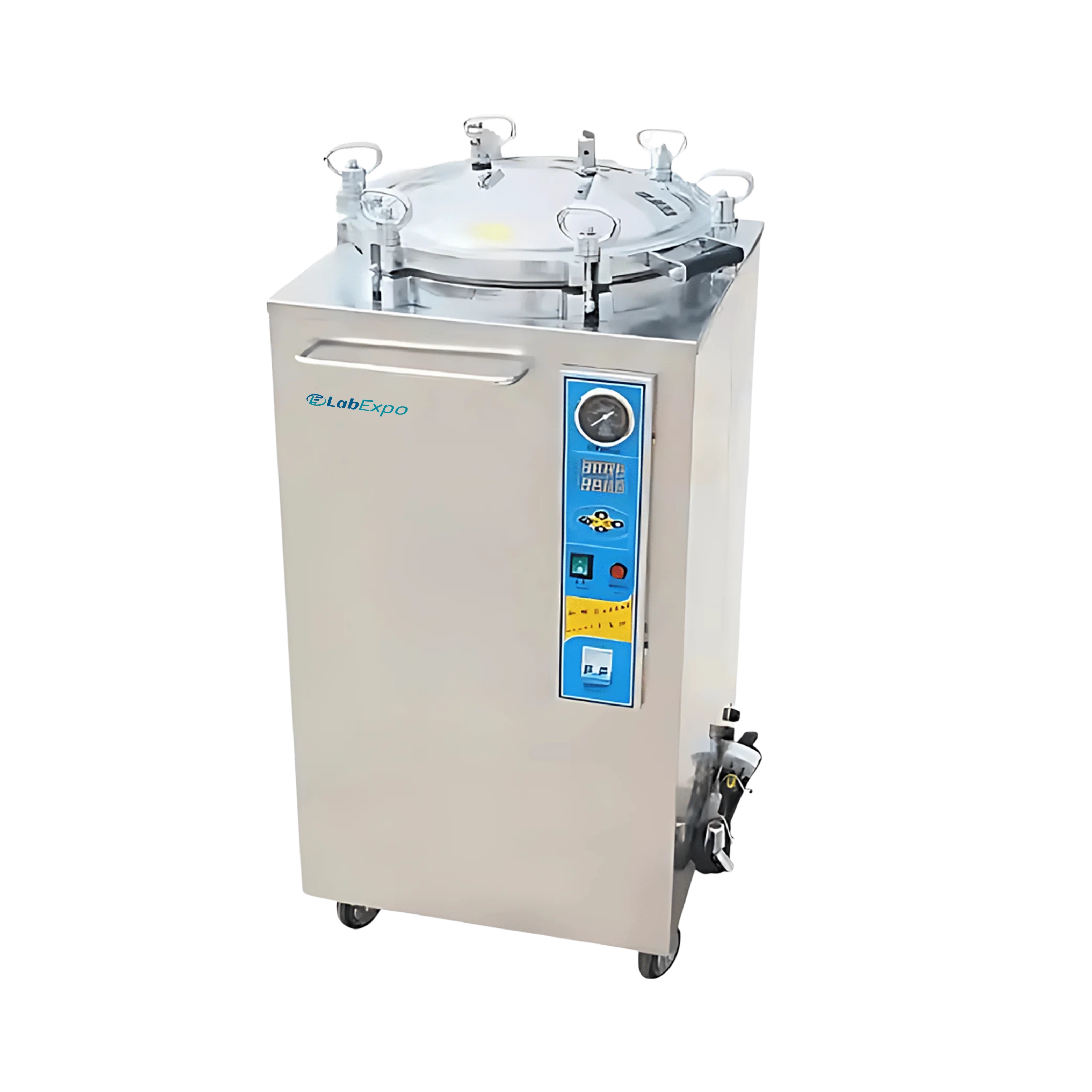

Vertical Autoclave 26-VAC1005

Vertical Autoclave 26-VAC1005

Model: 26-VAC1005

Lab Expo Vertical Autoclave 26-VAC1005 offers 150 L top-loading steam sterilization from 100 to 134 °C at a working pressure of 0.22 MPa. PID temperature control and an immersed copper heating element hold the set temperature for the sterilization time, adjustable up to 999 min. Overpressure release, overheat and water shortage protection and a zero-pressure door lock keep each cycle safe on this vertical pressure steam sterilizer.

$5,315.00 $ 4429

Vertical Autoclave 26-VAC1005 - Specifications

Capacity 150 L
Max temperature 134 °C (range 100–134 °C)
Max working pressure 0.22 MPa
Timer 0–999 min
Loading Top lid, on castors
Full Structure Full SUS304
Control PID microcomputer
Safety Auto release on overpressure, overheat and water-shortage protection
Display LED digital display
Chamber (φ × depth) φ460 × 700 mm
Heat average ≤ ±1 °C
Immersed copper heating Yes
Zero-pressure door lock and safety valve Yes
Power 4.0 kW, AC220V / 50 Hz
Packaging Dimensions 72 × 69 × 124 cm
Net Weight 80 kg
Gross Weight 110 kg

Vertical Autoclave 26-VAC1005 - Key Features

  • ▶ PID microcomputer temperature control
  • ▶ Immersed copper heating system
  • ▶ Dual scale pressure indication
  • ▶ Overpressure, overheat and water shortage protection
  • ▶ Zero-pressure door lock safety

Vertical Autoclave 26-VAC1005 - Applications

FunctionImplementation
SterilizationLaboratory glassware, instruments and culture media
Department UseMicrobiology, Biotechnology and Testing Laboratories
SuitabilityTop-loading chamber on castors for floor-standing use
Application AreasResearch laboratories and quality control units

Vertical Autoclave 26-VAC1005 - Catalog

Related Vertical Autoclave

Lab Expo Vertical Autoclave supports space-efficient sterilization operations where top-loading access and controlled steam processing are required for routine instrument handling. This vertical sterilizer operates using high-temperature pressurized steam and is Manufactured with a stainless steel chamber for uniform heat distribution. Digital controls manage temperature, pressure, and cycle timing, while integrated over-pressure and over-temperature protection with automatic shut-off ensure consistent, controlled cycle completion for daily sterilization use.
