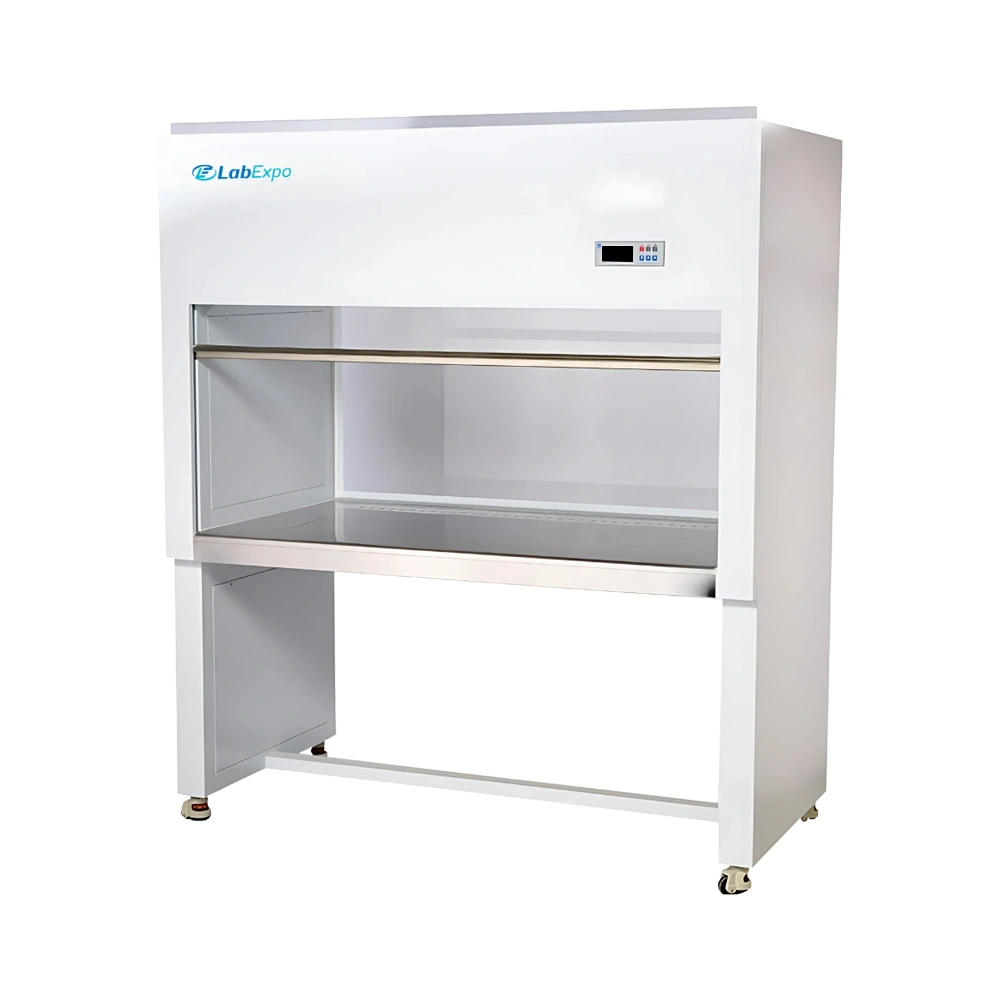

Lab Expo Vertical Laminar Flow Cabinet LE-VLC101 is equipped with a HEPA filter delivering over 99.99% efficiency for particles larger than 0.3 microns. It maintains an average adjustable airflow velocity of 0.3 to 0.5m/s for consistent protection. Built-in seamless stainless steel work surface ensures corrosion resistance and easy cleaning. Incorporated cold-rolled steel housing with finely sprayed finish enhances durability. Our Vertical Laminar Flow Cabinet is ideal for microbiology, forensic, and other contamination-sensitive applications.
$4,294.00 $ 3578
| Cleanliness in Work Area | ISO Class 5, Class 100 (Fed 209E) |
| HEPA Filter | Filters Provide More Than 99.99% Typical Efficiency for Particle Size Greater Than 0.3 Microns |
| Average Air Velocity | 0.3 to 0.5m/s (Adjustable) |
| CFU | ≤ 0.5/Dish Hour（ φ 90mm Petri Dish) |
| Sound Emission | ≤65 dB(A) |
| RMS | ≤4μm |
| Power Consumption | ≤0.5Kw |
| Power Supply | AC220±10%,50HZ |
| External Dimensions with Base Stand | 1000 × 740 × 1650mm |
| Internal Work Area Dimensions | 840 × 680 × 520mm |
| Gross Weight | 190 kg |
Function Implementation Microbiology labs ISO Class 5 cleanliness supports aseptic sample handling Forensic analysis ≤0.5 CFU/Dish Hour enables contamination-controlled testing Quality control rooms 0.3 to 0.5m/s airflow maintains particle-free work zones Clinical testing areas ≤65 dB(A) sound emission allows quiet operational environments Pharmaceutical prep zones 99.99% HEPA efficiency for >0.3 micron particles ensures sterile conditions
Base stand
Illumination lamp
UV lamp
Lab Expo Vertical Laminar Flow Cabinets are structured around top-down HEPA-filtered airflow to establish a controlled sterile zone across the work surface. Vertical air delivery with regulated exhaust management minimizes particulate ingress and cross-contamination during sensitive procedures. High-efficiency blowers, airflow monitoring, and durable enclosure design support consistent contamination control for microbiology, pharmaceutical handling, and tissue culture workflows.
