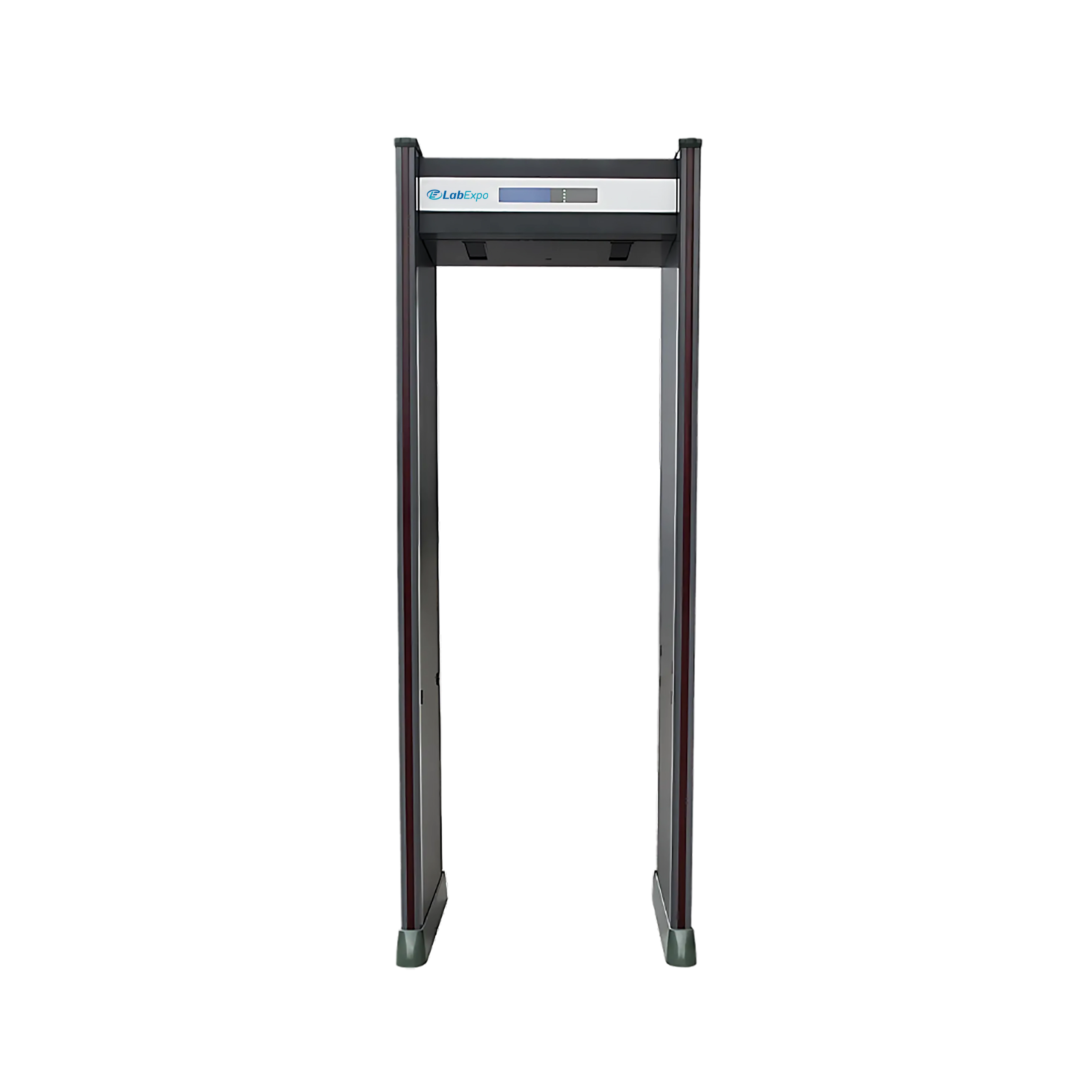

Lab Expo Walk-through Metal Detector LE-WMD203 delivers high sensitivity to detect even the smallest metal objects. It is designed with IP55-rated weatherproof housing to ensure protection from dust and water in outdoor environments. Integrated frequency adjustment allows tuning within the range of 7000 to 8999 Hz. Built-in detection zones are available in 6, 12, or 18 configurations for flexible security screening. Our Walk-through Metal Detector is ideal for hospitals, healthcare facilities, and other outdoor security-sensitive locations.
$2,155.00 $ 1796
| Space | Outdoor Use |
| Detection Zones | 6, 12, 18 |
| Signal Frequency | 7000 to 8999Hz (Adjustable) |
| Work Environment | -20°C to 45°C |
| Sensitivity Adjustable | Level 0 to 299 |
| Alarm | Sound and Light |
| Maximum Distance | 0.3m at Low Sensitivity; 0.5m at High Sensitivity |
| Operation Temperature | 5°C to 40°C |
| Operation Humidity | 0% to 90% (Non-Condensing) |
| Storage Temperature | -20°C to 55°C |
| Storage Humidity | 0% to 98% |
| Power Consumption | 10 W |
| Power Supply | AC 100V to 240V, 50/60Hz |
| Outer Frame Dimension | 2210 × 810 × 605 mm |
| Inner Frame Dimension | 1980 × 700 × 605 mm |
| Weight | 70 Kg |
Function Implementation Healthcare facility entrances 10 W supports continuous operation in clinical settings Outdoor security checkpoints IP55-rated housing protects against dust and water ingress High-traffic screening zones 6, 12, or 18 detection zones enable flexible configuration Temperature-variable environments -20°C to 45°C work environment ensures reliable performance Frequency-sensitive installations Adjustable signal frequency from 7000 to 8999 Hz reduces interference
Master control board
Digital keypad
Board speaker light bar
Lab Expo Walk-through Metal Detector units are designed for security screening and metal detection in public, industrial, and checkpoint environments. Models support walk through scanners and portable walk through metal detectors with detection zones from 6 to 45, adjustable sensitivity levels, indoor and outdoor operation, and screening speeds up to 100 people per minute.
