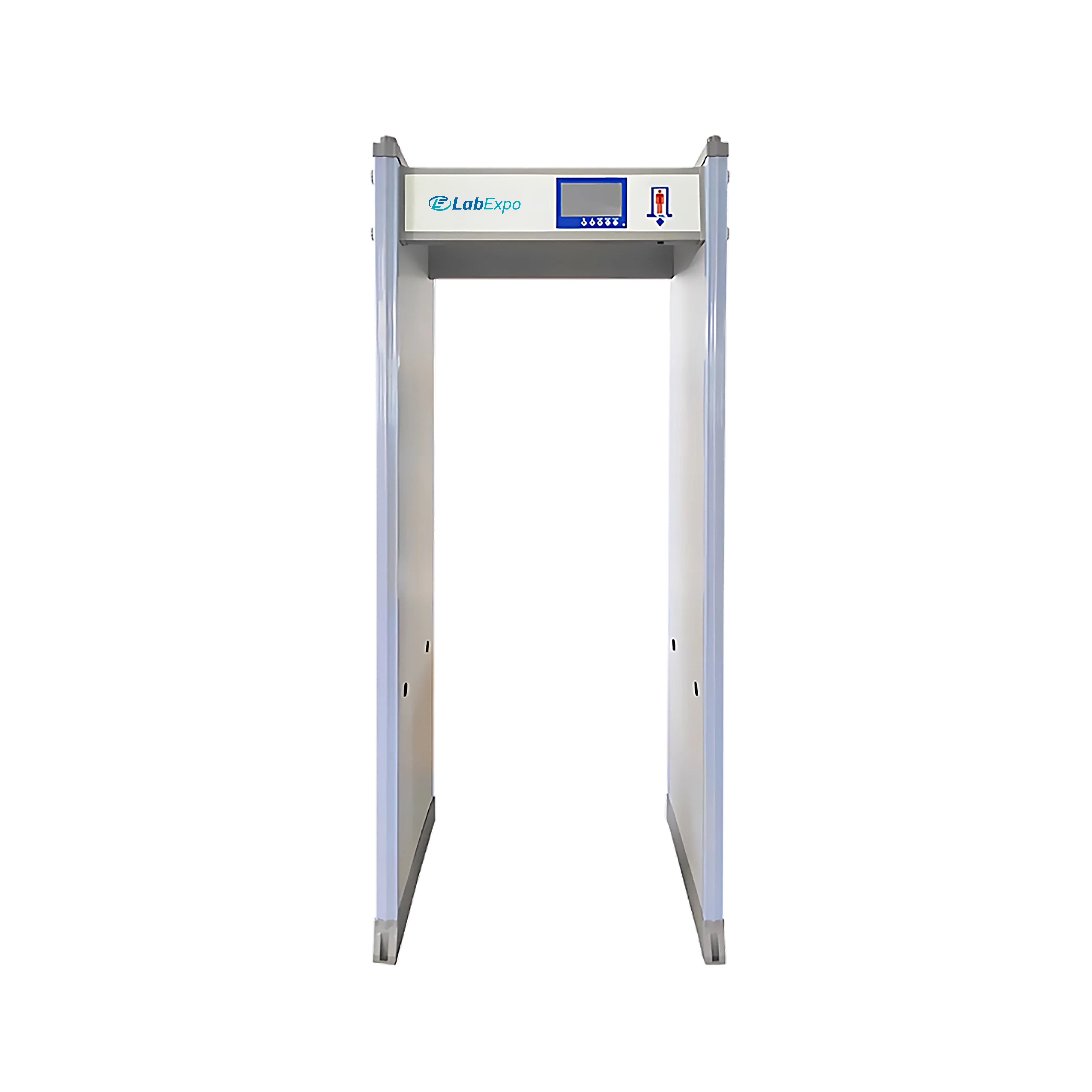

Walk-through Metal Detector LE-WMD204

Walk-through Metal Detector LE-WMD204

Lab Expo Walk-through Metal Detector LE-WMD204 offers an adjustable passing speed, accommodating up to 100 people per minute. It features five sensitivity levels, labelled A to E, for flexible security adjustments. Built-in 7-inch color screen provides a clear and user-friendly interface for real-time monitoring. Integrated detection speed settings allow customization based on operational requirements. Our Walk-through Metal Detector is ideal for government facilities, law enforcement agencies, and public venues.

$2,918.00 $ 2432

Walk-through Metal Detector LE-WMD204 - Specifications

Space Outdoor Use
Passing Speed Adjustable; Maximum Speed is 100 people/minute
Detection Zones 33, 45
Alarm Sound Time Setting 1 to 9 sec
Alarm LED Time Setting 1 to 9 sec
Alarm Volume Setting 0 to 20 Levels; When Set to 0 the Sound is Turned Off
Alarm Sound Tone Setting Level 0 to F; 1 TO 7 is Intermittent, 8 to F is Continuous Alarm Tone
Detection Location Options 1/16/30/48/60 (Optional)
Overall Sensitivity 300 Level Sensitivity Adjustment
Vibration Protection Adjustable Sensitivity(0 to 255) to Prevent False Alarm Caused by Vibration Interference
System Detection Function Manually Detects the Left and Right Defense Zones, Sound and LED Working Status
Counting Function Intelligent Passenger Flow and Alarm Counting with up to 20000 Records
Perpetual Calender Displays Year, Month, Day, Hour and Minute
Working Environment -28°C to 47°C
Power Supply DC 15V/5A
Outer Frame Dimension 2210 × 820 × 600 mm
Inner Frame Dimension 2010 × 700 × 600 mm
Weight 80 Kg

Walk-through Metal Detector LE-WMD204 - Key Features

  • Manual detection of left and right defense zones with status indication
  • Outdoor use capability for environmental durability in field conditions
  • Alarm sound tone setting from level 0 to F with intermittent and continuous modes
  • Vibration protection via adjustable sensitivity from 0 to 255 levels
  • Working environment range from -28C to 47C for operational stability

Walk-through Metal Detector LE-WMD204 - Applications

FunctionImplementation
Security screening areas100 people/minute enables high-throughput personnel flow
Government facilitiesDC 15V/5A power supply supports continuous operation
Outdoor installations-28°C to 47°C working environment allows deployment in extreme climates
Law enforcement checkpointsAdjustable sensitivity from 0 to 255 prevents vibration-induced false alarms
Public venues with traffic monitoringIntelligent counting function stores up to 20000 records for audit trails

Walk-through Metal Detector LE-WMD204 - Catalog

Walk-through Metal Detector LE-WMD204 Catalog

Related Walk-through Metal Detector

Lab Expo Walk-through Metal Detector units are designed for security screening and metal detection in public, industrial, and checkpoint environments. Models support walk through scanners and portable walk through metal detectors with detection zones from 6 to 45, adjustable sensitivity levels, indoor and outdoor operation, and screening speeds up to 100 people per minute.
