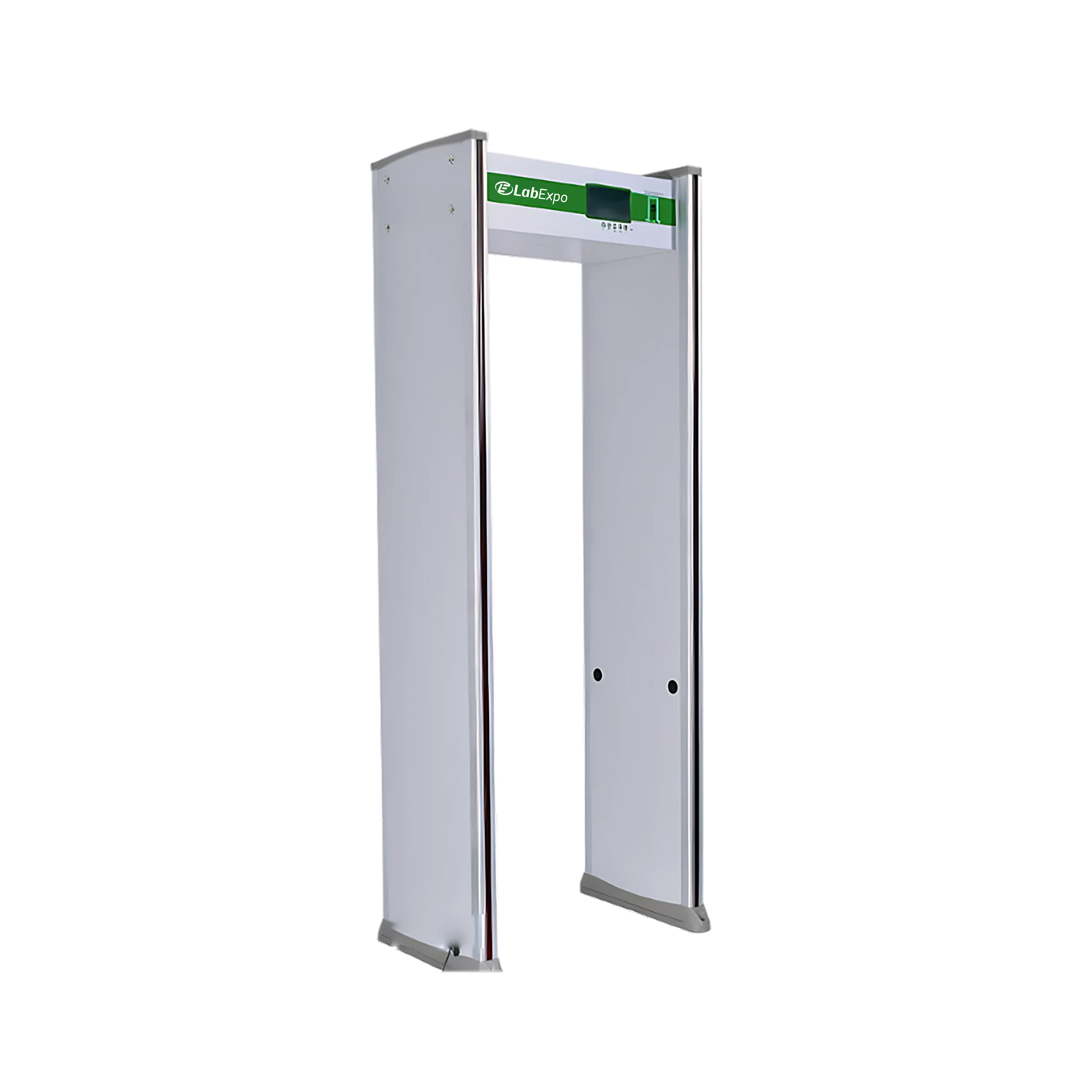

Lab Expo Walk-through Metal Detector LE-WMD205 is designed with 33 detection zones for accurate identification of metal objects. It offers a 7-inch LCD screen for clear visual display and easy monitoring during screening operations. Equipped to scan up to 60 people per minute, it supports fast and efficient security screening. Built-in detection accuracy ensures object identification at different body heights and angles. Our Walk-through Metal Detector is suitable for applications in airports, schools, stadiums, courts, and government buildings.
$3,062.00 $ 2552
| Space | Outdoor Use |
| Detection Zones | 33 |
| Operation Methods | Remote Control and Keyboard Control |
| Working Environment | -20°C to 45°C |
| Sensitivity Adjustment | Level 0 to 300 |
| High Sensitivity | Can Detect a Clip |
| Low Sensitivity | Detects Big Metal Articles such as Knives, Guns, Copper, Aluminium and Zinc(More than 150g) |
| Anti-Shock | Shock Proof to avaoid False Alarms |
| Intelligent Traffic and Alarm Counters | Calculates Traffic Flow and Resultant Alarms |
| Tamper-Proof | Operation Program Protected by Password |
| Weather-Proof Level | IP65 |
| Technology | DSP and Module Construction |
| Display | 7-inch LCD Screen |
| Power Consumption | 12 W |
| Power Supply | AC 215V to 230V, 50/60 Hz |
| Outer Frame Dimension | 2200 × 760 × 600 mm |
| Inner Frame Dimension | 2000 × 760 × 600 mm |
| Dimension | 226 × 635 × 205 mm |
| Packaging Dimension | 750 × 395 × 250 mm |
| Net Weight | 40 Kg |
| Gross Weight | 45 Kg |
Function Implementation Airport security screening 33 detection zones enables accurate metal object identification Outdoor perimeter monitoring IP65 weather-proof level supports continuous operation in rain High-traffic facility access Scans up to 60 people per minute maintains efficient flow control Industrial site entry points -20°C to 45°C working environment ensures performance indoors and outdoors Government building checkpoints Level 0 to 300 sensitivity adjustment allows customized threat detection settings
Lab Expo Walk-through Metal Detector units are designed for security screening and metal detection in public, industrial, and checkpoint environments. Models support walk through scanners and portable walk through metal detectors with detection zones from 6 to 45, adjustable sensitivity levels, indoor and outdoor operation, and screening speeds up to 100 people per minute.
