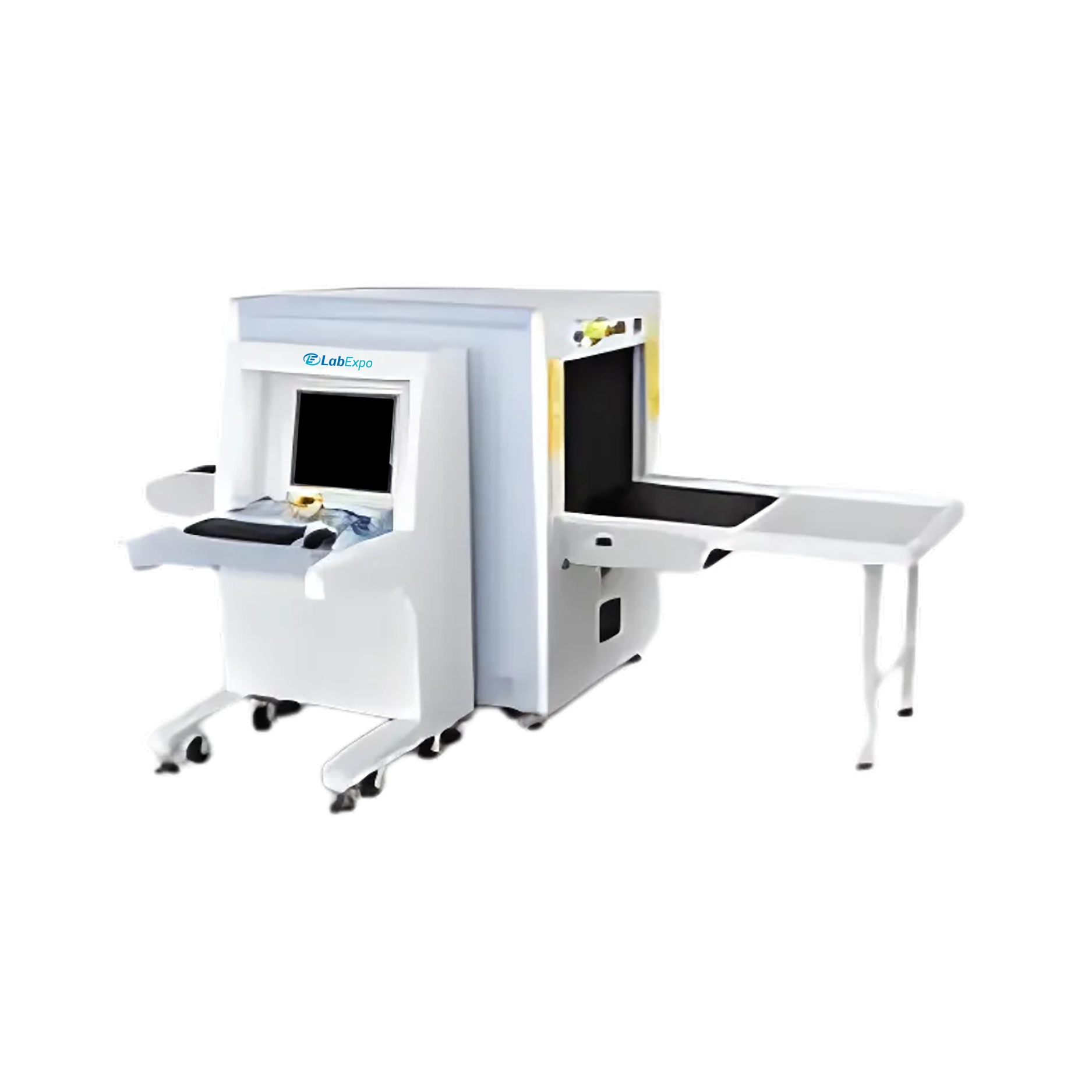

Lab Expo X-Ray Baggage Scanner LE-XBS103 is designed to handle a maximum load of 200 kg, ensuring efficient scanning operations. It operates at a speed of 0.2 m/s, allowing fast and efficient movement during scanning. Equipped with an alarm system that quickly detects threats. Built-in high-penetration capability allows it to reach up to 30 mm. Our X-Ray Baggage Scanner is suitable for quick and accurate security screening in high-traffic environments.
$15,840.00 $ 13200
| Conveyor Speed | 0.2 m/s |
| Conveyor Max Load | 200 Kg |
| Operation System | LINUX |
| Wire Resolution | AWG40 |
| Penetration Resolution | AWG32 |
| Energy | Dual |
| Spatial Resolution | Vertical: 1.0mm, Horizontal: 1.0mm |
| Penetration | 30 mm |
| X-Ray Dosage Each Inspection | ≤2.5 µSv |
| Boundary Leakage | |
| S/N Ratio | |
| Film Safety | ASA/ISO1600 Film |
| Operation Temperature | 5℃ to 40℃ |
| Operation Humidity | 0% to 90% |
| Storage Temperature | -20℃ to 60℃ |
| Storage Humidity | 10% to 90% |
| Atmospheric Pressure | 86 kPa to 106 kPa |
| Generator | One |
| X-Ray Generator | 140KV, Oil Cooling, From Bottom to Top |
| Image Storage | 10,000 Images Stored Automatically |
| Monitor | 21.5 inch LED Screen, 1920 × 1080 Pixels |
| Operation Console | Single Screen Console |
| Power Consumption | 0.8 KW |
| Leakage Current | ≤5.0 mA |
| Power Supply | 220V (±10% to 15%), 50±3Hz |
| Tunnel Dimension | 650 × 500 mm |
| Gross Weight | 740 Kg |
Function Implementation Security screening checkpoints 0.2 m/s conveyor speed enables continuous passenger flow Airport cargo facilities 650 × 500 mm tunnel dimension accommodates standard baggage sizes High-volume transit hubs 10,000 images stored automatically supports extended operational cycles Industrial inspection zones ≤2.5 µSv radiation dose per scan ensures personnel safety compliance Quality control laboratories AWG40 wire resolution detects fine material inconsistencies
X-ray generator
Console with Monitor
Keyboard and Mouse
Extended table
Power Cable
Electric drum
1: What type of items is this scanner most effective at inspecting?
Our Scanner is optimized for scanning small to medium-sized luggage, such as handbags, briefcases, parcels, and suitcases in public spaces.
2: How is image storage managed on this scanner?
It has an internal system that automatically stores inspection images, allowing operators to retrieve and review previous scans for audit or investigation purposes.
3: What benefits does the oil-cooled X-ray generator provide?
The oil-cooling system ensures consistent X-ray performance, prolongs equipment life, and maintains stable operation during extended use.
4: Is the scanner ready for continuous use in high-volume areas?
Yes, it is designed for heavy-duty, round-the-clock screening in high-traffic environments without sacrificing detection accuracy or system responsiveness.
5: What is the advantage of using a single-screen console in this unit?
These single-screen consoles streamline operations by offering centralized access to controls, monitoring, and image review on a single interface, helping minimize operator fatigue and reduce errors.
6: How do X-Ray Baggage Scanners detect concealed threats?
X-Ray Baggage scanners use dual-energy imaging technology that distinguishes materials by their atomic number, enabling the identification of organic, inorganic and metallic items even when concealed inside dense baggage or layered objects.
7: What role do advanced imaging sensors play in baggage scanning?
Advanced sensors capture subtle variations in object density and composition, producing high-contrast images that help operators identify concealed or overlapping items with greater accuracy.
8: What is enhanced zoom processing, and how does it help operators?
Enhanced zoom processing allows users to magnify specific sections of the scanned image without losing clarity or detail, enabling more precise inspection of small or suspicious objects.
9: What does non-intrusive inspection mean in X-Ray Baggage scanning?
Non-intrusive inspection refers to the ability to inspect the contents of baggage without opening or physically handling it. This is done using X-ray imaging to reveal concealed items while preserving privacy and efficiency.
10: How is non-intrusive inspection beneficial in high-security environments?
It allows for rapid, thorough screening of baggage without physical contact which improves processing speed, minimizes disruption and reduces the risk of tampering or contamination.
Lab Expo X-Ray Baggage Scanner units are designed for baggage screening and security inspection in airports, transportation hubs, and industrial facilities. Models support x ray scanner for baggage and x ray baggage inspection system applications with conveyor loads up to 250 kg, scanning speeds up to 0.22 m/s, and high-resolution imaging for security threat detection.
