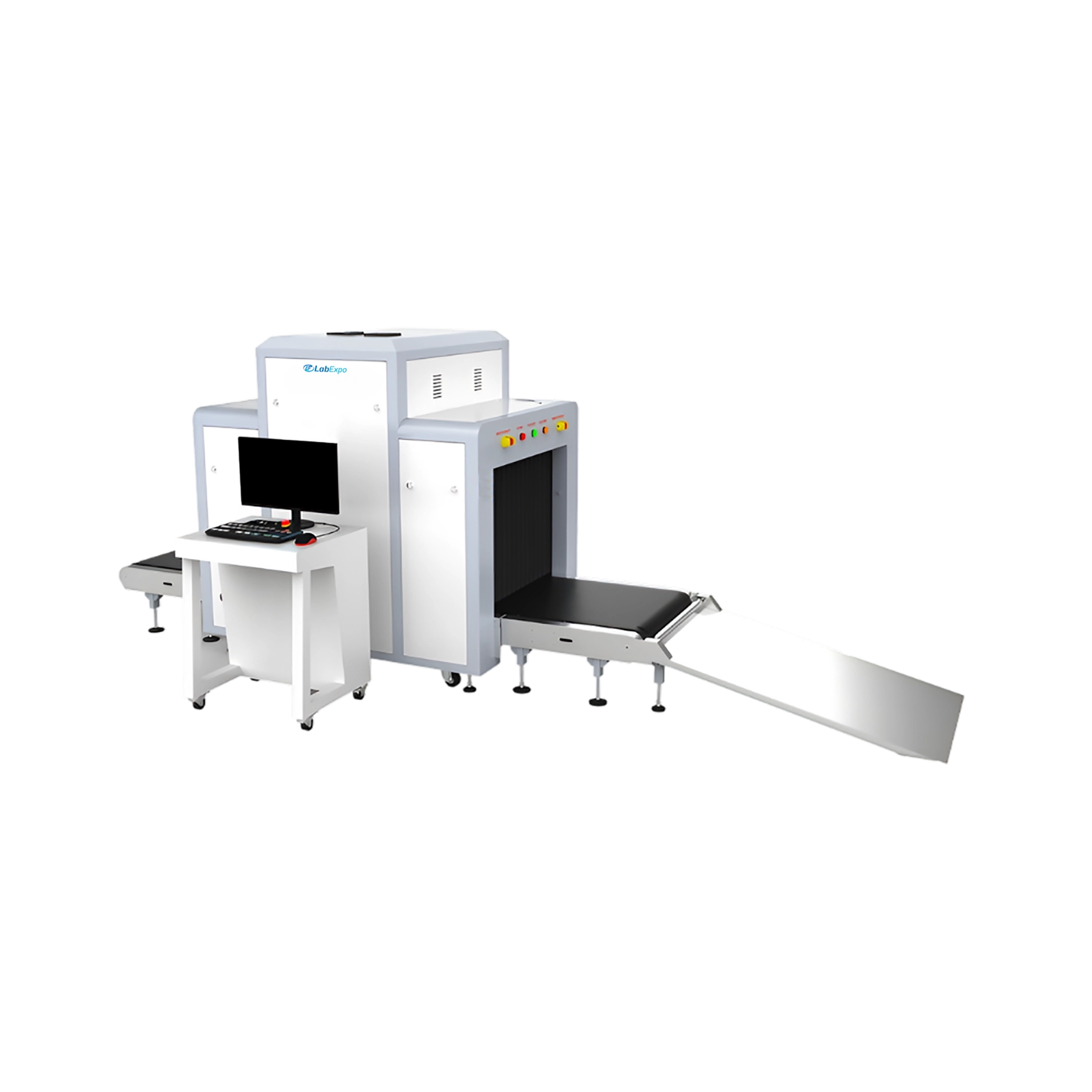

Lab Expo X-Ray Baggage Scanner LE-XBS105 delivers a maximum load capacity of 200 kg for reliable heavy baggage inspection. It operates at a conveyor speed of 0.2 m/s for smooth and efficient scanning. Incorporated penetration power of 34 mm enhances detection of concealed objects. Integrated with a Linux operating system, the machine offers robust and secure performance. Our X-Ray Baggage Scanner is perfect for security inspection of big baggage, parcels and luggages.
$21,780.00 $ 18150
| Conveyor Speed | 0.2 m/s |
| Conveyor Max Load | 200 Kg |
| Operation System | LINUX |
| Wire Resolution | AWG36 |
| Penetration Resolution | AWG24 |
| Energy | Dual |
| Spatial Resolution | Vertical: 2.0mm, Horizontal: 2.0mm |
| Penetration | 30 mm |
| X-Ray Dosage Each Inspection | ≤2.5 µSv |
| Boundary Leakage | |
| S/N Ratio | |
| Film Safety | ASA/ISO1600 Film |
| Operation Temperature | 5℃ to 40℃ |
| Operation Humidity | 0% to 90% |
| Storage Temperature | -20℃ to 60℃ |
| Storage Humidity | 10% to 90% |
| Atmospheric Pressure | 86 kPa to 106 kPa |
| Generator | One |
| X-Ray Generator | 140KV, Oil Cooling, From Bottom to Top |
| Image Storage | 10,000 Images Stored Automatically |
| Monitor | 21.5 inch LED Screen, 1920 × 1080 Pixels |
| Operation Console | Single Screen Console |
| Power Consumption | 1 kW |
| Leakage Current | ≤5.0 mA |
| Power Supply | 220V (±10% to 15%), 50±3Hz |
| Tunnel Dimension | 800 × 650 mm |
| Gross Weight | 630 Kg |
Function Implementation Security checkpoint screening 0.2 m/s conveyor speed enables efficient baggage throughput High-volume inspection areas 200 kg max load supports heavy parcel processing Linux-based operations centers Single screen console manages system controls Radiation safety compliance zones ≤2.5 µSv per inspection ensures operator protection Continuous monitoring facilities 10,000 image storage allows extended archival retention
X-ray generator
Console with Monitor
Keyboard and Mouse
Extended table
Power Cable
Electric drum
1: How does the digital signal processor improve system functionality?
The digital signal processor enables real-time processing of scanned data, allowing faster object recognition and image enhancement during high-volume screening operations.
2: What makes this model suitable for scanning heavy or large baggage?
Its high load capacity, wide tunnel dimensions, and strong structural build are designed to support the inspection of bulky items without compromising scan quality or system stability.
3: How does the system contribute to secure data handling and operation?
They operates on a Linux-based system, the scanner ensures secure access control, reliable performance, and resistance to external software vulnerabilities.
4: What energy-saving features are included in this scanner?
The system incorporates a low-energy detection board and optimized power management, reducing operational costs and making it ideal for 24/7 use.
5: How does this scanner support compliance with international safety standards?
Our scanner maintains low radiation exposure levels, offers safe operation for sensitive materials, and is built to adhere to international guidelines for baggage scanning systems.
6: How do X-Ray Baggage Scanners detect concealed threats?
X-Ray Baggage scanners use dual-energy imaging technology that distinguishes materials by their atomic number, enabling the identification of organic, inorganic and metallic items even when concealed inside dense baggage or layered objects.
7: What role do advanced imaging sensors play in baggage scanning?
Advanced sensors capture subtle variations in object density and composition, producing high-contrast images that help operators identify concealed or overlapping items with greater accuracy.
8: What is enhanced zoom processing, and how does it help operators?
Enhanced zoom processing allows users to magnify specific sections of the scanned image without losing clarity or detail, enabling more precise inspection of small or suspicious objects.
9: What does non-intrusive inspection mean in X-Ray Baggage scanning?
Non-intrusive inspection refers to the ability to inspect the contents of baggage without opening or physically handling it. This is done using X-ray imaging to reveal concealed items while preserving privacy and efficiency.
10: How is non-intrusive inspection beneficial in high-security environments?
It allows for rapid, thorough screening of baggage without physical contact which improves processing speed, minimizes disruption and reduces the risk of tampering or contamination.
Lab Expo X-Ray Baggage Scanner units are designed for baggage screening and security inspection in airports, transportation hubs, and industrial facilities. Models support x ray scanner for baggage and x ray baggage inspection system applications with conveyor loads up to 250 kg, scanning speeds up to 0.22 m/s, and high-resolution imaging for security threat detection.
