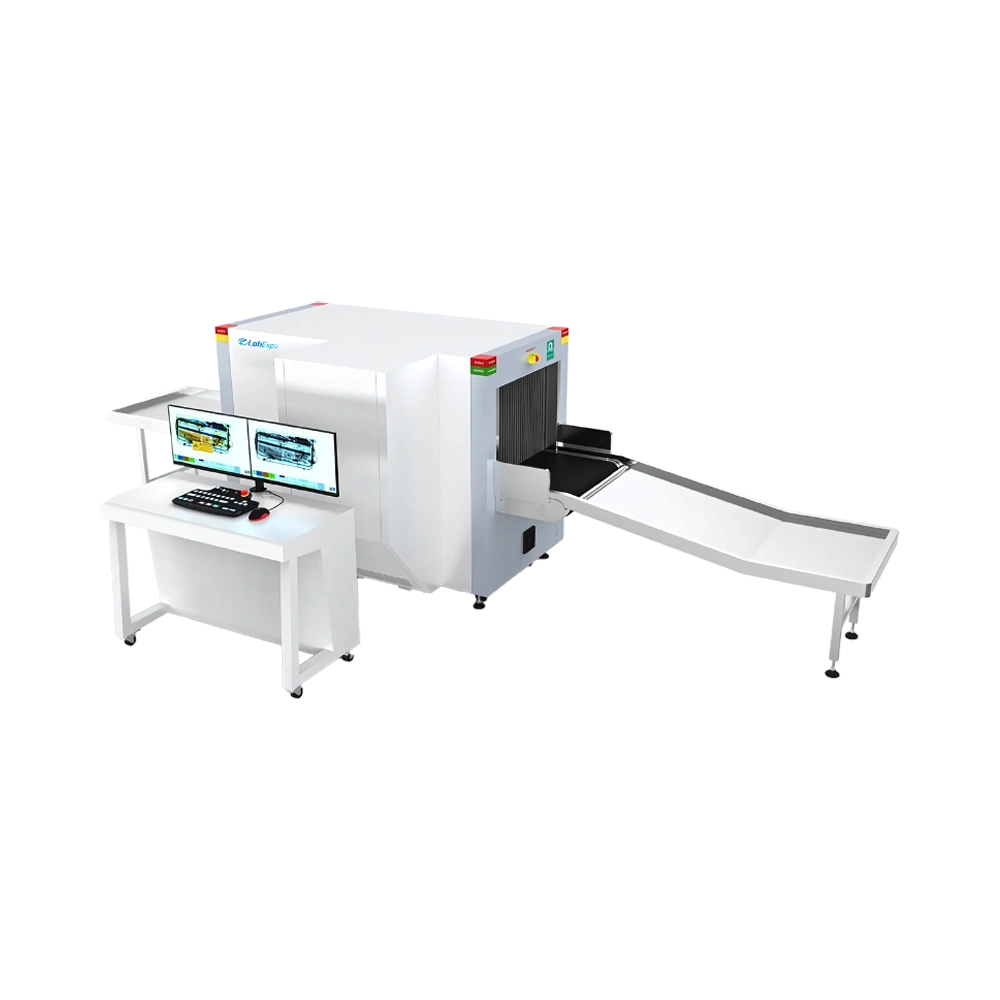

X-Ray Baggage Scanner LE-XBS301

X-Ray Baggage Scanner LE-XBS301

Lab Expo X-Ray Baggage Scanner LE-XBS301 is designed to handle a maximum load of 150 kg on the conveyor belt. It operates at a speed of around 0.2 m/s, ensuring smooth and steady movement of baggage. Equipped with multilingual operation support for user-friendly interface across diverse language preferences. Integrated with threat alert and material classification for better detection and screening. Our X-Ray Baggage Scanner is perfect for high-traffic areas requiring quick and accurate baggage and parcel inspection.

$45,360.00 $ 37800

X-Ray Baggage Scanner LE-XBS301 - Specifications

Conveyor Speed 0.2 m/s
Conveyor Max Load 150 Kg
Operation System Windows XP
Wire Resolution AWG38
Penetration Resolution AWG30
Energy Dual
Spatial Resolution Vertical: 0.8mm, Horizontal: 0.8mm
Grayscale and Mixture Resolution 1 to 60 mm
Organic Matter Resolution 1 to 120mm
Inorganic Object Resolution 0.2 to 14 mm
Penetration 36 mm
X-Ray Dosage Each Inspection ≤4.8 µSv
Boundary Leakage
S/N Ratio
Film Safety ASA/ISO1600 Film
Operation Temperature 5℃ to 40℃
Operation Humidity 0% to 90%
Storage Temperature -20℃ to 60℃
Storage Humidity 10% to 90%
Atmospheric Pressure 86 kPa to 106 kPa
Generator Two
X-Ray Generator 160KV, Oil Cooling, From Bottom to Top
Image Storage 50000 Images
Monitor 29 inch LED Screen, 2560 × 1080 Pixels
Operation Console Single Screen Console
Power Consumption 0.8 kW
Leakage Current ≤5.0 mA
Power Supply 220V (±10% to 15%), 50±3Hz
Tunnel Dimension 650 × 500 mm
Gross Weight 740 Kg

X-Ray Baggage Scanner LE-XBS301 - Key Features

  • Drug and explosive detection system with 0.8mm spatial resolution
  • Baggage counter with 50000 image storage capacity
  • Secure access key with ≤5.0 mA leakage current protection
  • Automatic test and self-diagnosis for dual energy X-ray generator

X-Ray Baggage Scanner LE-XBS301 - Applications

FunctionImplementation
Security screening zones150 Kg conveyor max load handles heavy baggage efficiently
High-traffic checkpoints0.2 m/s conveyor speed ensures steady baggage flow
Quality control facilities≤4.8 µSv X-Ray dosage per inspection maintains safety standards
Industrial security postsBoundary leakage <1 µSv/h limits radiation exposure during use
Airport cargo areasDual energy imaging detects organic and inorganic threats effectively

X-Ray Baggage Scanner LE-XBS301 - Standard Accessories

X-ray generator

Console with Monitor

Keyboard and Mouse

Extended table

Power Cable

Electric drum

X-Ray Baggage Scanner LE-XBS301 - Catalog


X-Ray Baggage Scanner LE-XBS301

X-Ray Baggage Scanner LE-XBS301


X-Ray Baggage Scanner LE-XBS301 FAQ's

1: What benefits does multilingual support provides in this model?

The multilingual interface enhances user accessibility and reduces training time, making it easy for operators from various regions to navigate and operate the system effectively.

2: How does the system ensure uninterrupted screening during power fluctuations?

These scanners come with an uninterruptable power supply, enabling continuous operation and preventing data loss during unexpected power outages.

3: How does the scanner enhance image analysis for operators?

They include a 29-inch high-resolution display, offering a wide and clear view for better detection of potential threats during baggage inspection.

4: How does the system support secure and efficient record management?

It has auto archiving and baggage counter features work together to provide systematic logging and tracking of scanned items, improving record accuracy and inspection traceability.

5: What makes the scanner suitable for busy public environments?

Our scanner combines a high conveyor load capacity, fast operation speed, and advanced threat detection features, ensuring efficient screening in high-traffic locations.

6: How do X-Ray Baggage Scanners detect concealed threats?

X-Ray Baggage scanners use dual-energy imaging technology that distinguishes materials by their atomic number, enabling the identification of organic, inorganic and metallic items even when concealed inside dense baggage or layered objects.

7: What role do advanced imaging sensors play in baggage scanning?

Advanced sensors capture subtle variations in object density and composition, producing high-contrast images that help operators identify concealed or overlapping items with greater accuracy.

8: What is enhanced zoom processing, and how does it help operators?

Enhanced zoom processing allows users to magnify specific sections of the scanned image without losing clarity or detail, enabling more precise inspection of small or suspicious objects.

9: What does non-intrusive inspection mean in X-Ray Baggage scanning?

Non-intrusive inspection refers to the ability to inspect the contents of baggage without opening or physically handling it. This is done using X-ray imaging to reveal concealed items while preserving privacy and efficiency.

10: How is non-intrusive inspection beneficial in high-security environments?

It allows for rapid, thorough screening of baggage without physical contact which improves processing speed, minimizes disruption and reduces the risk of tampering or contamination.
