Lab Expo Portable X-Ray Baggage Scanner LE-XBS306 offers a scanning speed of 6 seconds per bag for fast inspection. It delivers precise image quality to help identify threats and prohibited items effectively. Integrated conveyor belt system ensures smooth and uninterrupted baggage movement during scanning. Equipped with a user-friendly interface to simplify operation and reduce training time. Our Portable X-Ray Baggage Scanner is suitable for airports, public events, government buildings, and secure facility checkpoints.
$44,640.00 $ 37200
| Portable Computer | Dual-Core 1.8G or Above, RAM ≥ 4G, Hard Disk ≥ 500G |
| Tablet | Hard Disk ≥ 128G, Resolution ≥ 1920 × 1080 |
| Scanning Speed | 6 Seconds |
| X-Ray Tube Voltage | Domestic 120kV |
| X-Ray Tube Current | 0.5 mA to 1 mA |
| Penetrating Force | 30 mm Steel |
| Detector Spot Distance | 0.4 mm |
| Battery | High-capacity Lithium Battery |
| Penetrating Ability | 20 mm Steel or 120 mm Aluminium or 30 mm Steel or 140 mm Aluminium |
| Line Resolution | Can Distinguish 0.064 mm (42AWG)Copper Wire |
| Spatial Discrimination | 2.0 Line Pairs per mm |
| Imaging Area | 460mm × 650mm |
| Probe Box Thickness | 80 mm |
| Contrast Sensitivity | Approx. 0.5% |
| Image Gray Scale | 65536 (16 Bits) |
| X-Ray Machine Weight | 6.5 Kg |
| Detector Plate Weight | 10 Kg |
Function Implementation Airport security checkpoints 6 Seconds scanning speed enables rapid baggage throughput Public event screening Imaging Area 460mm × 650mm accommodates standard carry-on items Government building access Penetrating Ability 30 mm Steel detects concealed metallic threats Secure facility operations Dual-Core 1.8G Portable Computer supports real-time image processing Mobile inspection units X-Ray Tube Voltage Domestic 120kV ensures consistent penetration performance

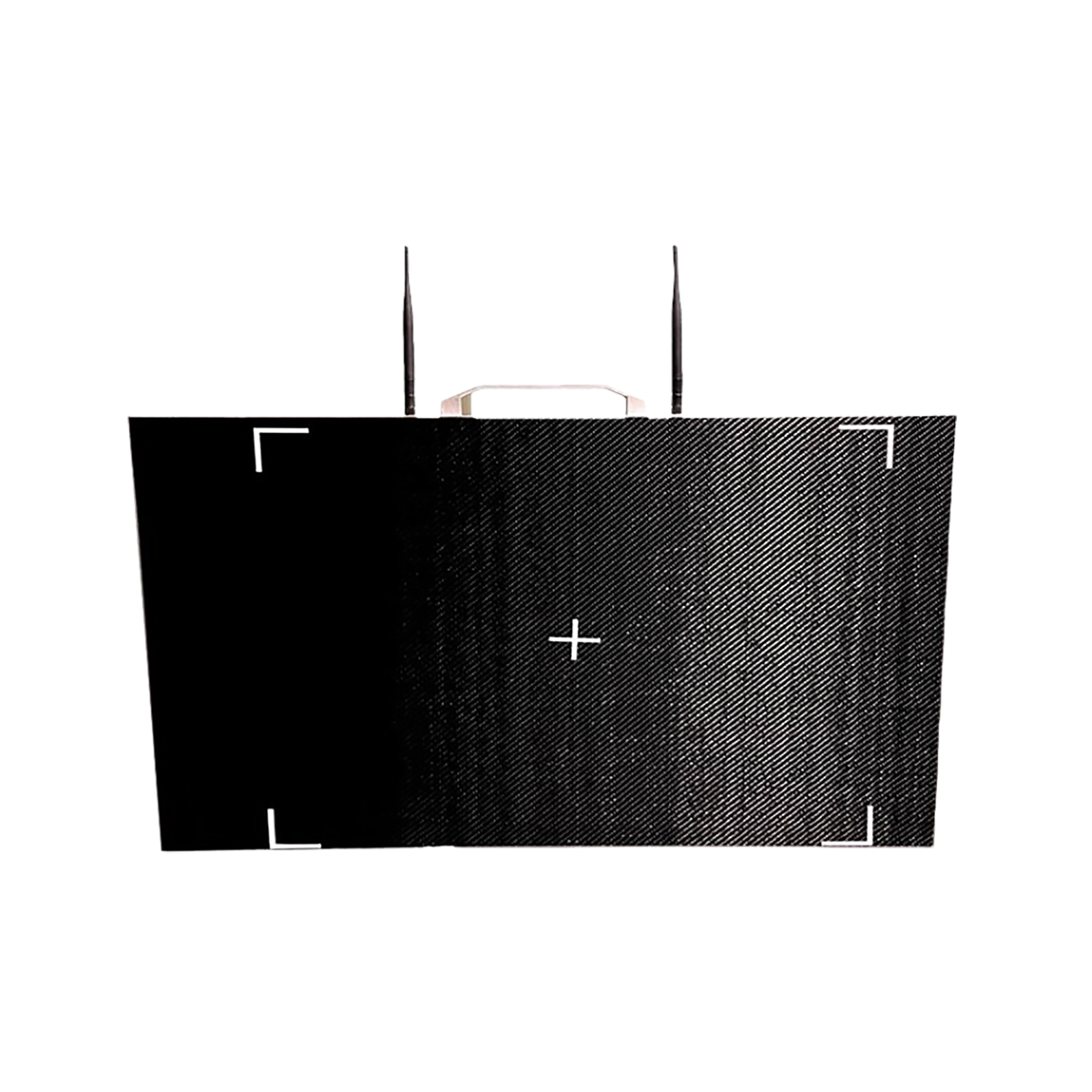

Detector

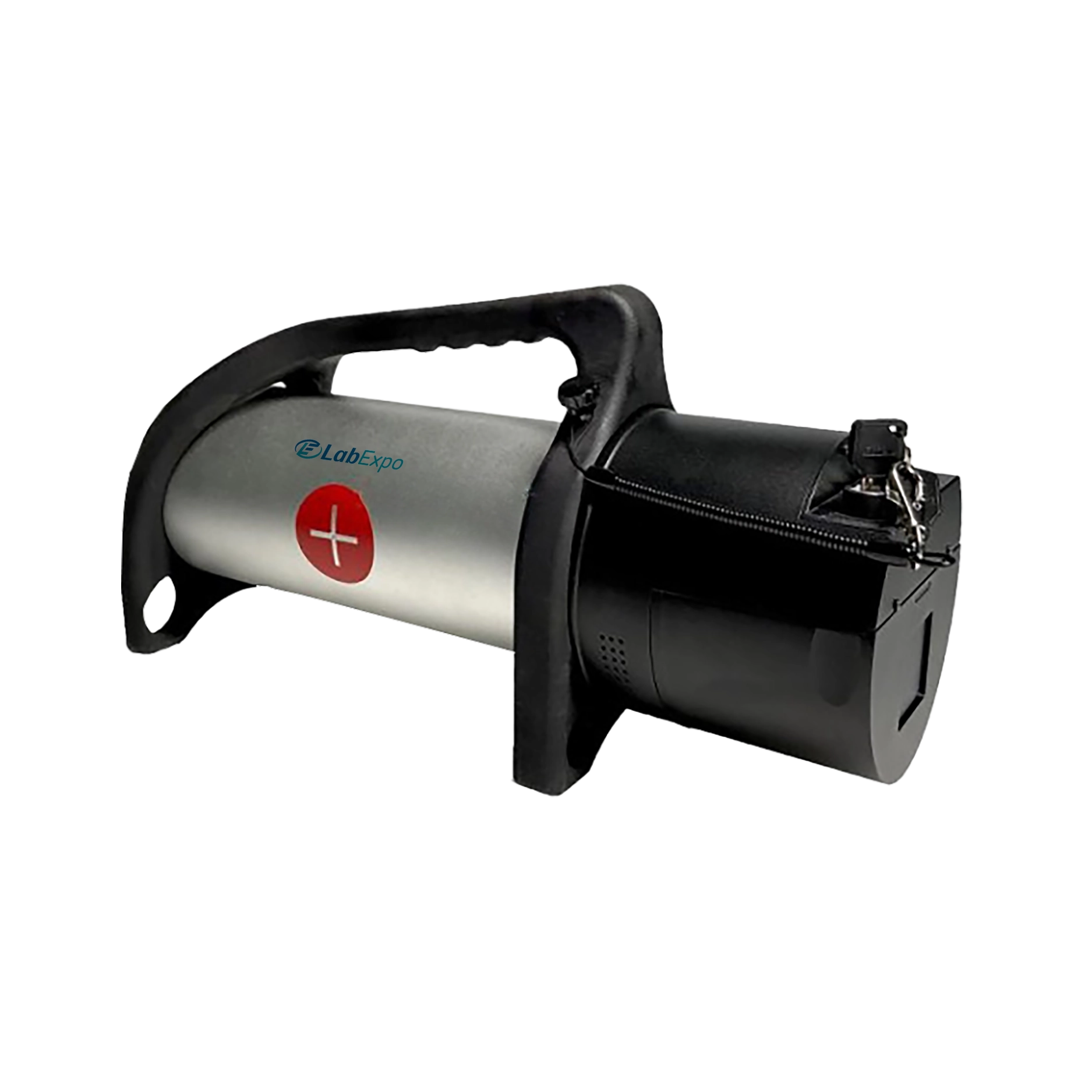

Optical
Data line
Power cable
Detector battery
Photocell battery
Detector charger
Optical charger
Detector stand laptop set
Instrument case
Lab Expo X-Ray Baggage Scanner units are designed for baggage screening and security inspection in airports, transportation hubs, and industrial facilities. Models support x ray scanner for baggage and x ray baggage inspection system applications with conveyor loads up to 250 kg, scanning speeds up to 0.22 m/s, and high-resolution imaging for security threat detection.
