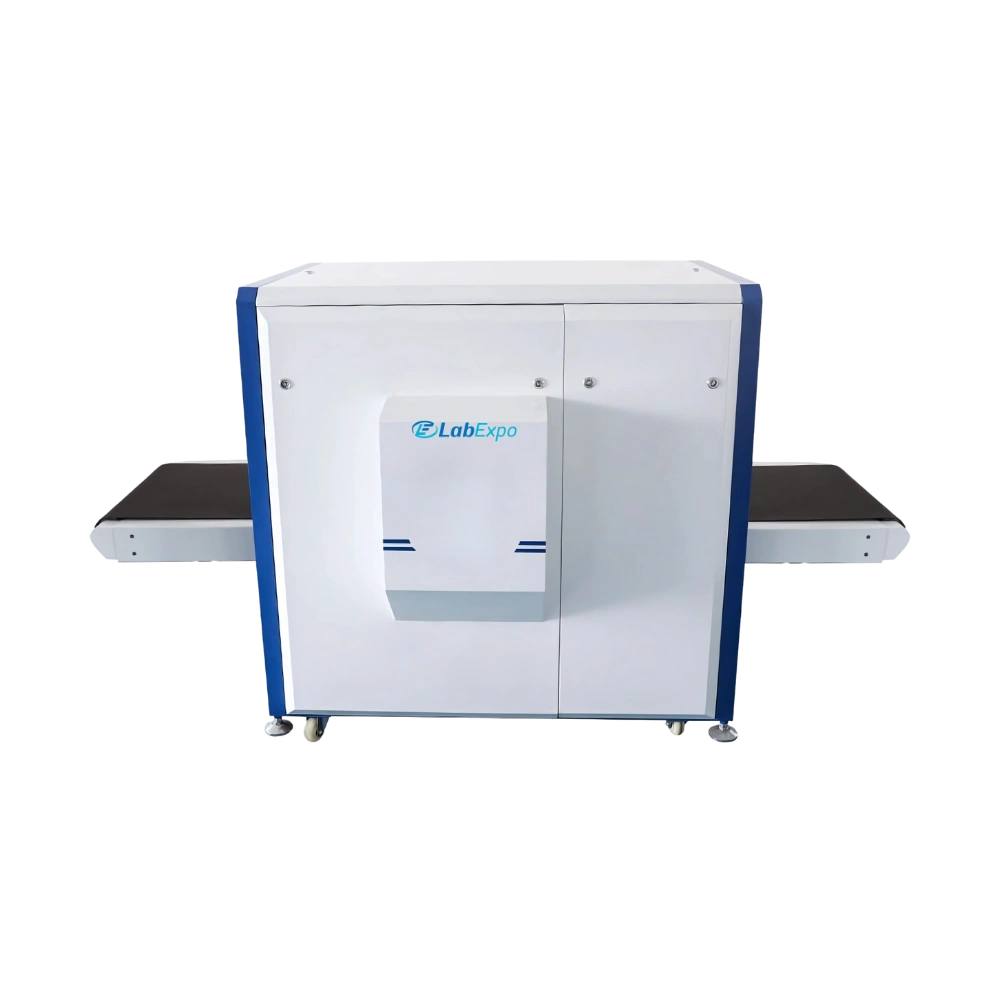

Lab Expo X-Ray Baggage Scanner LE-XBS405 is equipped with dual-view scanning technology for optimal object orientation identification. It provides a conveyor speed of 0.22m/s allowing efficient scanning. Designed to withstand harsh environments with temperature and humidity tolerance. Our X-Ray Baggage Scanner delivers high-definition scans, system stability and operational excellence in every inspection line.
$12,557.00 $ 10464
| Conveyor Speed | 0.22 m/s |
| Conveyor Maximum Load | 150 kg |
| Wire Resolution | AWG32 |
| Penetration | 34 mm Steel |
| X-Ray Sensor | L-Shaped Photo Diode Array |
| X-Ray Dose Per Inspection | < 1.5 µGy/kg |
| X-Ray Leakage | < 1µGy /h |
| Film Safety | ISO1600 |
| Operation Temperature | 0℃ to 45℃ |
| Operation Humidity | 20 to 95% |
| Storage Temperature | -20℃ to 60℃ |
| Storage Humidity | 20 to 95% |
| Image Storage | 50000 Images |
| Image Resolution | 1024 × 768 pixels |
| Monitor | 19-inch LCD screen |
| Power Consumption | 300 W |
| Power Supply | 220V, 50±3Hz |
| Tunnel Dimension | 650 × 500 mm |
| Net Weight | 500 kg |
| Gross Weight | 650 kg |
Function Implementation Airport security lanes 0.22 m/s conveyor speed enables efficient baggage flow Industrial facility entrances 150 kg conveyor load supports heavy package screening Government building checkpoints < 1 µGy/h X-ray leakage ensures operator safety Customs inspection points 34 mm steel penetration detects concealed threats Logistics hub operations 50000 image storage allows extended audit trails
1: What makes LE-XBS405 suitable for high-security zones?
The dual-view scanning system enables clear identification of concealed threats, enhancing accuracy during high-volume inspections.
2: How does the scanner ensure reliable operation in tough environments?
These scanners are designed to perform consistently under a wide range of temperature and humidity conditions without compromising image quality.
3: What imaging capabilities does the system offer?
They provide real-time high-resolution images that assist operators in quickly identifying potential threats with minimal manual adjustment.
4: How is data managed and stored during inspections?
The scanner includes built-in image storage and a data backup feature to ensure inspection records are retained securely and can be retrieved when needed.
5: Is there any protection against noise or operational disturbances?
Our X-Ray Baggage Scanner features noise-free running and smooth belt motion, reducing operator fatigue and maintaining quiet operation in controlled areas.
6: How do X-Ray Baggage Scanners detect concealed threats?
X-Ray Baggage scanners use dual-energy imaging technology that distinguishes materials by their atomic number, enabling the identification of organic, inorganic and metallic items even when concealed inside dense baggage or layered objects.
7: What role do advanced imaging sensors play in baggage scanning?
Advanced sensors capture subtle variations in object density and composition, producing high-contrast images that help operators identify concealed or overlapping items with greater accuracy.
8: What is enhanced zoom processing, and how does it help operators?
Enhanced zoom processing allows users to magnify specific sections of the scanned image without losing clarity or detail, enabling more precise inspection of small or suspicious objects.
9: What does non-intrusive inspection mean in X-Ray Baggage scanning?
Non-intrusive inspection refers to the ability to inspect the contents of baggage without opening or physically handling it. This is done using X-ray imaging to reveal concealed items while preserving privacy and efficiency.
10: How is non-intrusive inspection beneficial in high-security environments?
It allows for rapid, thorough screening of baggage without physical contact which improves processing speed, minimizes disruption and reduces the risk of tampering or contamination.
Lab Expo X-Ray Baggage Scanner units are designed for baggage screening and security inspection in airports, transportation hubs, and industrial facilities. Models support x ray scanner for baggage and x ray baggage inspection system applications with conveyor loads up to 250 kg, scanning speeds up to 0.22 m/s, and high-resolution imaging for security threat detection.
