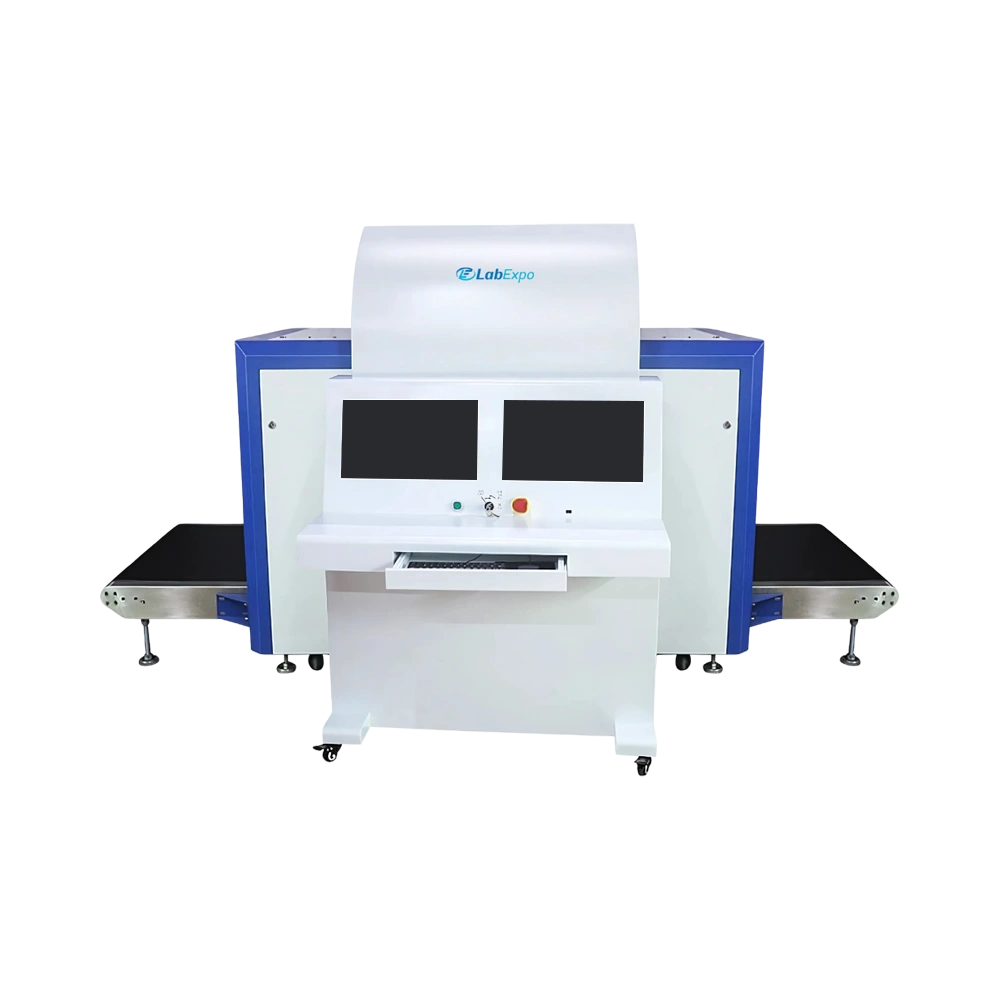

Lab Expo X-Ray Baggage Scanner LE-XBS501 is integrated with dual-view imaging to deliver precise object identification. It is equipped with image archiving system for continuous storage and recall of over 500000 images. Integrated with advanced zoom capabilities and edge enhancement for image clarity. This X-Ray Baggage Scanner is optimized for precise threat detection in transit hubs and high-security areas.
$26,496.00 $ 22080
| Conveyor Speed | 0.22 m/s |
| Conveyor Maximum Load | 200 kg |
| Conveyor Height | 300 mm |
| Wire Resolution | AWG32 |
| Penetration | 34 mm Steel |
| X-Ray Sensor | L-Shaped Photo Diode Array |
| X-Ray Dose Per Inspection | < 1.5 µGy/kg |
| X-Ray Leakage | < 1µGy /h |
| Film Safety | ISO1600 |
| Operation Temperature | 0℃ to 45℃ |
| Operation Humidity | 20 to 95% |
| Storage Temperature | -20℃ to 60℃ |
| Storage Humidity | 20 to 95% |
| Image Storage | 50000 Images |
| Image Resolution | 1024 × 768 pixels |
| Monitor | 19-inch LCD screen |
| Power Consumption | 300 W |
| Power Supply | 220V, 50±3Hz |
| Tunnel Dimension | 1000 × 800 mm |
| External Dimension | 4267 ×1590 × 1690 mm |
| Net Weight | 1000 kg |
| Gross Weight | 1200 kg |
Function Implementation Transit hub security 0.22 m/s conveyor speed enables continuous baggage flow High-throughput screening 34 mm steel penetration supports dense object inspection Secure image archiving 50000 images storage allows long-term evidence retention Radiation safety zones <1.5 µGy/kg dose per inspection minimizes exposure risk All-weather facilities -20℃ to 60℃ storage temperature ensures environmental resilience
1: What benefits does multi-angle imaging offer during inspections?
These imaging angles reduce blind spots, allowing better judgment of object shapes and materials inside luggage.
2: How does the scanner maintain efficiency during continuous operation?
This scanner uses real-time processing and low-noise operation to ensure stable performance during extended usage.
3: Does the scanner support automated threat identification?
They incorporate intelligent detection algorithms that highlight suspicious items for faster operator response.
4: How user-friendly is the scanner interface?
The 19-inch LCD monitor with high-resolution output and intuitive controls ensures ease of use and reduced training time.
5: Is the scanner suitable for deployment in noise-sensitive environments?
Our X-Ray Baggage Scanner features low-noise mechanisms, making it ideal for airports, diplomatic buildings, and secure offices requiring quieter operation.
6: How do X-Ray Baggage Scanners detect concealed threats?
X-Ray Baggage scanners use dual-energy imaging technology that distinguishes materials by their atomic number, enabling the identification of organic, inorganic and metallic items even when concealed inside dense baggage or layered objects.
7: What role do advanced imaging sensors play in baggage scanning?
Advanced sensors capture subtle variations in object density and composition, producing high-contrast images that help operators identify concealed or overlapping items with greater accuracy.
8: What is enhanced zoom processing, and how does it help operators?
Enhanced zoom processing allows users to magnify specific sections of the scanned image without losing clarity or detail, enabling more precise inspection of small or suspicious objects.
9: What does non-intrusive inspection mean in X-Ray Baggage scanning?
Non-intrusive inspection refers to the ability to inspect the contents of baggage without opening or physically handling it. This is done using X-ray imaging to reveal concealed items while preserving privacy and efficiency.
10: How is non-intrusive inspection beneficial in high-security environments?
It allows for rapid, thorough screening of baggage without physical contact which improves processing speed, minimizes disruption and reduces the risk of tampering or contamination.
Lab Expo X-Ray Baggage Scanner units are designed for baggage screening and security inspection in airports, transportation hubs, and industrial facilities. Models support x ray scanner for baggage and x ray baggage inspection system applications with conveyor loads up to 250 kg, scanning speeds up to 0.22 m/s, and high-resolution imaging for security threat detection.
