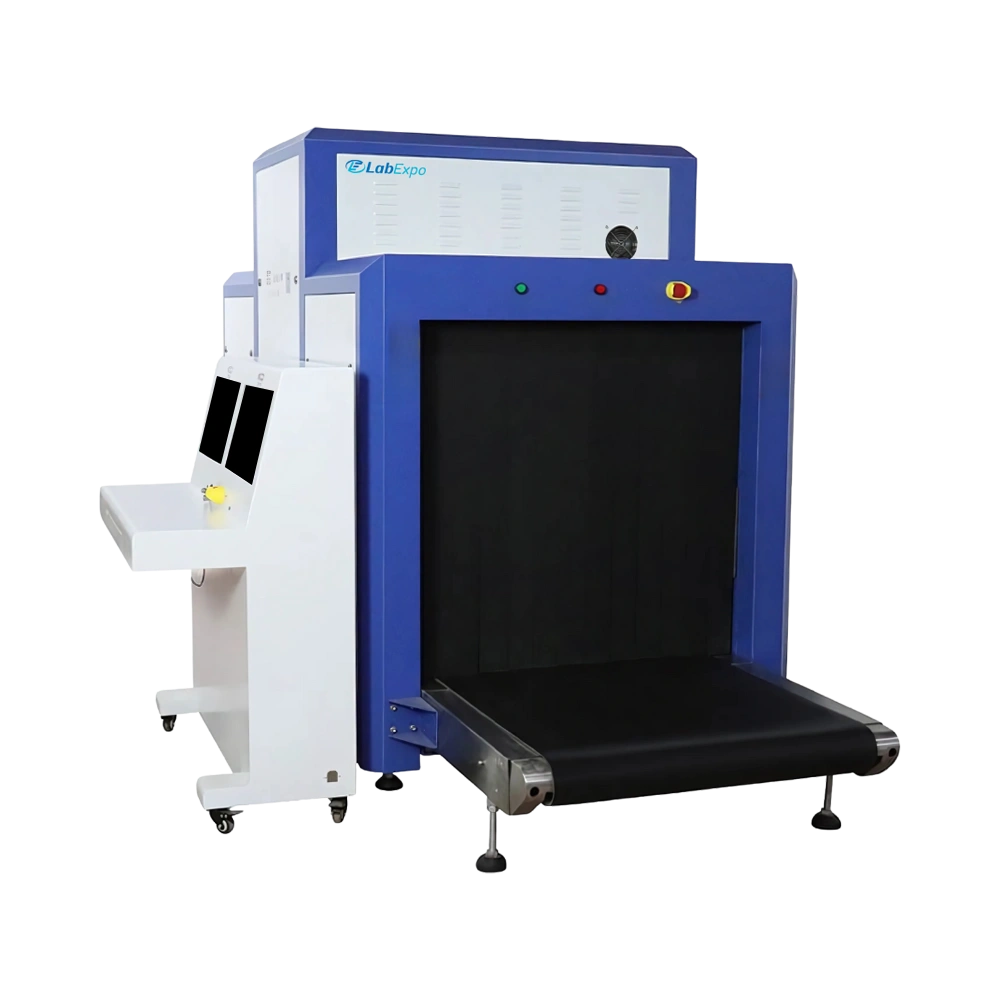

Lab Expo X-Ray Baggage Scanner LE-XBS502 is equipped with a large 1000 × 1000 mm tunnel to accommodate oversized baggage effortlessly. Built-in edge enhancement and image reversion tools provide clarity and accuracy in screening. Integrated with drug and explosive powder detection assistance for improved security outcomes. Our X-Ray Baggage Scanner ensures high-throughput and inspection across critical control points.
$14,861.00 $ 12384
| Conveyor Speed | 0.22 m/s |
| Conveyor Maximum Load | 250 kg |
| Conveyor Height | 300 mm |
| Wire Resolution | AWG32 |
| Penetration | 10 mm Steel |
| X-Ray Sensor | L-Shaped Photo Diode Array |
| X-Ray Dose Per Inspection | < 1.5 µGy/kg |
| X-Ray Leakage | < 1µGy /h |
| Film Safety | ISO1600 |
| Operation Temperature | 0℃ to 45℃ |
| Operation Humidity | 20 to 95% |
| Storage Temperature | -20℃ to 60℃ |
| Storage Humidity | 20 to 95% |
| Image Storage | 200000 Images |
| Image Resolution | 1024 × 768 pixels |
| Monitor | 19-inch LCD screen |
| Power Consumption | 300 W |
| Power Supply | 220V, 50±3Hz |
| Tunnel Dimension | 1000 × 1000 mm |
| Net Weight | 1130 kg |
| Gross Weight | 1220 kg |
Function Implementation Airport security checkpoints 1000 × 1000 mm tunnel accommodates oversized baggage Baggage handling facilities 250 kg conveyor maximum load supports heavy luggage screening High-traffic transit hubs 300 W power consumption enables continuous operation Customs inspection lanes < 1.5 µGy/kg X-ray dose per inspection ensures safety compliance Storage and logistics centers -20℃ to 60℃ storage temperature range protects equipment integrity
1: What advantage does the large tunnel offer?
These wide tunnel dimensions support smooth screening of bulky or oddly shaped baggage without repositioning.
2: How does the scanner manage stored scan data?
This scanner includes a centralized control panel with data backup and USB export to manage high volumes of image storage securely.
3: What role does the visual threat alert play?
They provide immediate on-screen alerts, helping operators quickly detect and respond to potential threats during inspection.
4: Can the scanner assist in substance detection like powders or narcotics?
It is designed to support detection of drugs and explosive powders through advanced imaging and material recognition.
5: Is this scanner effective in highly secured venues?
Our X-Ray Baggage Scanner has high throughput, detection tools, and visual clarity make it a reliable choice for embassies, power stations, and customs checkpoints.
6: How do X-Ray Baggage Scanners detect concealed threats?
X-Ray Baggage scanners use dual-energy imaging technology that distinguishes materials by their atomic number, enabling the identification of organic, inorganic and metallic items even when concealed inside dense baggage or layered objects.
7: What role do advanced imaging sensors play in baggage scanning?
Advanced sensors capture subtle variations in object density and composition, producing high-contrast images that help operators identify concealed or overlapping items with greater accuracy.
8: What is enhanced zoom processing, and how does it help operators?
Enhanced zoom processing allows users to magnify specific sections of the scanned image without losing clarity or detail, enabling more precise inspection of small or suspicious objects.
9: What does non-intrusive inspection mean in X-Ray Baggage scanning?
Non-intrusive inspection refers to the ability to inspect the contents of baggage without opening or physically handling it. This is done using X-ray imaging to reveal concealed items while preserving privacy and efficiency.
10: How is non-intrusive inspection beneficial in high-security environments?
It allows for rapid, thorough screening of baggage without physical contact which improves processing speed, minimizes disruption and reduces the risk of tampering or contamination.
Lab Expo X-Ray Baggage Scanner units are designed for baggage screening and security inspection in airports, transportation hubs, and industrial facilities. Models support x ray scanner for baggage and x ray baggage inspection system applications with conveyor loads up to 250 kg, scanning speeds up to 0.22 m/s, and high-resolution imaging for security threat detection.
