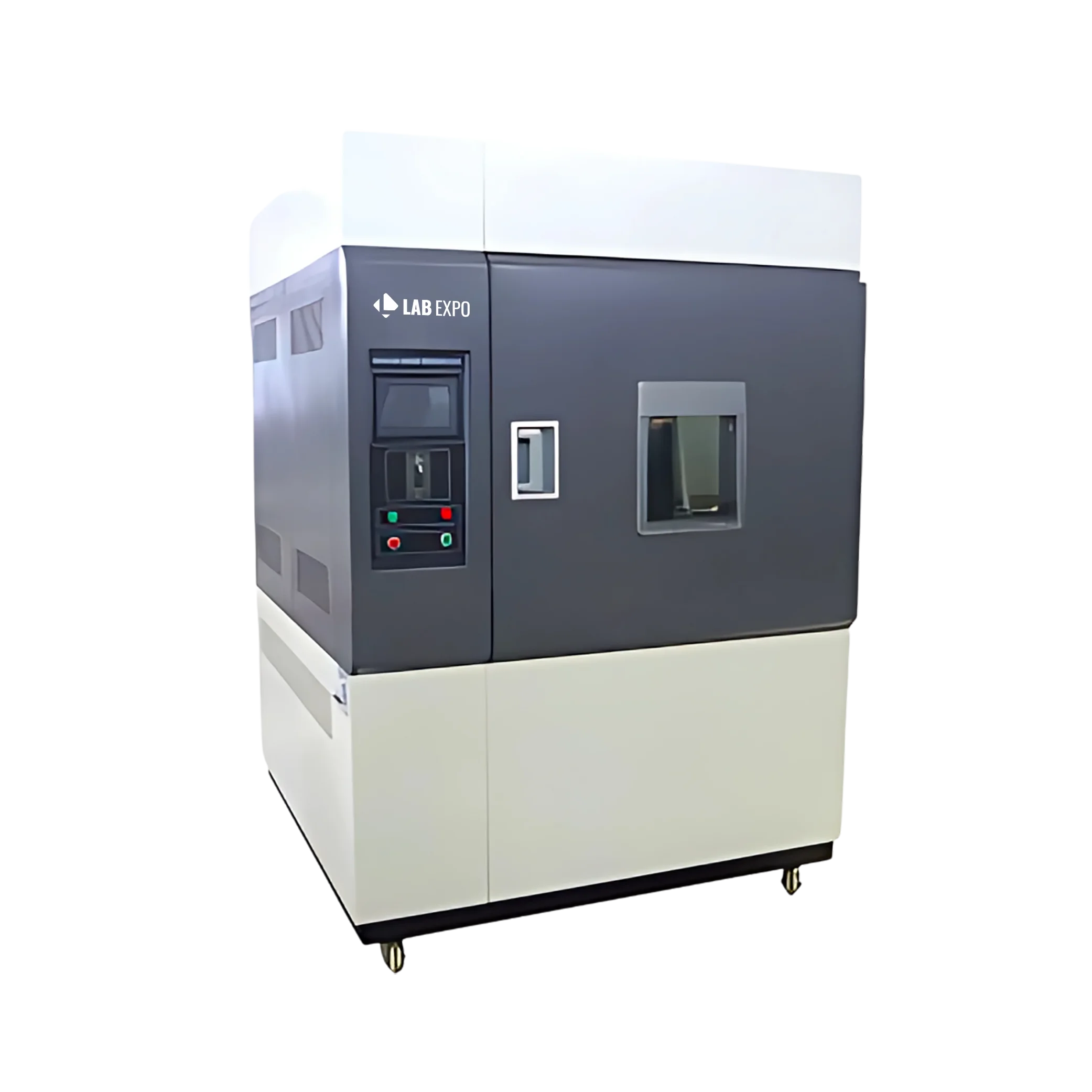

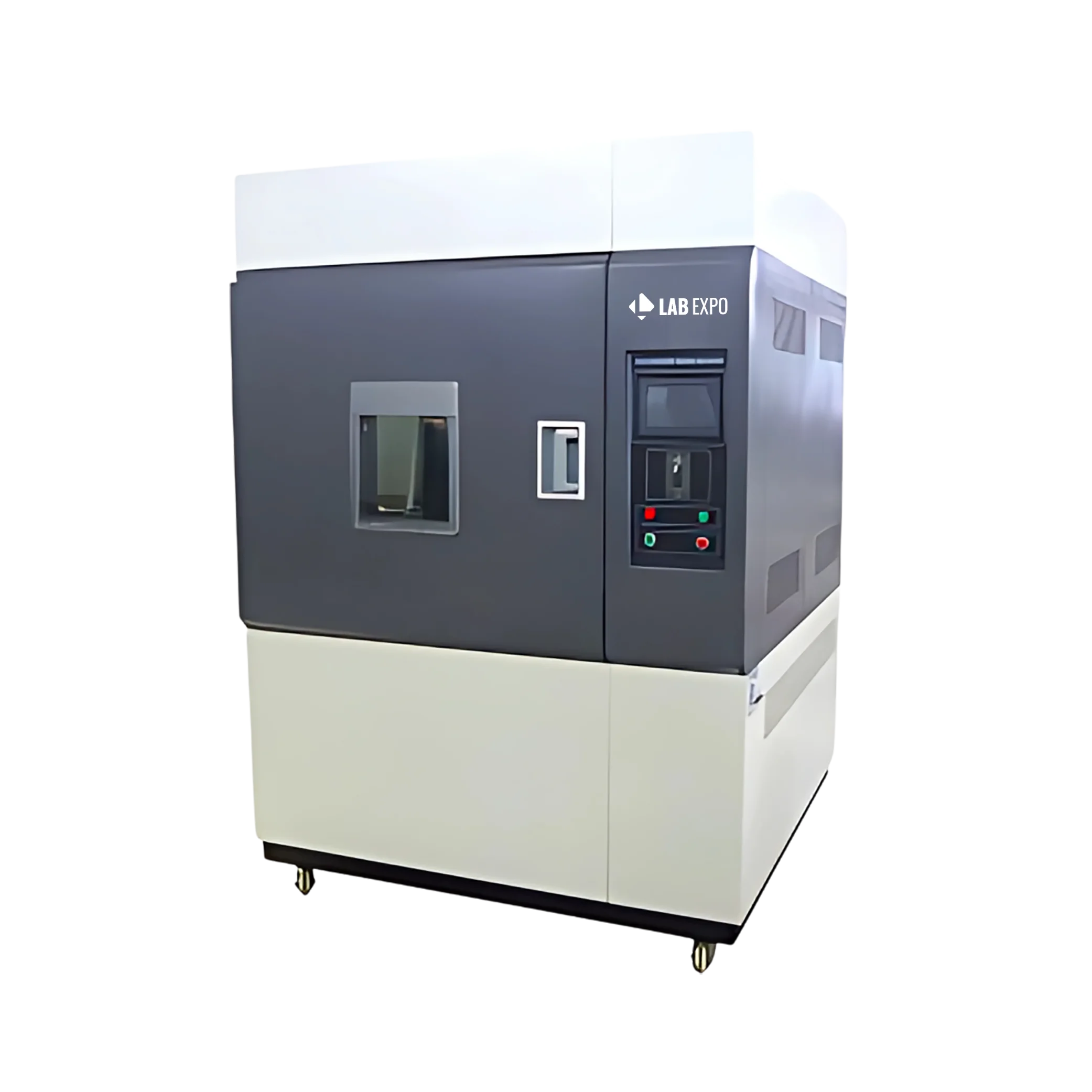

Xenon Test Chamber 24-XTC100

Lab Expo Xenon Test Chamber 24-XTC100 delivers optimum test results for weather aging tests in various industries. By controlling the irradiance of light within the test position and weather-type it provides a stimulation of natural ecological condition necessary to test different resistant properties of the material with respect to aging test.

$33,883.00 $ 28236

Xenon Test Chamber 24-XTC100 - Specifications

Bandwidth Measurement 280 to 800 nm
Specimen Capacity 28 pcs
Specimen holder size 80 × 15 mm
Chamber Temperature Range Ambient to 100 ℃ ± 2 °C
Irradiation Source 1 piece of 6500 W water-cooled Xenon Lamp with inner quartz and outer borosilicate filter
Irradiance 100 to 1200 W/㎡
Black Panel Temperature BPT 35 to 85 ℃ ± 2 °C
Average Lamp Life 1600 hours
Relative Humidity Range 50 to 98 % R.H ± 5 % RH
Water Spray cycle 1 to 9999 Hr 59 M, adjustable
Internal dimensions 500 × 760 × 500 mm
Overall dimensions 1200 × 1150 × 1480 mm
Power Supply AC 380 V 50 Hz

Xenon Test Chamber 24-XTC100 - Key Features

  • 1 piece of 6500 W water-cooled Xenon Lamp with inner quartz and outer borosilicate filter
  • Ultrasonic humidifier and dehumidification system for accurate stable humidity test
  • Coloured LCD screen display with digital graphics and animation monitoring modes
  • Provision to adjust light intensity across full operational range

Xenon Test Chamber 24-XTC100 - Applications

FunctionImplementation
Weathering test labs100 to 1200 W/㎡ irradiance enables precise material aging simulation
Accelerated exposure testing50 to 98 % R.H ± 5 % RH controls humidity for environmental stress
UV radiation analysisBandwidth Measurement 280 to 800 nm supports spectral evaluation of materials
Thermal cycling validationChamber Temperature Range Ambient to 100 ℃ ± 2 °C facilitates temperature effect studies
Long-duration exposure cyclesWater Spray cycle adjustable from 1 to 9999 Hr allows extended test periods

Xenon Test Chamber 24-XTC100 - Catalog

Xenon Test Chamber 24-XTC100 Catalog

Related Xenon Test Chamber

Lab Expo Xenon Test Chamber enables accurate accelerated weathering evaluation using full-spectrum xenon illumination to simulate natural sunlight exposure. Designed for xenon arc testing, it supports controlled regulation of temperature and humidity with real-time parameter monitoring. Durable build, LCD-based control, and stable light output allow repeatable aging analysis for plastics, coatings, textiles, and packaging materials in research and industrial testing workflows.
