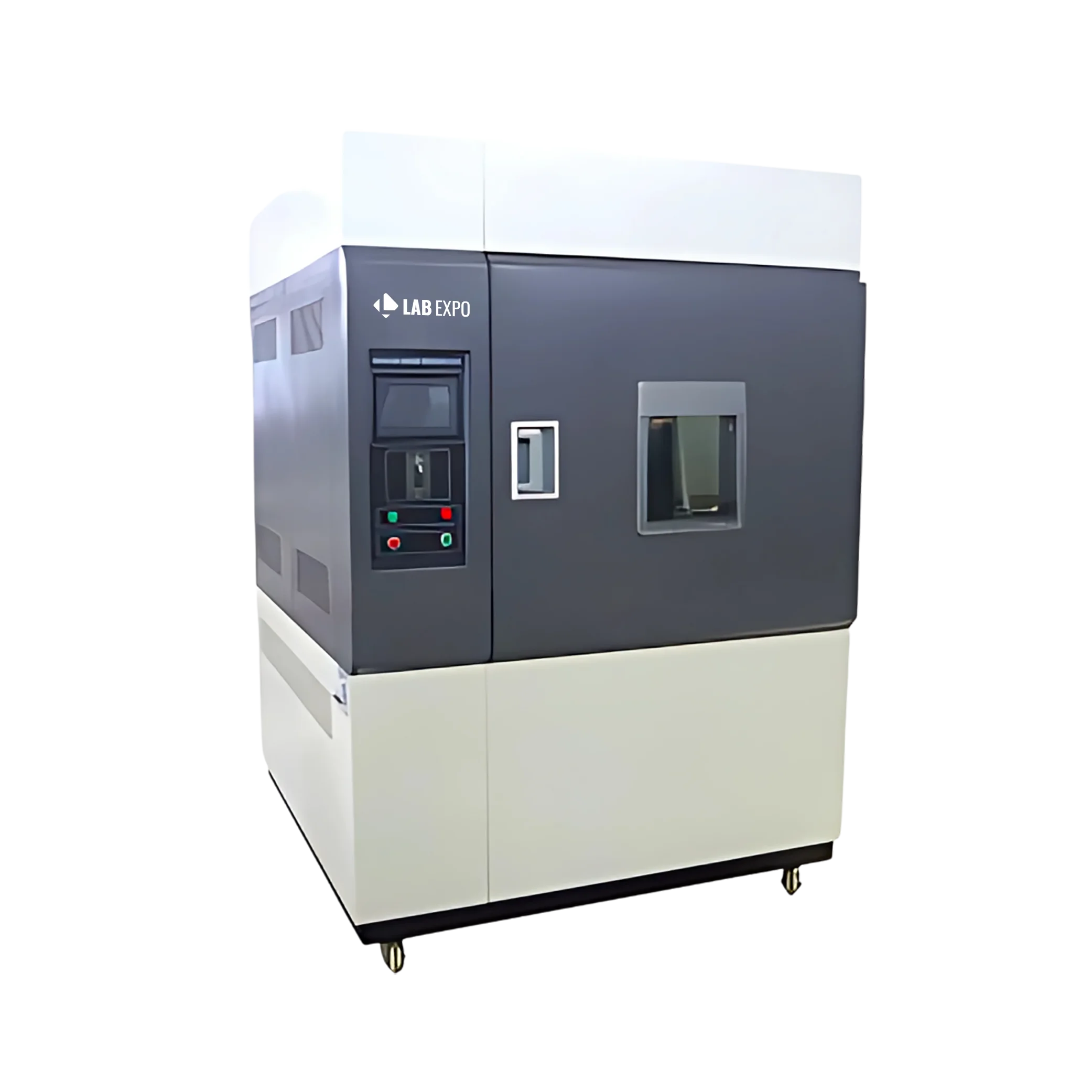

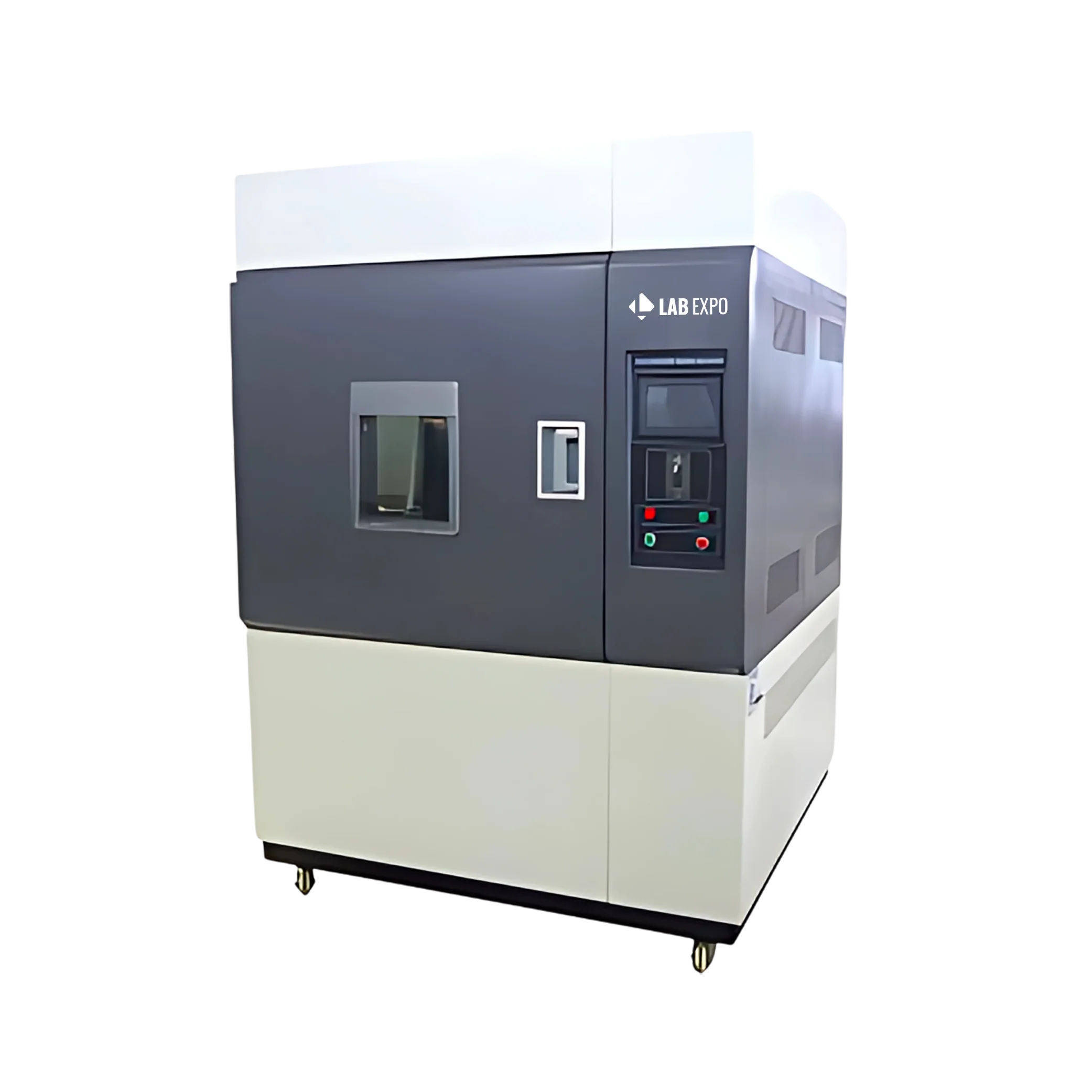

Xenon Test Chamber 24-XTC101

Lab Expo Xenon Test Chamber 24-XTC101 delivers optimum test results for weather aging test in various industries. By controlling the irradiance of light within the test position and weather-type it provides a stimulation of natural ecological condition necessary to test different resistant properties of the material with respect to aging test.

$39,643.00 $ 33036

Xenon Test Chamber 24-XTC101 - Specifications

Bandwidth Measurement 300 to 420 nm
Specimen Capacity 34 pcs
Specimen holder size 80 × 15 mm
Chamber Temperature Range Ambient to 100 ℃ ± 2 °C
Irradiation Source 1 piece of 6500 W water-cooled Xenon Lamp with inner quartz and outer borosilicate filter
Irradiance 35 to 150 W/㎡
Black Panel Temperature BPT 35 to 85 ℃ ± 2 °C
Average Lamp Life 1600 hours
Relative Humidity Range 50 to 98 % R.H ± 5 % RH
Water Spray cycle 1 to 9999 Hr 59 M, adjustable
Internal dimensions 950 × 950 × 850 mm
Overall dimensions 1300 × 1420 × 1800 mm
Power Supply AC 380 V 50 Hz

Xenon Test Chamber 24-XTC101 - Key Features

  • Ultrasonic humidifier and dehumidification system for stable humidity control
  • Chamber temperature range Ambient to 100C with ±2C accuracy
  • Black Panel Temperature BPT 35 to 85C ±2C precision
  • Relative Humidity Range 50 to 98% RH ±5% RH tolerance
  • Bandwidth Measurement 300 to 420 nm spectral range

Xenon Test Chamber 24-XTC101 - Applications

FunctionImplementation
Material weathering tests35 to 150 W/㎡ irradiance enables controlled exposure simulation
UV resistance evaluation300 to 420 nm bandwidth measurement supports spectral analysis
Humidity-conditioned aging50 to 98 % R.H ± 5 % RH maintains precise moisture environments
Thermal cycling validationAmbient to 100 ℃ ± 2 °C Chamber Temperature Range allows repeated thermal shifts
Extended duration testingWater Spray cycle adjustable up to 9999 Hr 59 M permits prolonged exposure runs

Xenon Test Chamber 24-XTC101 - Catalog

Xenon Test Chamber 24-XTC101 Catalog

Related Xenon Test Chamber

Lab Expo Xenon Test Chamber enables accurate accelerated weathering evaluation using full-spectrum xenon illumination to simulate natural sunlight exposure. Designed for xenon arc testing, it supports controlled regulation of temperature and humidity with real-time parameter monitoring. Durable build, LCD-based control, and stable light output allow repeatable aging analysis for plastics, coatings, textiles, and packaging materials in research and industrial testing workflows.
