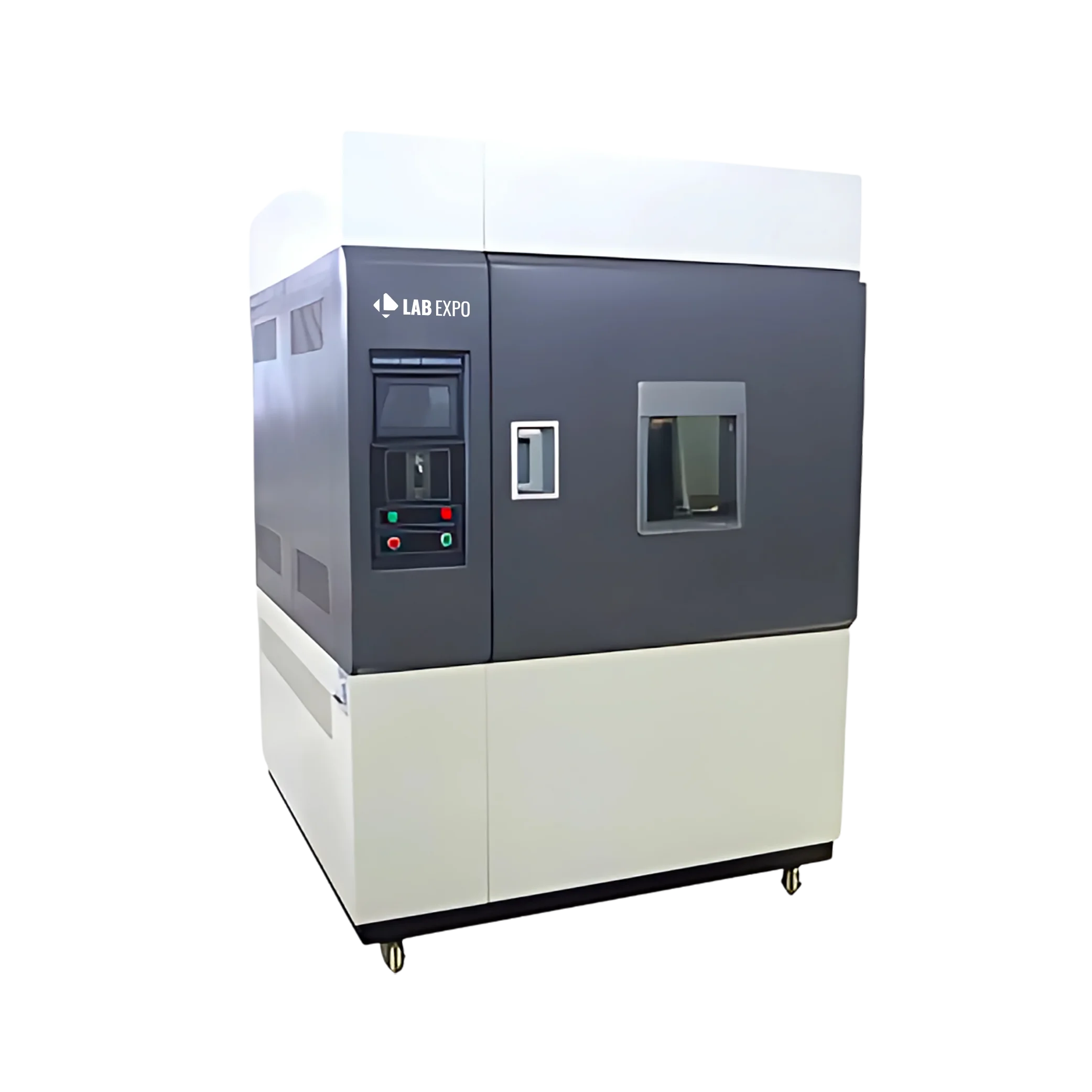

Xenon Test Chamber 24-XTC102

Xenon Test Chamber 24-XTC102 supports climate aging test, polymer fixing test with respect to light resistance. With the help of ecological stimulation such as rain, humidity, temperature control and light (Xenon arc lamp to stimulate destructive waves for diverse environment) a large spectrum of environmental conditions-based aging of materials can be tested.

$33,883.00 $ 28236

Xenon Test Chamber 24-XTC102 - Specifications

Bandwidth Measurement 280 to 800 nm
Specimen Capacity 28 pcs
Specimen holder size (mm) 80 × 15
Chamber Temperature Range Ambient to 100 ℃ ± 2 °C
Irradiation Source 1 piece of 6500 W water-cooled Xenon Lamp with inner quartz and outer borosilicate filter
Irradiance 100 to 1200 W/㎡
Black Panel Temperature BPT 35 to 85 ℃ ± 2 °C
Average Lamp Life 1600 hours
Relative Humidity Range 50 to 98 % R.H ± 5 % RH
Water Spray cycle 1 to 9999 Hr 59 M, adjustable
Internal dimensions 500 × 760 × 500 mm
Overall dimensions 1200 × 1150 × 1480 mm
Power Supply AC 380 V 50 Hz

Xenon Test Chamber 24-XTC102 - Key Features

  • Micro computer based temperature and humidity controller is used Xenon arc lamp is used to simulate full sunlight spectrum
  • Equipped with 1 Water Cooled xenon arc lamp with inner quartz and outer borosilicate filter
  • User friendly and efficient
  • Comprises of ultrasonic humidifier and dehumidification system to ensure accurate and stable humidity test
  • Simulate daylight spectrum
  • Environment friendly Refrigerant R404A
  • Automatic water supply, water purification system, water saving
  • Coloured LCD screen display with different test monitoring mode namely, digital, graphics and animation
  • Provision to adjust light intensity

Xenon Test Chamber 24-XTC102 - Applications

Xenon Test Chamber 24-XTC102 is used for various industries such as plastics, paints, rubber, automobiles, motorcycles, petrochemicals and textile products etc.

Xenon Test Chamber 24-XTC102 - Catalog

Xenon Test Chamber 24-XTC102 Catalog

Related Xenon Test Chamber

Lab Expo Xenon Test Chamber enables accurate accelerated weathering evaluation using full-spectrum xenon illumination to simulate natural sunlight exposure. Designed for xenon arc testing, it supports controlled regulation of temperature and humidity with real-time parameter monitoring. Durable build, LCD-based control, and stable light output allow repeatable aging analysis for plastics, coatings, textiles, and packaging materials in research and industrial testing workflows.
