Xenon Test Chamber 24-XTC103
Product1
Product2

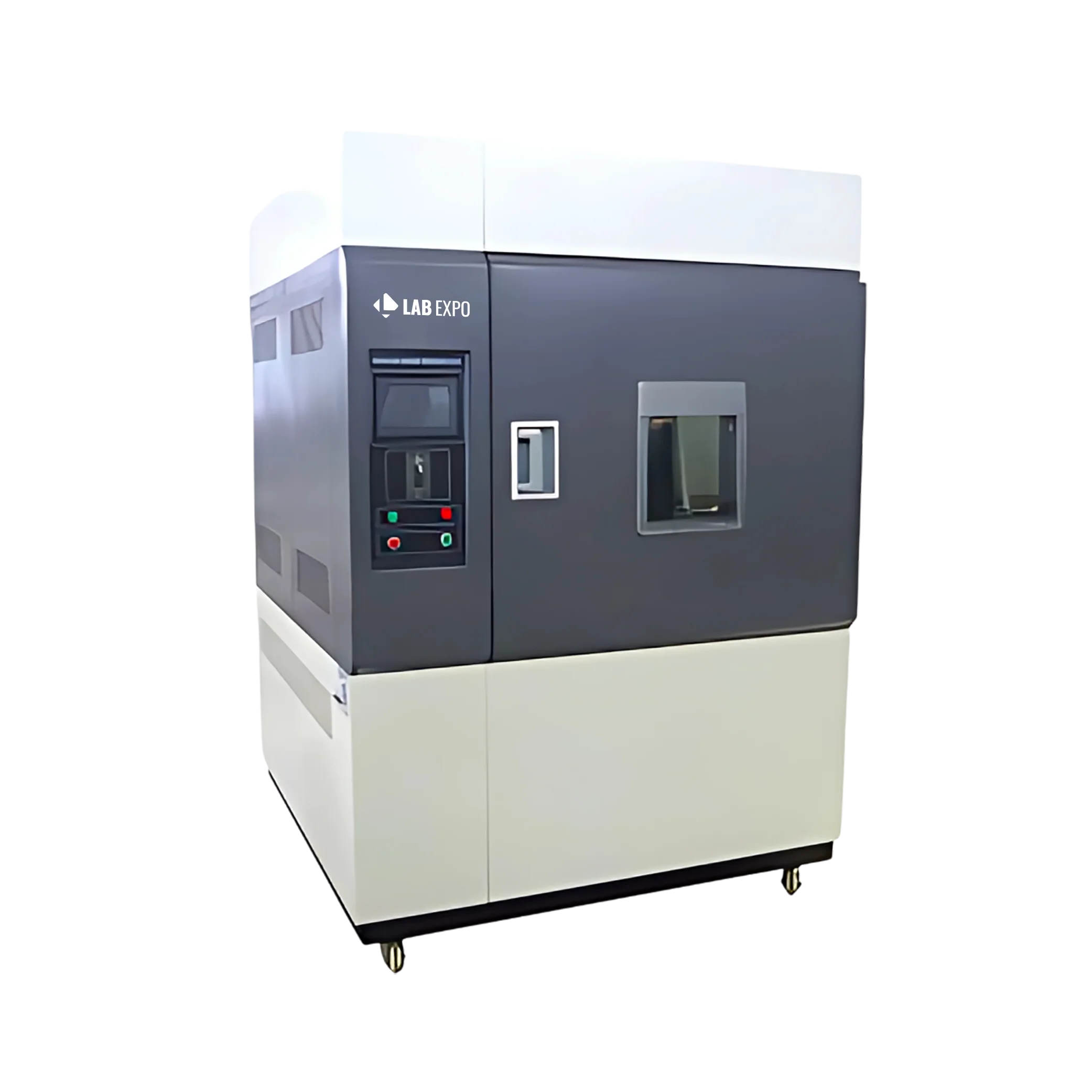

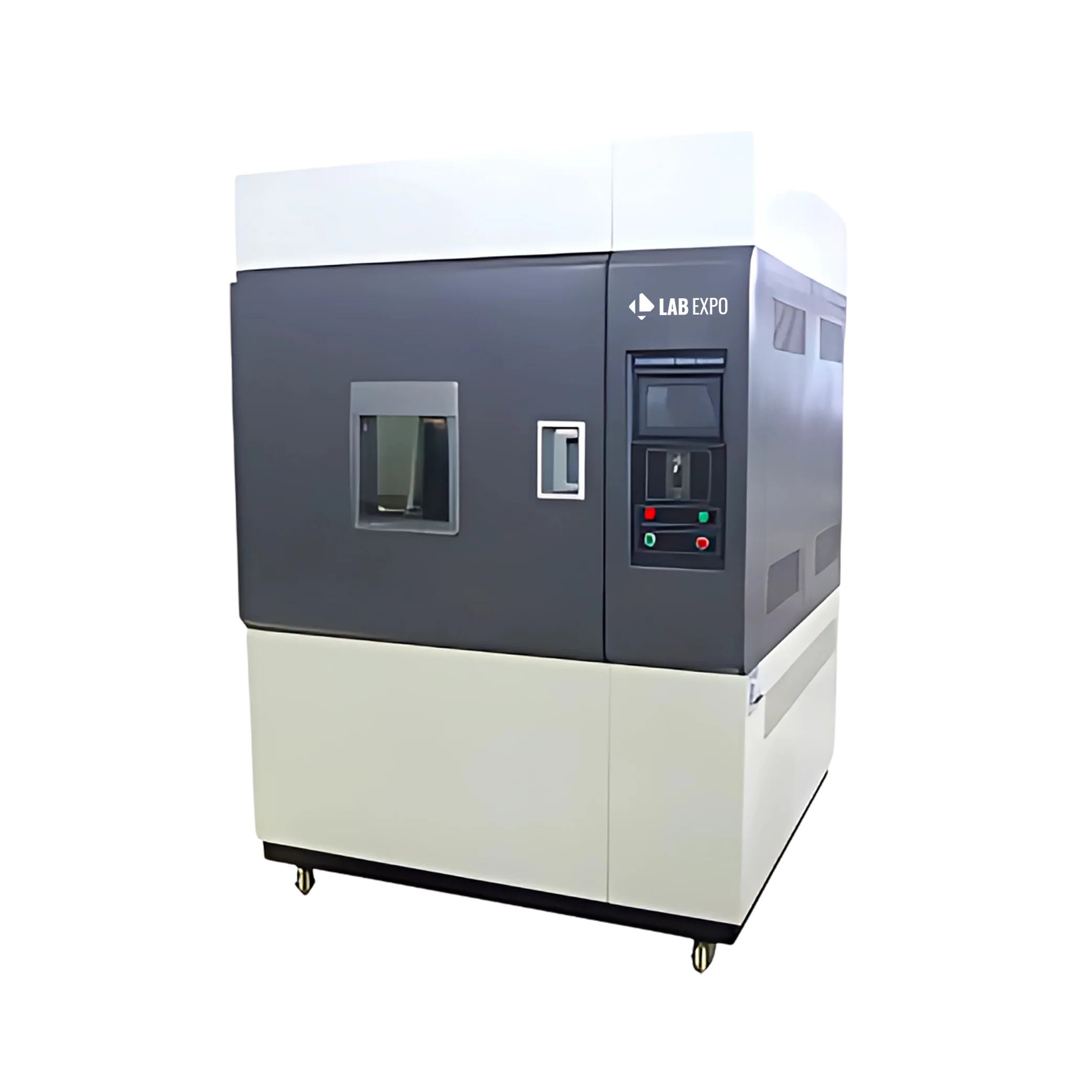

Xenon Test Chamber 24-XTC103

Lab Expo Xenon Test Chamber 24-XTC103 supports climate aging test, polymer fixing test with respect to light resistance. With the help of ecological stimulation such as rain, humidity, temperature control and light (Xenon arc lamp to stimulate destructive waves for diverse environment) a large spectrum of environmental conditions-based aging of materials can be tested.

$39,643.00 $ 33036

Xenon Test Chamber 24-XTC103 - Specifications

Bandwidth Measurement 300 to 420 nm
Specimen Capacity 34 pcs
Specimen holder size 80 × 15 mm
Chamber Temperature Range Ambient to 100 ℃ ± 2 °C
Irradiation Source 1 piece of 6500 W water-cooled Xenon Lamp with inner quartz and outer borosilicate filter
Irradiance 35 to 150 W/㎡
Black Panel Temperature BPT 35 to 85 ℃ ± 2 °C
Average Lamp Life 1600 hours
Relative Humidity Range 50 to 98 % R.H ± 5 % RH
Water Spray cycle 1 to 9999 Hr 59 M, adjustable
Internal dimensions 950 × 950 × 850 mm
Overall dimensions 1300 × 1420 × 1800 mm
Power Supply AC 380 V 50 Hz

Xenon Test Chamber 24-XTC103 - Key Features

  • One water-cooled xenon lamp with quartz and borosilicate filter included
  • Ultrasonic humidifier and dehumidification system maintains stable RH control
  • LCD screen displays digital graphics and animation modes for monitoring
  • Light intensity adjustable across operational range for customized testing
  • Water supply includes automatic purification and conservation mechanisms

Xenon Test Chamber 24-XTC103 - Applications

FunctionImplementation
Climate aging testsAmbient to 100 ℃ ± 2 °C enables precise thermal exposure control
Polymer light resistance35 to 150 W/㎡ irradiance simulates solar radiation intensity
Humidity cycling studies50 to 98 % R.H ± 5 % RH supports moisture-conditioned aging
Rain simulation testingWater Spray cycle: 1 to 9999 Hr 59 M allows programmable wet cycles
Material durability assessmentSpecimen Capacity: 34 pcs facilitates batch sample evaluation

Xenon Test Chamber 24-XTC103 - Catalog

Xenon Test Chamber 24-XTC103 Catalog

Related Xenon Test Chamber

Lab Expo Xenon Test Chamber enables accurate accelerated weathering evaluation using full-spectrum xenon illumination to simulate natural sunlight exposure. Designed for xenon arc testing, it supports controlled regulation of temperature and humidity with real-time parameter monitoring. Durable build, LCD-based control, and stable light output allow repeatable aging analysis for plastics, coatings, textiles, and packaging materials in research and industrial testing workflows.
