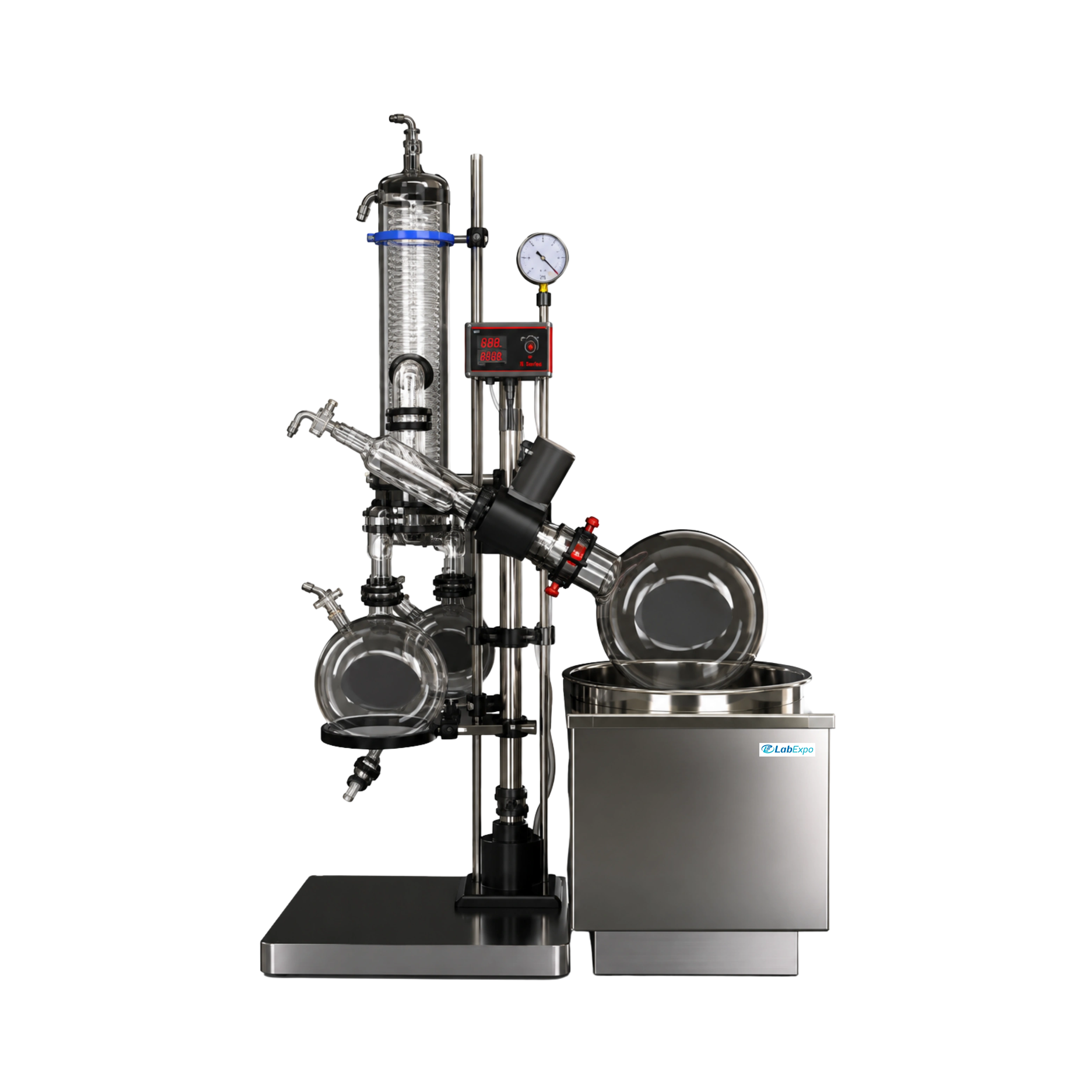

Rotary Evaporator LRE-A13 is a high quality rotary evaporator to meet the distillation needs of laboratory applications. Its optimized bath volume allows for fast heat-up and the condenser has glass tubes that utilize the 15000 cm² surface extremely efficiently. It is crafted for minimal space requirement and is integrated with heating bath, automatic motorized lift and bottom discharge receiving flask making it ideal for even complex distillation processes. This model of rotary evaporator delivers reliable and reproducible process results that are usually reserved for far more costly systems.
Price: $8628
| Evaporating Flask | 50 L / F 125 |
| Optional evaporating flask | 20 L + 10 L , bottom discharge |
| Condensing surface | 1.5 m2 |
| Max evaporating speed ( H2O ) | 10 L / hr. |
| Lifting type | Automatic Lifting |
| Condenser Type | Vertical condenser |
| Rotation Speed | 3 – 110 rpm |
| Reachable vacuum rate | < 133 Pa |
| Bath Power | 9 kW |
| Heating power | 9000 W |
| Rotation power | 400 W |
| Static temperature control range and wave | RT – 99 °C , 150 °C ± 2 °C |
| Bath size capacity | 70 L |
| Material | SUS 304 |
| Certifications | ISO and CE |
| Power | 220 V / 60 Hz |
| Dimensions | 1300 x 800 x 2300 mm |
Touch screen LCD display for smooth user control
Receiving flask equipped with bottom discharge
Solvent resistant PTFE vacuum seal
Motorized lift
Cooling surface of 1500 cm2
Durable glass charging valve
Automated water bath filling
Anti-corrosion cork preventing contamination of solvent
Frequency conversion speed controller
Bumping tube to prevent unexpected solution into receiving flask
Wearable and anti-corrosion sealing system
Safety control circuits
Easy , safe and user friendly operation
ISO and CE certified
Used for flavor extraction in food industry, solvent removal in separation and recycling chemical / educational / fuel / environmental industry , to determine sample concentration , HPLC and natural product sample preparation , drying down powders (using test tube adapter) and trapping hazardous waste liquid
| Model No. | LRE-A13 |
| PTFE rotary seal assembly | Have |
| PTFE discharge valve | PTFE |
| Digital Display | Bath Temperature , Rotation speed |
| Taper joint PTFE sleeve | Have |
| Vacuum gauge | Have |
| Continuous receiving | Have |
| Bumping system | Have |
| Charging valve | Glass |
| Water bath lid | Optional |
| Cold trap protection system | Optional |
| Thermometer neck for vapor | Optional |
| Evaporating flask unload handler | Optional |
| Ex proof motor | Optional |
| Overall flange joints | Have |
| Frequency conversion speed controls | Have |
| Throttle valve for vacuum | Have |
| Optional evaporating flask ( baffles on request ) | 10 L, 20 L , 30 L |
