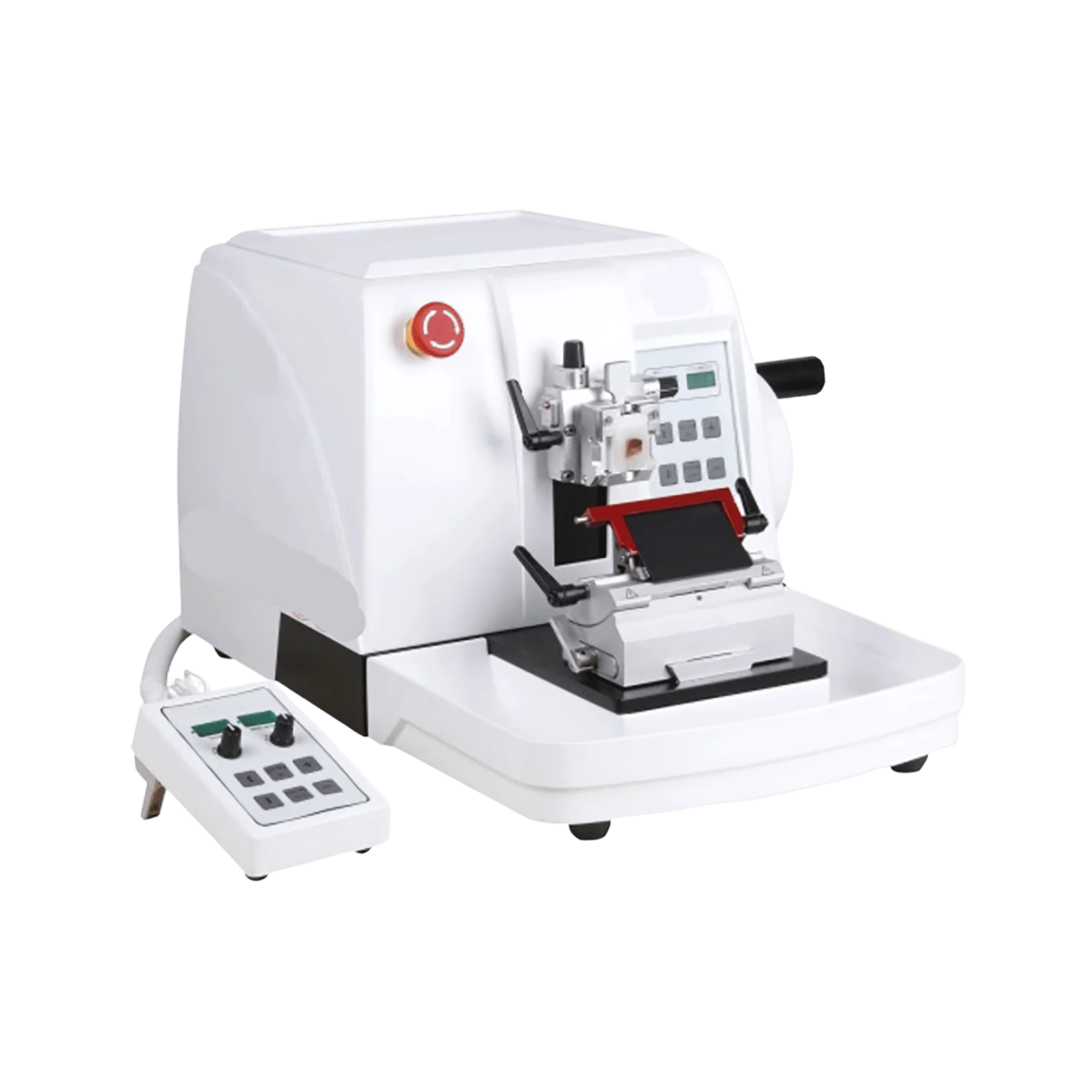

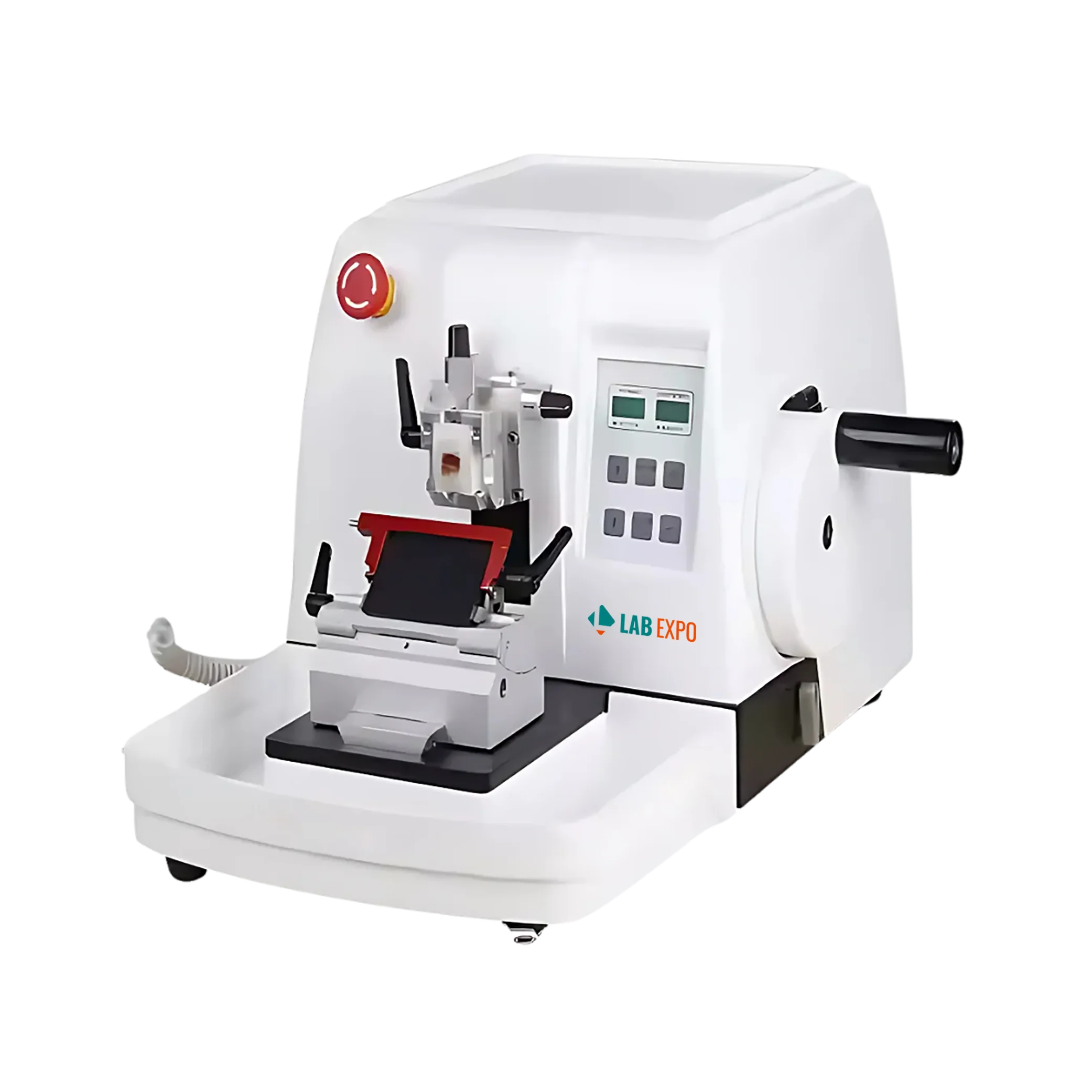

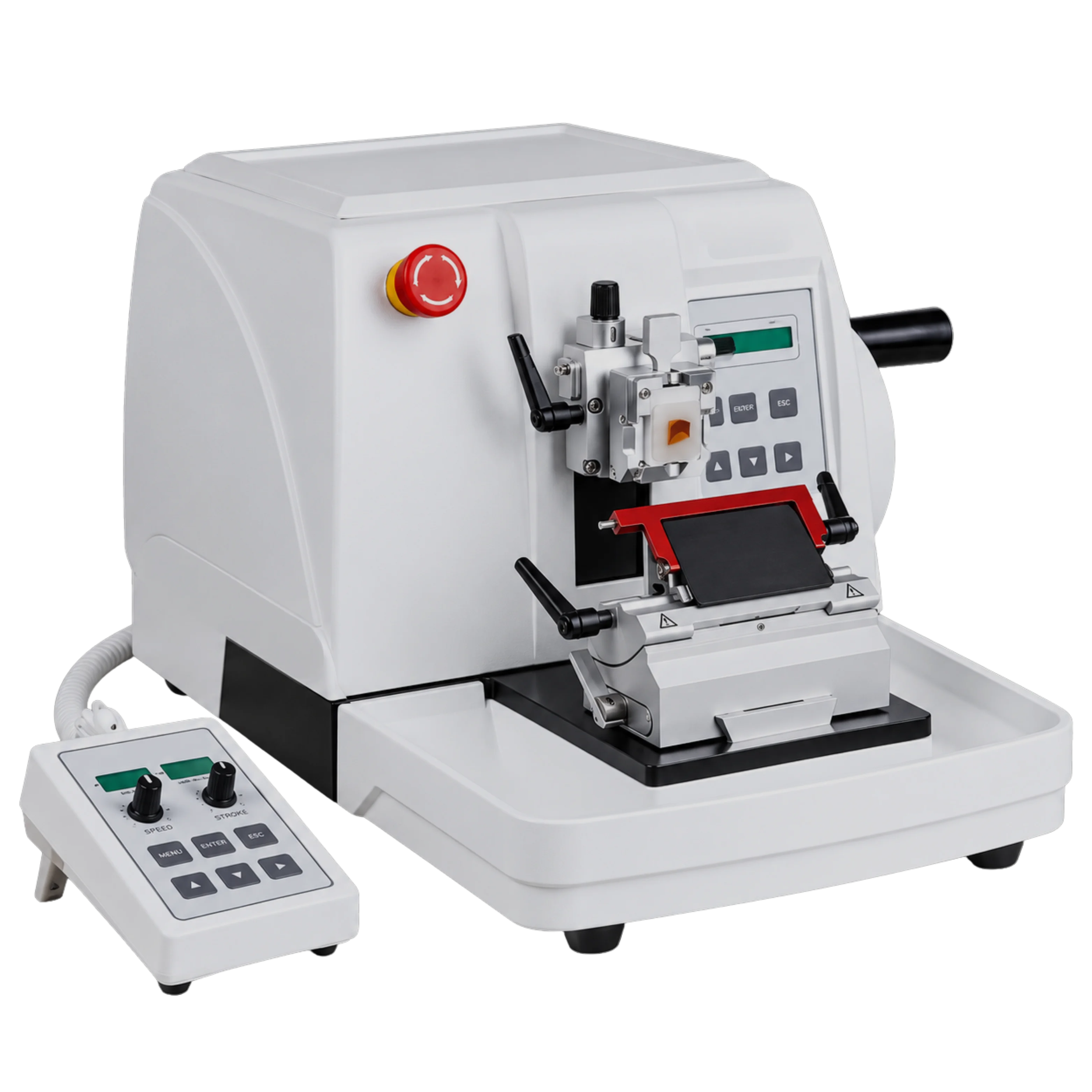

Automatic Microtome 24-LAM100

Automatic Microtome 24-LAM100 is a laboratory instrument designed to prepare thin slices of biological specimens. Capable of creating thin slices of specimens within a range of 0.25µm to 100µm thickness. Offers programmability to users to operate it at their desired parameters. Features an intelligent control mechanism that enables quick switching between manual and automated smart sectioning modes.

Section thickness setting range 0.25 to 100µm: 0.25μm to 2.5μm, in 0.25μm increments; 2.5-5μm to 50μm, in 0.5μm increments; 5μm to 10μm, in 1μm increments; 10μm to 30μm, in 2μm increments; 30μm to 60μm, in 5μm increments; 60μm to 100μm, in 10μm increments
Trimming thickness setting range 1 to 600µm: 1μm to 10μm, in 1μm increments; 10μm to 20μm, in 2μm increments; 20μm to 50μm, in 5μm increments; 50μm to 150μm, in 10μm increments; 50μm to 600μm, in 50μm increments
Minimum setting of sectioning thickness 0.25μm
Specimen retraction setting range 0 μm-50μm (0 is off), 5 μm-10 μm-15 μm-50 μm (Optional)
Precision and error ±1%
Maximum specimen size 70mm×70mm
Specimen horizontal feed 25mm
Specimen vertical feed 70mm
Specimen clamp rotation At any angle within 360º
Movement range of the base of specimen holder 65mm (front to back)
Specimen orientation system XY-8º
Feed speed adjust 1500μm/s-3500μm/s
Voltage and frequency AC220V+10% 50Hz (standard model) AC110V±10%60Hz
Power 150W
Dimensions (W×D×H) 580×475×340mm
Weight 41kg
  • Supports both manual sectioning using a hand wheel and motorized sectioning
  • Equipped with a specimen holder that securely grips the biological samples
  • Utilizes a motor-driven cutting mechanism to ensure smoother and even sectioning
  • Incorporated with a sharp blade capable of swiftly producing thin sections
  • Comes with a user-friendly interface for controlling and adjusting various settings
  • Offers simple and fast switching between two cassette clamp and a paraffin clamp
  • Enables multiple functions including trimming, fast forward and backward, mode conversion
  • Includes safety and security features such as overload protection, auto-sleep protection

Automatic Microtome is widely used for thin sectioning of biological specimens for histology and pathology preparations, medical research, disease diagnosis and studying cellular structures.
