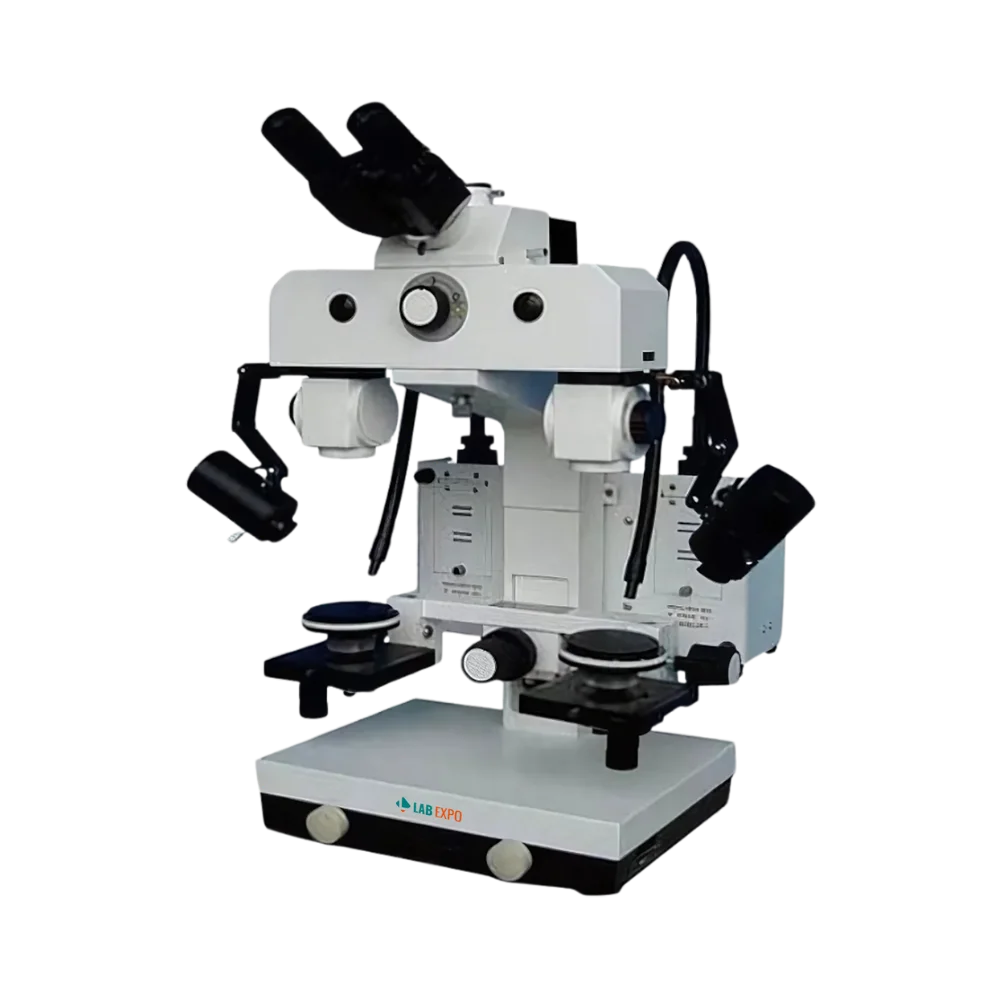

Lab Expo Comparison Microscope 43-CMS100 enables the side-by-side analysis of two specimens by same person. It comes with built in digital colour video recording system to observe a live image of the split image on to the computer. It has large working distance of 100 mm for easy specimen mounting and observing. This microscope is mainstay of forensic science & criminology investigations.
$7,354.00 $ 6128
| Optical magnification range | 2.5X ~ 120X |
| Eyepiece | WF 10X / Ø 22 mm, WF 10X / Ø 14 mm |
| video recording system | 3 mega pixels, 1024 × 768 resolution Support USB numerical VGA/AV/DAI output Match with digital camera port |
| Working distance | 100 mm |
| Objective stage dimension | 100 mm Moving range: X/50 mm, Y/50 mm, Z/50 mm |
| Objective | 0.6x, 1.2x, 2.0x, 3.5x, 5.0x, (0.3x, 2.0x optical) |
| Objective view field diameter | 2.5 Ø mm-90 Ø mm |
| Objective stage horizontal linkage range | 50 mm |
| Coarse moving range | 50 mm |
| Illumination | Semiconductor light source (brightness adjustable) 300W independent exteriorized cold light source Photoconductive fiber with adjustable condenser |
| Power supply | 24 V AV input, 24 V DV stable voltage output In accordance with international safe standards |
| Dimension | 410 × 210 × 450 mm |
| Net weight | 7 kg |
| Gross weight | 8 kg |
Function Implementation Forensic evidence analysis 100 mm working distance enables easy specimen mounting Criminology investigations 3 mega pixels video recording supports live image observation Quality control labs Optical magnification range 2.5X ~ 120X allows detailed comparison Research institutions Semiconductor light source with adjustable brightness ensures consistent illumination Industrial inspection stations Objective stage horizontal linkage range of 50 mm facilitates specimen alignment
