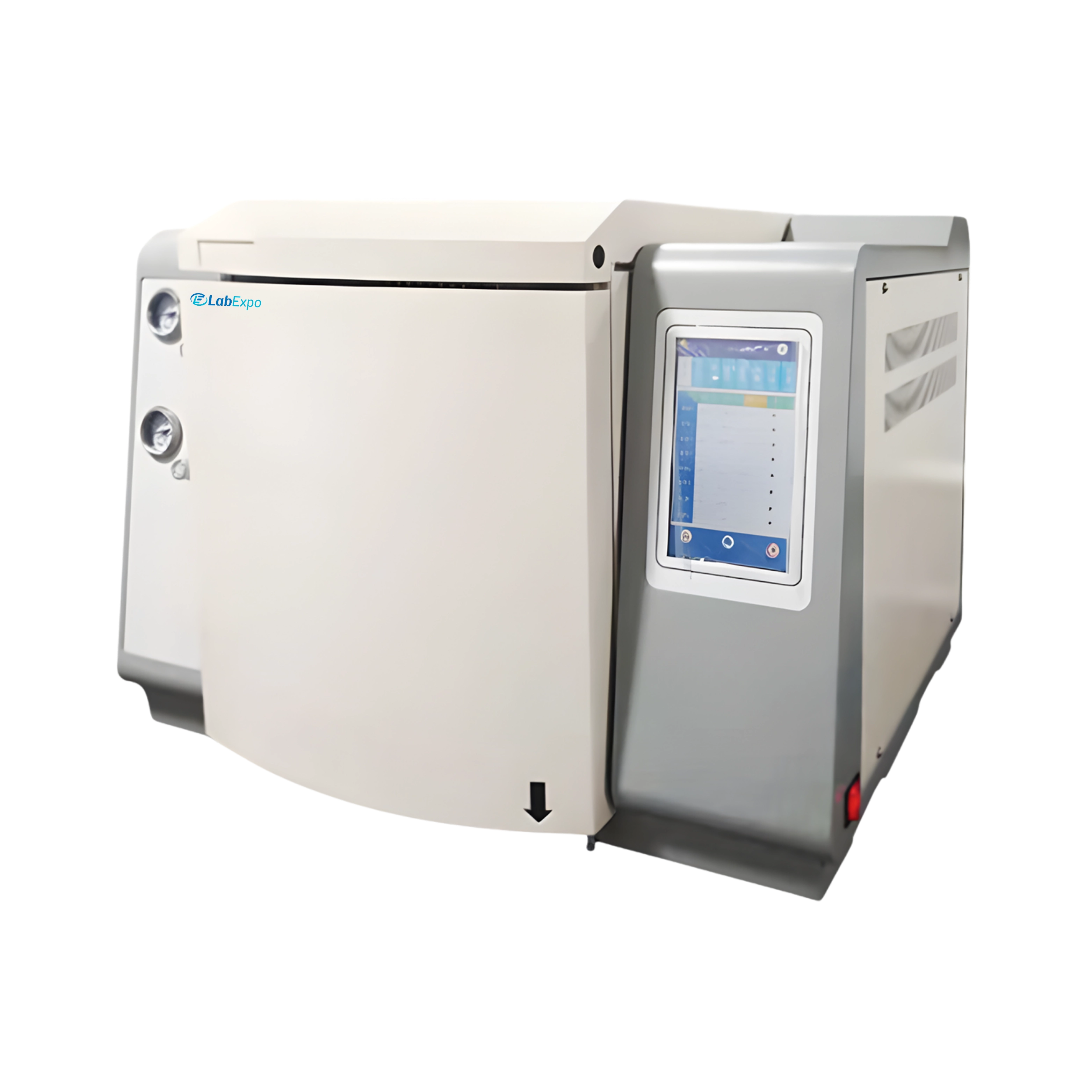

Gas Chromatograph 65-GC104

Name: Gas Chromatograph 65-GC104
Brand: Labexpo
SKU: 65-GC104
Rating: 5.0 (634 reviews)

Gas Chromatograph 65-GC104 offers a temperature range from RT up to 480 °C, ensuring precise analysis. Equipped with a 5.7-inch LCD screen to monitor chromatography parameters. It allows simultaneous installation of packed and capillary columns for flexible detection. Features a double column compensation function to minimize baseline drift and background noise. Our chromatograph includes a hydrogen flame ionization detector (FID) for high-sensitivity measurement of organic compounds.

$9,038.00 $ 7532

Gas Chromatograph 65-GC104 - Specifications

Temperature Range	RT to 450 °C
Temperature Accuracy	≤ ± 0.1℃
Temperature Program	16-phase
Maximum Temperature Heating Rate	40℃/min
Detector	Hydrogen Flame Ionization Detector (FID)
Detection Limit	≤ 3×10⁻¹²g/s (Sample: n-hexadecane)
Baseline Drift	≤ 1×10⁻¹³A/30min
Linear Range	≥ 10⁷
Capillary Columns	0.32 mm Ø, 80 m length
Display	5.7-inch LCD
Power	AC220V±10%, 50/60Hz
Oven Dimensions	300 × 280 ×180 mm
Dimensions	820 × 670 × 600mm
Weight	71kg

Gas Chromatograph 65-GC104 - Key Features

Temperature range RT to 450 C with ±0.1 C accuracy
16-phase temperature programming up to 40 C/min
Hydrogen flame ionization detector with detection limit ≤3×10⁻¹² g/s
Linear range ≥10⁷ with baseline drift ≤1×10⁻¹³ A/30 min
5.7-inch LCD with support for packed and capillary columns

Gas Chromatograph 65-GC104 - Applications

Function	Implementation
Trace organic compound detection	FID sensitivity enables low-level hydrocarbon analysis
Complex mixture separation	16-phase programming manages multi-component resolution
Petroleum and chemical testing	Wide temperature range supports diverse compound profiles
Pharmaceutical and forensic analysis	Stable baseline ensures reproducible quantification
Environmental monitoring	High linear range maintains accuracy across concentration levels

Gas Chromatograph 65-GC104 - Standard Accessories

5.7-inch LCD FID detector Software Capillary Sampler

Gas Chromatograph 65-GC104 - Optional Accessories

TCD Detector ECD Detector FPD detector NPD detector Deoxidizer Tube Capillary sampler GA-2009 Air generator Hydrogen generator

Gas Chromatograph 65-GC104 - Catalog

Gas Chromatograph 65-GC104 Catalog
