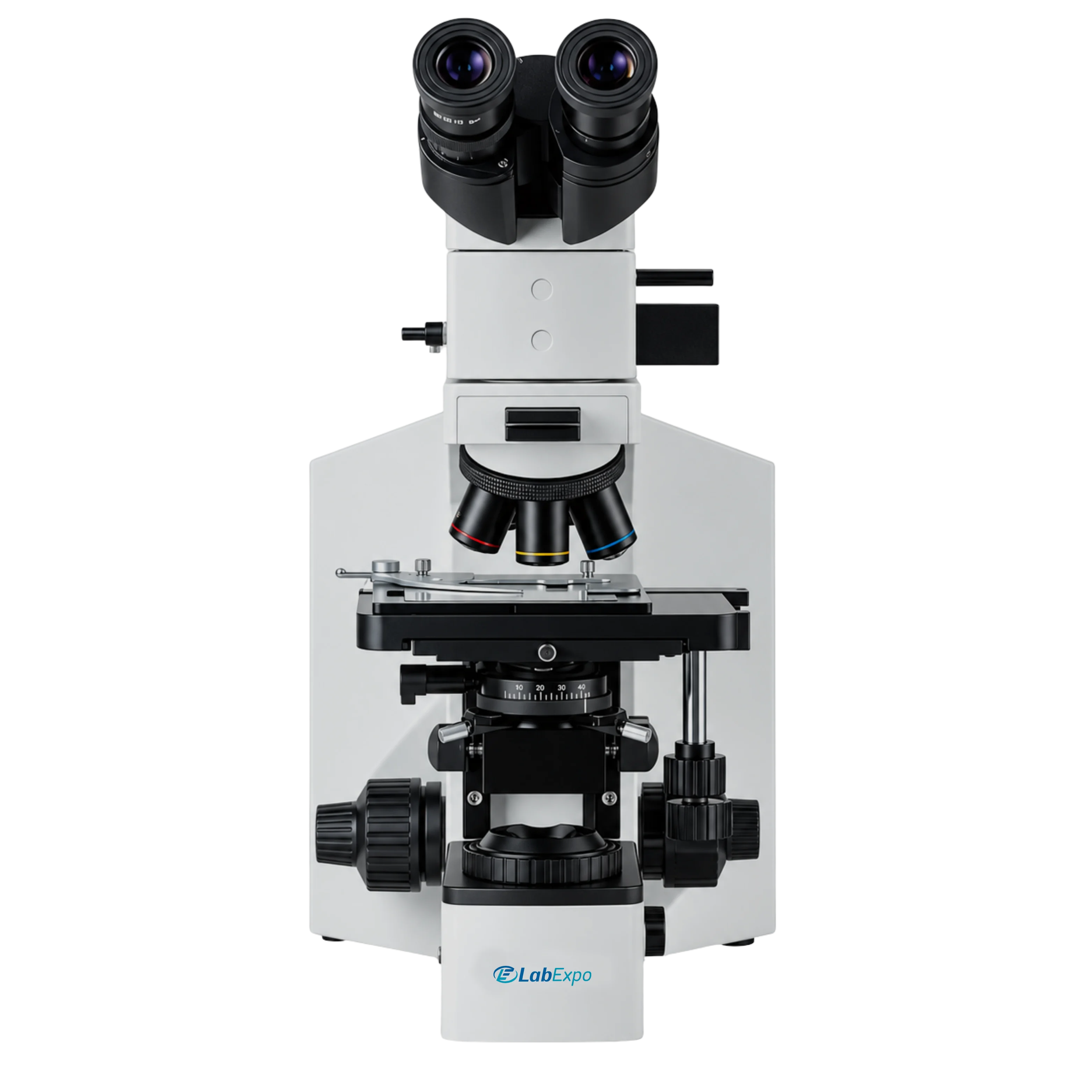

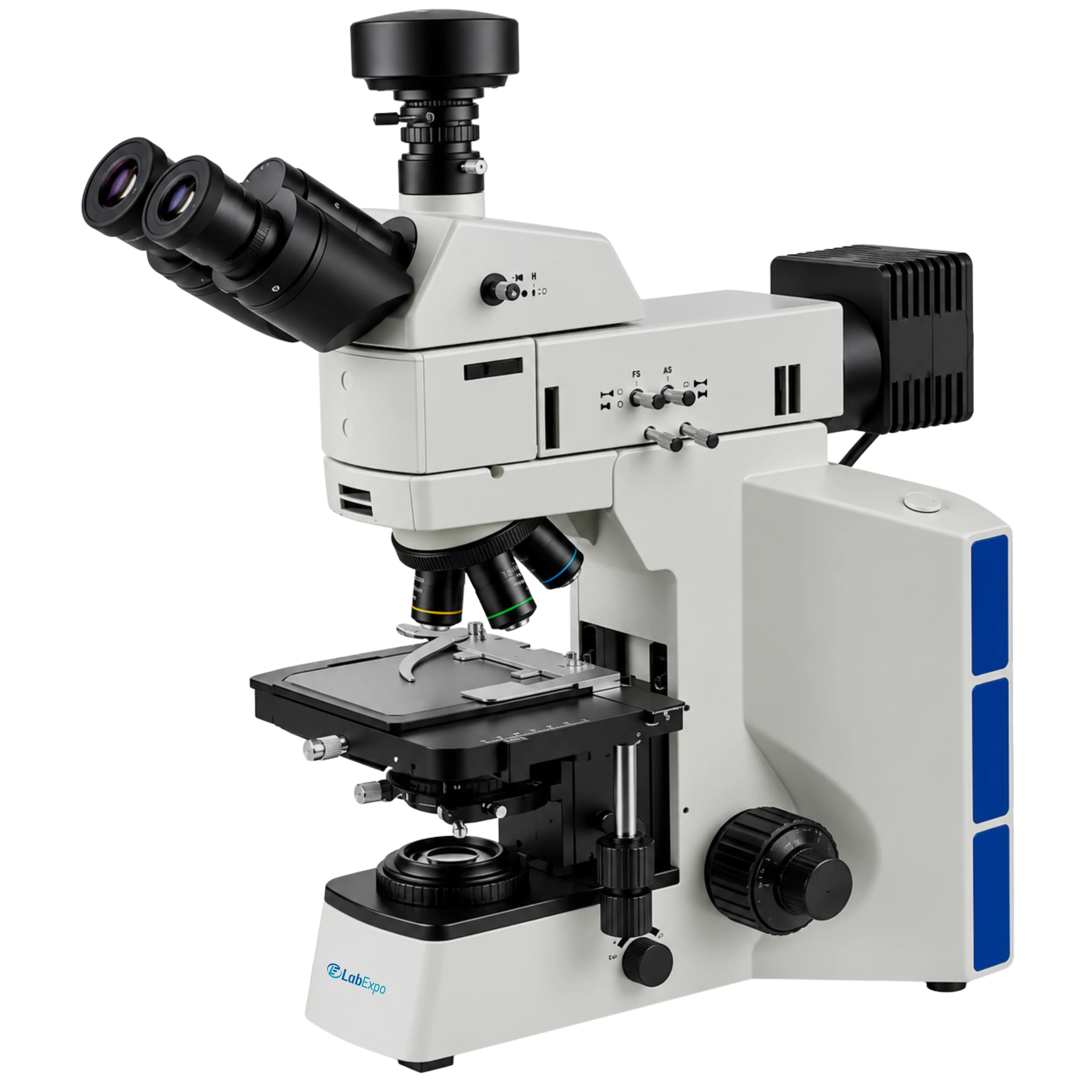

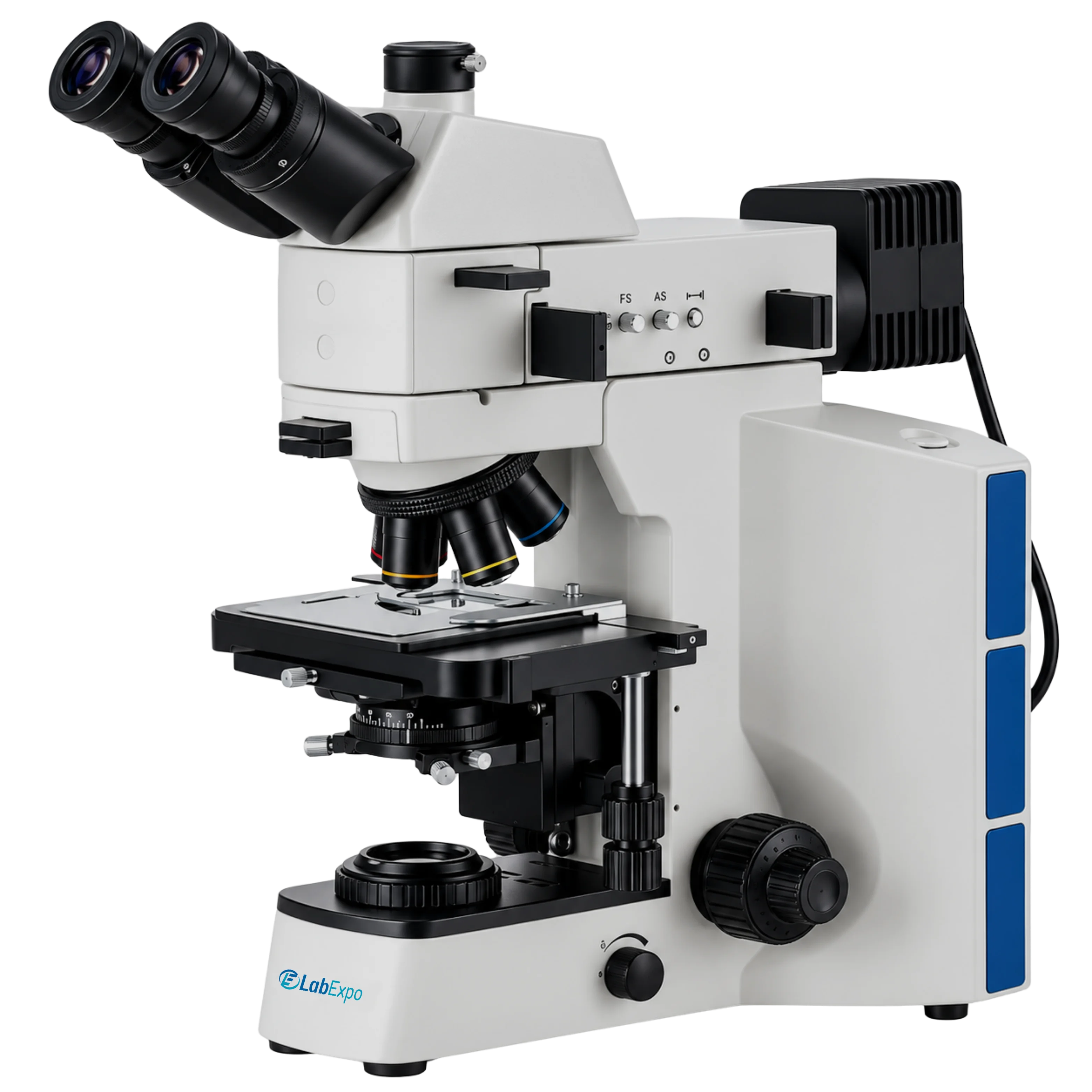

Lab Expi Metallurgical Microscope 30-MMS102 features a 30° inclined infinity-hinge three-way viewing head, ensuring a comfortable working posture. It is equipped with high eyepoint wide-field plan eyepieces of PL10X/22mm for exceptional clarity. Our microscope incorporates a state-of-the-art Kohler illumination system for precise and uniform lighting. It includes a 5W LED light source provides warm white lighting reducing visual fatigue during extended usage.
$4,877.00 $ 4064
| Viewing head | 30° inclined; Infinity hinge three-way viewing head The interpupillary distance is adjustable between 54mm to 75mm Diopter adjustment: ±5 Diopters two-level split ratio R:T=100:0 or 50:50 |
| Eyepiece | High eyepoint wide field plan eyepiece PL10X/22mm |
| Objectives | LMPL 5X /0.15 WD10.8mm LMPL 10X/0.30 WD12.2mm LMPL 20X/0.45 WD4.00mm LMPL 50X/0.55 WD7.9mm |
| Optical System | Infinity-corrected optical system |
| Nosepiece | Five-position nosepiece |
| Focusing Adjustment | Reflected frame, coaxial focus system with tension adjustment and up-limited device, coarse range: 28mm Fine precision: 0.002mm Stage can be adjusted up and down 78mm high sample is available Transmitted & Reflected frame, Coaxial focus system with tension adjustment and up-limited device Coarse range: 28mm, Fine precision: 0.002mm, Stage can be adjusted up and down, a 28mm high sample is available. (optional) |
| Stage | Double layer mechanical stage with X/Y coaxial adjustment Size: 175mmX145mm, Moving range: 76mmX42mm Plate for reflected frame |
| Reflective Illumination | Wide-range voltage 100V-240V_AC50/60Hz Reflected lamp-house with single 5W LED, warm color Koehler illuminator with oblique light device Center adjustable field and aperture diaphragm |
| Polarizing Kit | Analyzer: 360° rotating; Polarizer and analyzer removable from the light path |
| Transmitted Illumination | Wide-range voltage 100V-240V_AC50/60Hz Transmitted lamp-house with single 5W LED, warm color. (optional) |
| Metallographic Analysis Software | FMIA2020 Metallographic analysis software Sony chip 5 million camera device, 0.5X adapter lens interface High-precision micrometer (100x0.01mm, 100x0.01cm, calibration: d = 0.15mm, d = 0.07mm) |
| Dimension | 650×450×600 mm |
| Weight | 20kg |
Function Implementation Quality control labs 0.002mm fine precision enables detailed microstructure inspection Research institutions PL10X/22mm eyepieces support extended observation sessions Industrial facilities 5W LED illumination provides consistent lighting for material analysis Clinical laboratories 360° rotating analyzer allows polarized light examination of samples Educational settings 175mmX145mm stage accommodates various specimen preparation methods
Accessory | Quantity |
Eyepiece: PL10X22mm with Micrometer | 1 |
Eyepiece: PL15X/16mm | 1 |
Objective: LMPL100X/0.80 WD2.1mm | 1 |
Color filters | 1 |
HP Computer | 1 |
Lab Expo Metallurgical Microscopes are structured around reflected-light optical systems for surface-level examination of metals and alloys. This metallographic microscope uses infinity plan achromatic objectives with a quintuple nosepiece to maintain image clarity across magnifications. Coaxial coarse–fine focusing, uniform halogen illumination, and trinocular viewing support precise microstructure analysis, documentation, and inspection in material science and industrial laboratory workflows.
