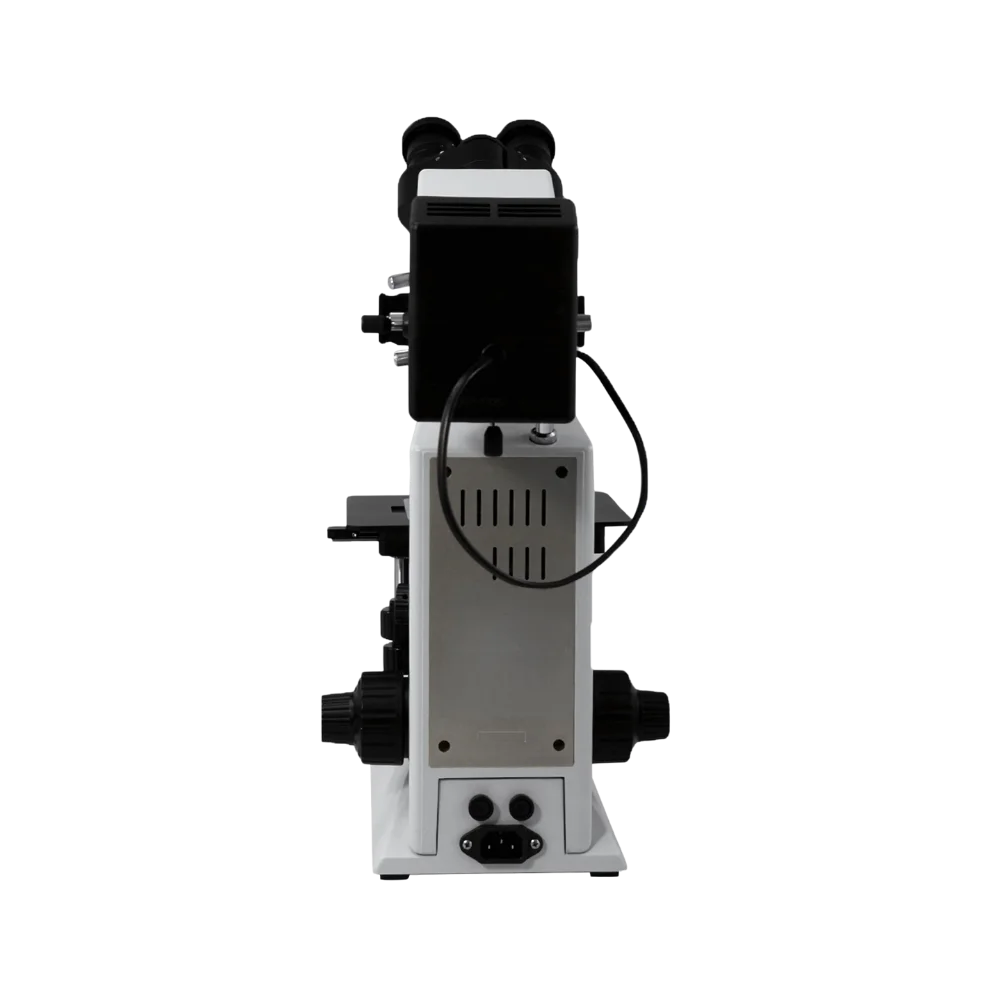

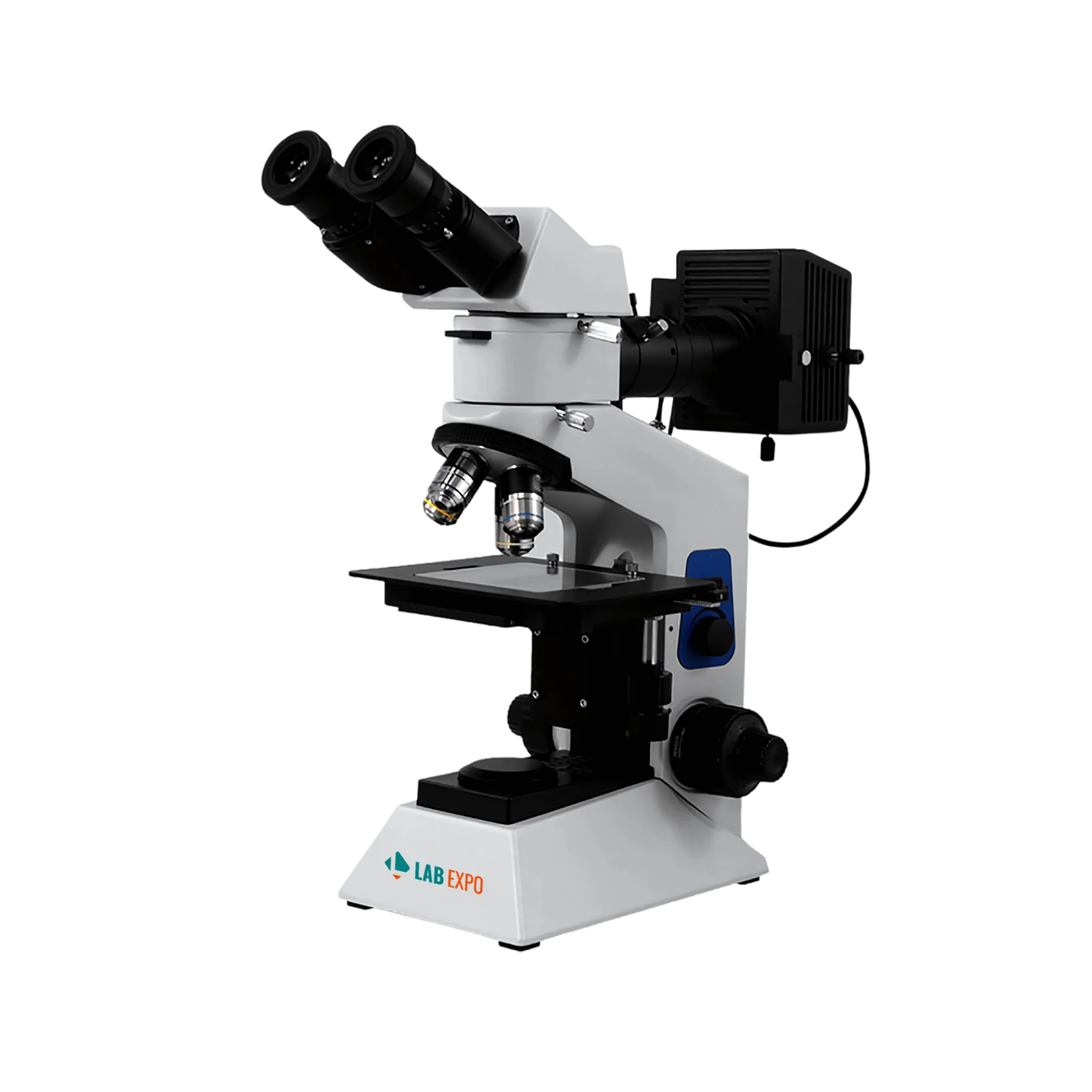

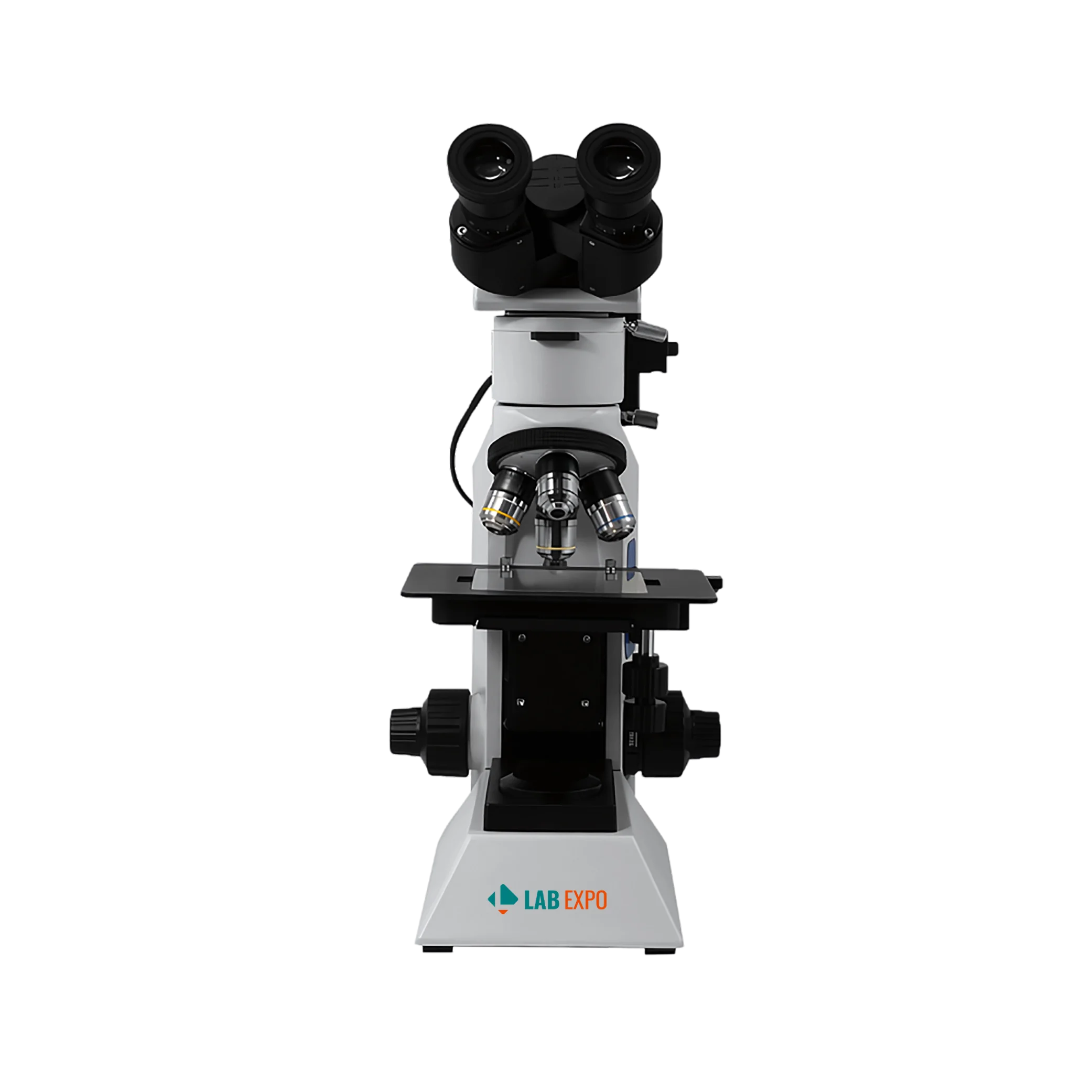

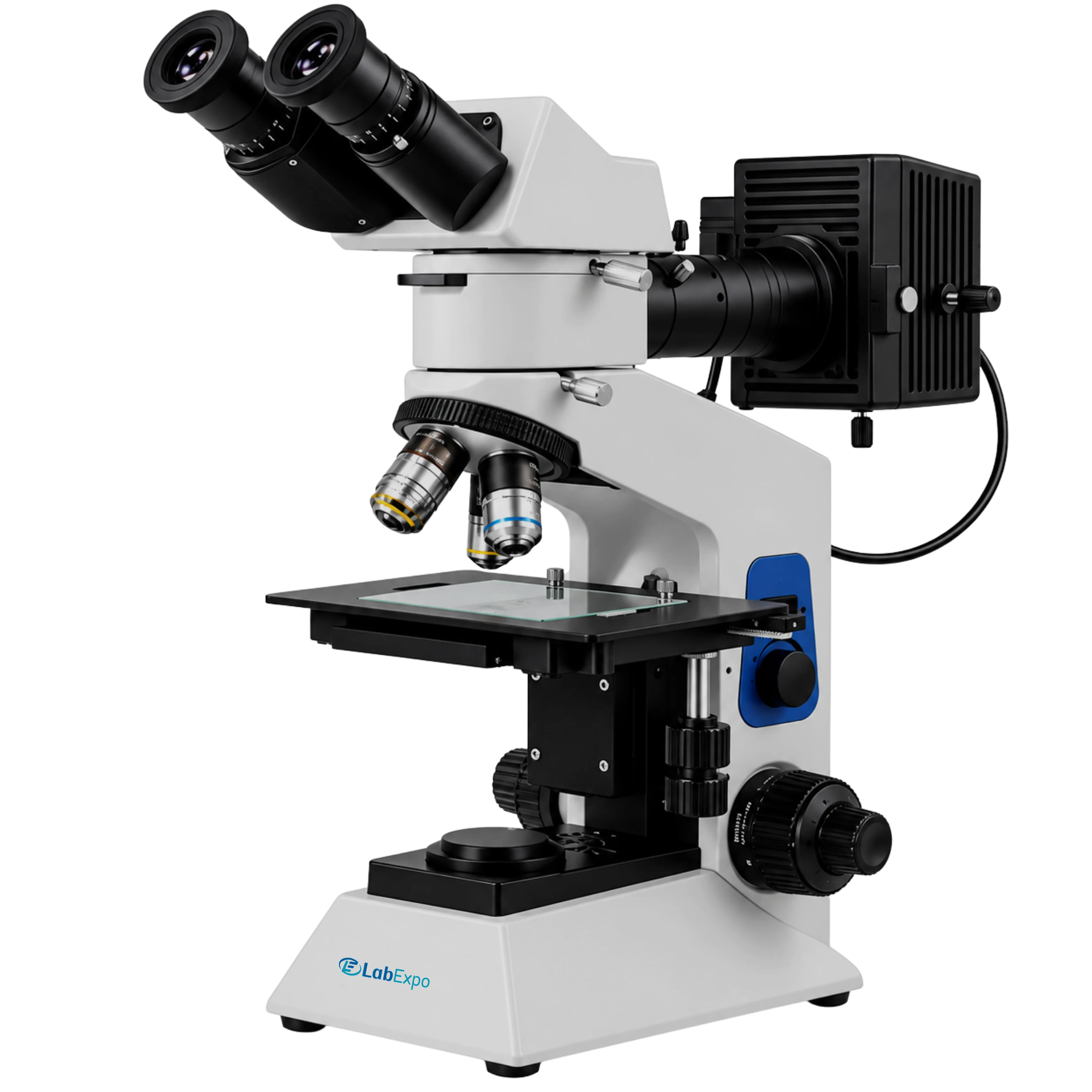

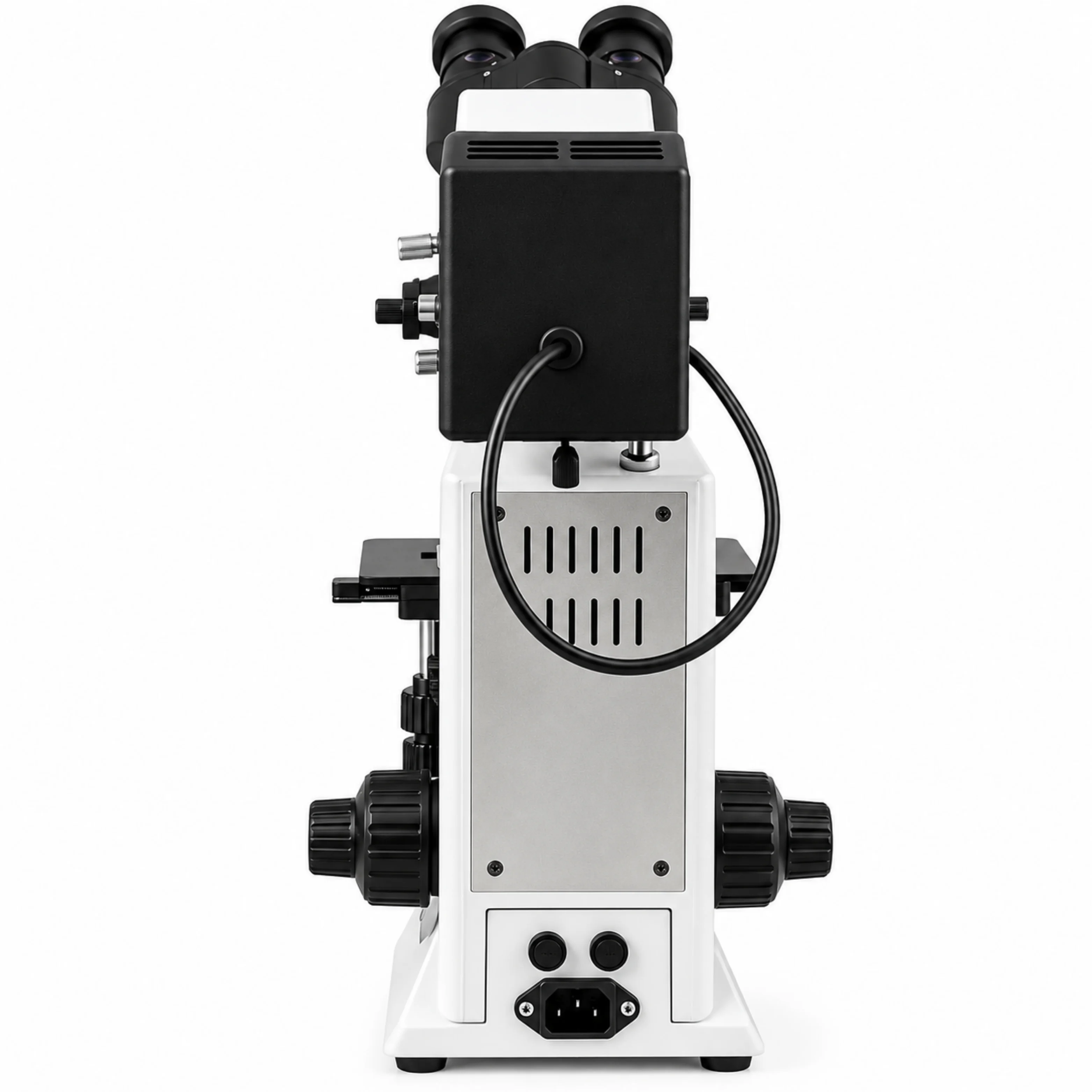

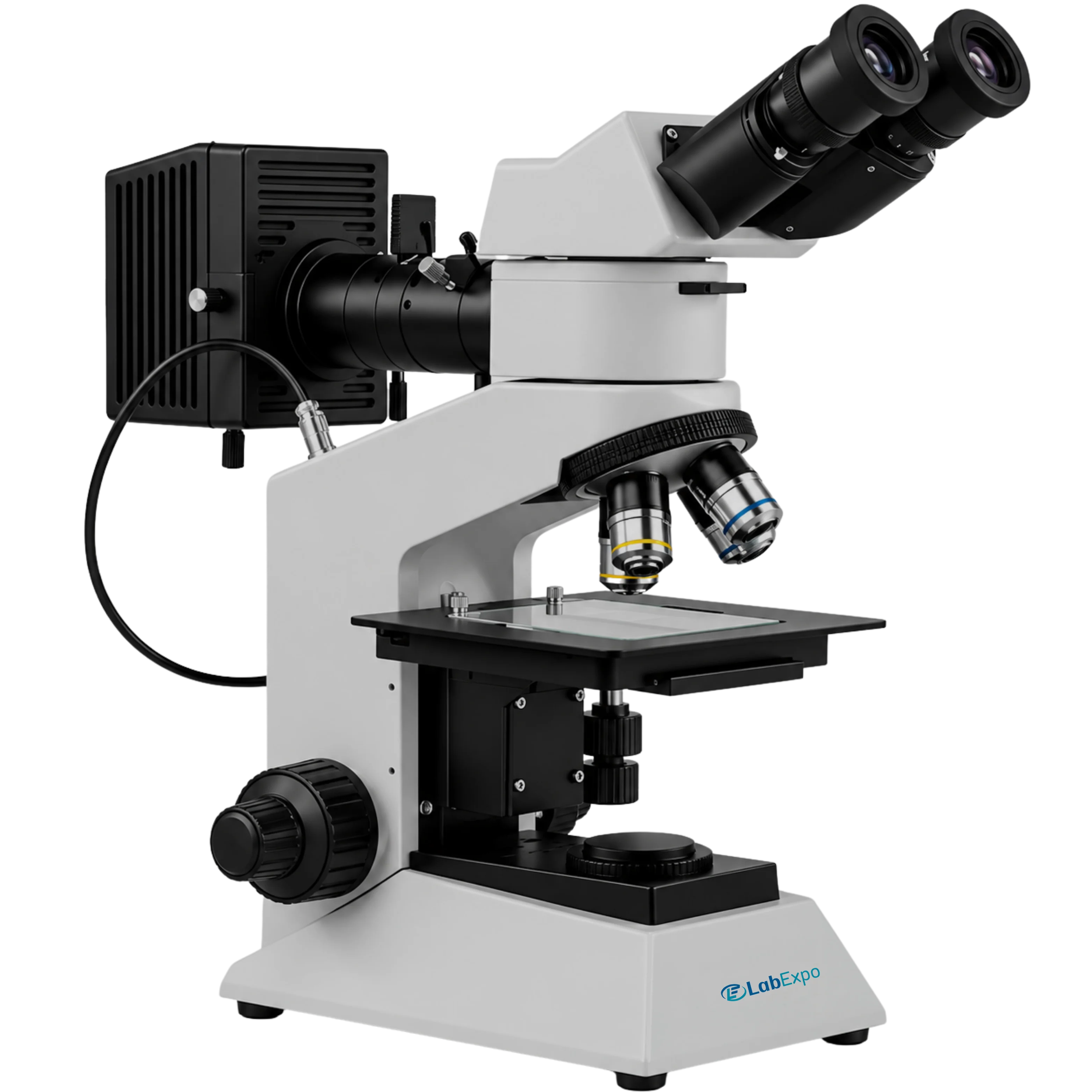

Lab Expo Video Metallurgical Microscope 43-MMS300 features a 10X plan eyepiece with an 18mm field of view for detailed specimen examination. The stage includes a mobile platform with coarse and fine coaxial adjustments for precise specimen handling. It consists of the Epi-fall Kolar lighting system with an anti-reflection structure for enhanced image clarity. The focusing system has separate switches for independent control of upper and lower lighting, improving flexibility.
$9,600.00 $ 8000
| Eyepiece | Wide field WF10X(FNΦ18mm), Micrometre available Wide field WF15X(FNΦ13mm), Micrometre available Wide field WF20X(FNΦ10mm), Micrometre available |
| Infinite flat field achromatic objective | PL L5X/0.12 Working distance:15.5 mm PL L10X/0.25 Working distance:8.7mm PL L20X/0.40 Working distance:8.8mm PL L50X/0.70 Working distance:5.1 mm |
| Nosepiece | Quintuple (4 standard lenses of 5X, 10X, 20X, 50X, and one optional 100X) |
| Converter | Internal positioning four-hole converter |
| Focusing system | Low hand coarse and micro coaxial focusing mechanism Fine adjustment accuracy of 0.002mm Equipped with an adjusting slack device to prevent sliding Mechanical upper limit device Adjusting elastic device to prevent sliding Random limiting device to prevent chip damage and fast focusing |
| Stage | Composite double-deck mechanical platform Table surface size: 140 mm × 132 mm (add 180 × 145 mm Flat plate platform,102 × 102 mm Glass loading platform, Facilitate the placement of larger size samples) Moving range: 76 × 50mm, precision: 0.1mm |
| Condenser | N.A.1.25 Cora lighting condenser set preset center, Rack and pinion lift (Fixed type Cora lighting) |
| Illuminating system | Halogen Lamp: 100-240V AC wide voltage Power: 6V/30W Adjustable filament center, continuous adjustable light intensity, variable aperture diaphragm, variable field stop, center adjustable |
| Photograph System | 0.35X/0.5X/0.65X/1XC-Mount, Adjustable focus |
| Imaging system | 4K high-definition imaging system USB3.0 computer version imaging system Super depth of field fusion functional imaging system High-precision measurement imaging system Metallographic analysis imaging system |
| Dimensions | 570 × 470 × 260 mm |
| Net Weight | 8.3 Kgs |
| Gross Weight | 12.5 Kgs |
Function Implementation Metallographic sample analysis 140 mm × 132 mm stage surface enables precise specimen placement High-magnification inspection PL L50X/0.70 objective with 5.1 mm working distance supports detailed microstructure evaluation Digital imaging capture USB3.0 computer version facilitates real-time image transfer to workstations Focus adjustment precision Fine adjustment accuracy of 0.002mm allows exact focal plane control Illumination flexibility Halogen lamp at 6V/30W provides adjustable light intensity for varied sample contrast
USB2.0 Industrial camera
Lab Expo Metallurgical Microscopes are structured around reflected-light optical systems for surface-level examination of metals and alloys. This metallographic microscope uses infinity plan achromatic objectives with a quintuple nosepiece to maintain image clarity across magnifications. Coaxial coarse–fine focusing, uniform halogen illumination, and trinocular viewing support precise microstructure analysis, documentation, and inspection in material science and industrial laboratory workflows.
