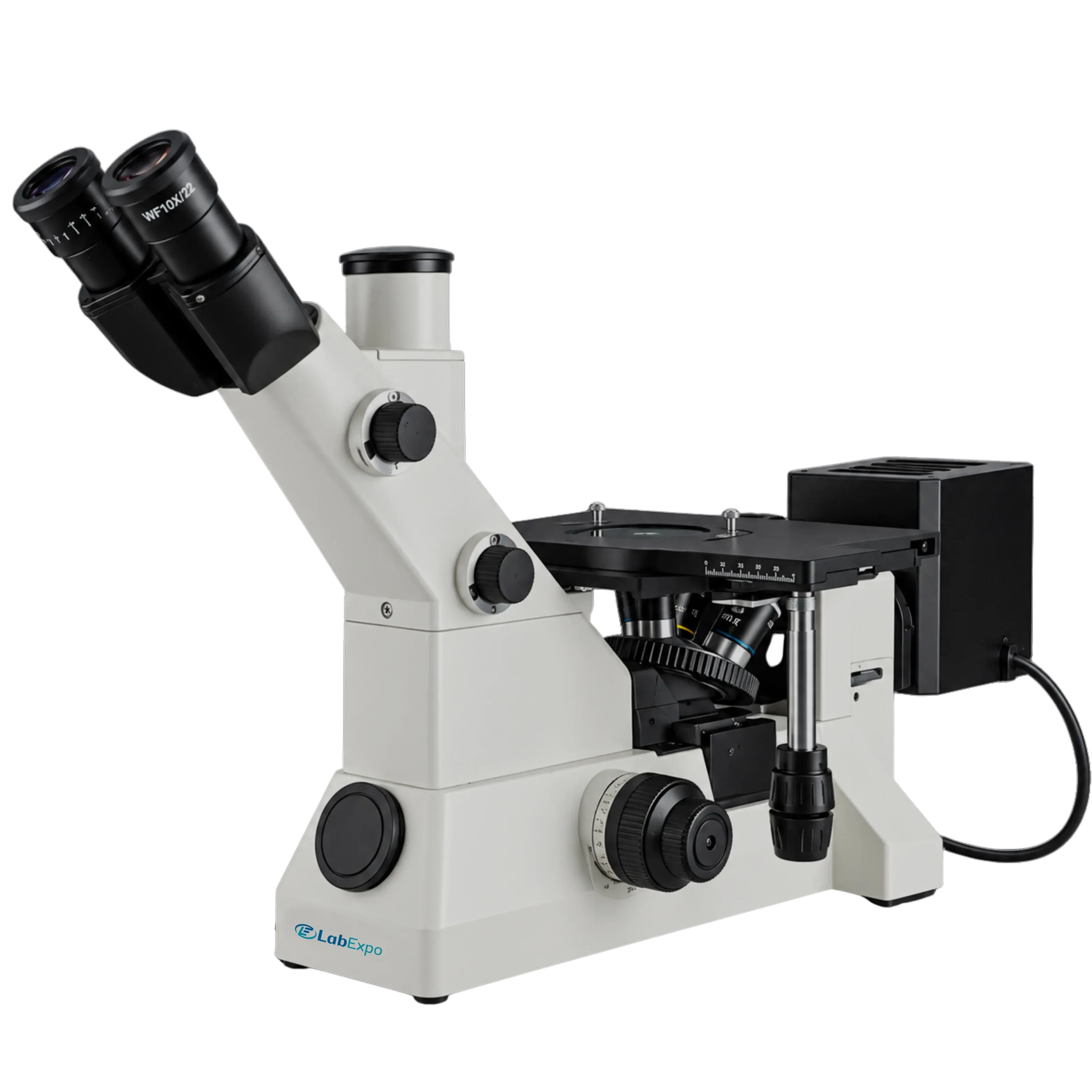

Metallurgical Microscope LE-MM404

Metallurgical Microscope LE-MM404
Model: LE-MM404

Lab Expo Metallurgical Microscope LE-MM404 is designed with a stable stand structure that ensures precise observation. Equipped with an advanced stage design for smooth, accurate sample positioning. Integrated bright field polarization enhances contrast for clear structural analysis. Incorporated ergonomic design supports long hours of comfortable operation. Our Metallurgical Microscope is widely used in institutes and laboratories.

$5,748.00 $ 4790

Metallurgical Microscope LE-MM404 - Specifications

Optical System Infinite optical system
Extra Wide Field Eyepiece WF10X/20WF10X/20, Eyepiece with Scale of Cross HairWF15X/16WF20X/12
Infinite LWD Plan Achromatic Objective 4X/0.10/∞/0(BF/DF) LWD 20.7mm10X/0.25/∞/0(BF/DF) LWD 10mm20X/0.4/∞/0(BF/DF) LWD 5mm50X/0.75/∞/0(BF/DF) LWD 1.3mm100X/0.9/∞/0(BF/DF) LWD 0.7mm
Illumination 12V/50W Halogen Light, Center and Brightness Adjustable
Focusing Coaxial Coarse and Fine Adjustment, Fine Division 2μm, Moving Range (From the Focusing of the Stage Surface) Up 1mm, Down 7mm
Nosepiece Backward Quintuple Nosepiece
Stage Double Layer Mechanical Stage 226X178mm, Moving Range 40mmX40mm
Function Bright Field, Polarization

Metallurgical Microscope LE-MM404 - Key Features

  • Backward quintuple nosepiece with five objective positions
  • 12V 50W halogen illumination with center and brightness adjustment
  • Double layer mechanical stage 226x178mm moving range 40x40mm
  • Infinite optical system for corrected image formation
  • Hinged type binocular viewing head with interpupillary adjustment

Metallurgical Microscope LE-MM404 - Applications

FunctionImplementation
Metallurgical analysis4X/0.10 objective LWD 20.7mm enables low-magnification structural inspection
Sample examinationMoving range Up 1mm, Down 7mm supports vertical focus adjustment on specimens
Polarized light observationBright Field, Polarization function enhances contrast for metallographic studies
Stage positioningDouble Layer Mechanical Stage 226X178mm facilitates precise sample manipulation
Eyepiece selectionWF10X/20 eyepieces provide wide-field viewing for detailed microstructure evaluation

Metallurgical Microscope LE-MM404 - Catalog

Metallurgical Microscope LE-MM404 Catalog

Related Metallurgical Microscope

Lab Expo Metallurgical Microscopes are structured around reflected-light optical systems for surface-level examination of metals and alloys. This metallographic microscope uses infinity plan achromatic objectives with a quintuple nosepiece to maintain image clarity across magnifications. Coaxial coarse–fine focusing, uniform halogen illumination, and trinocular viewing support precise microstructure analysis, documentation, and inspection in material science and industrial laboratory workflows.
