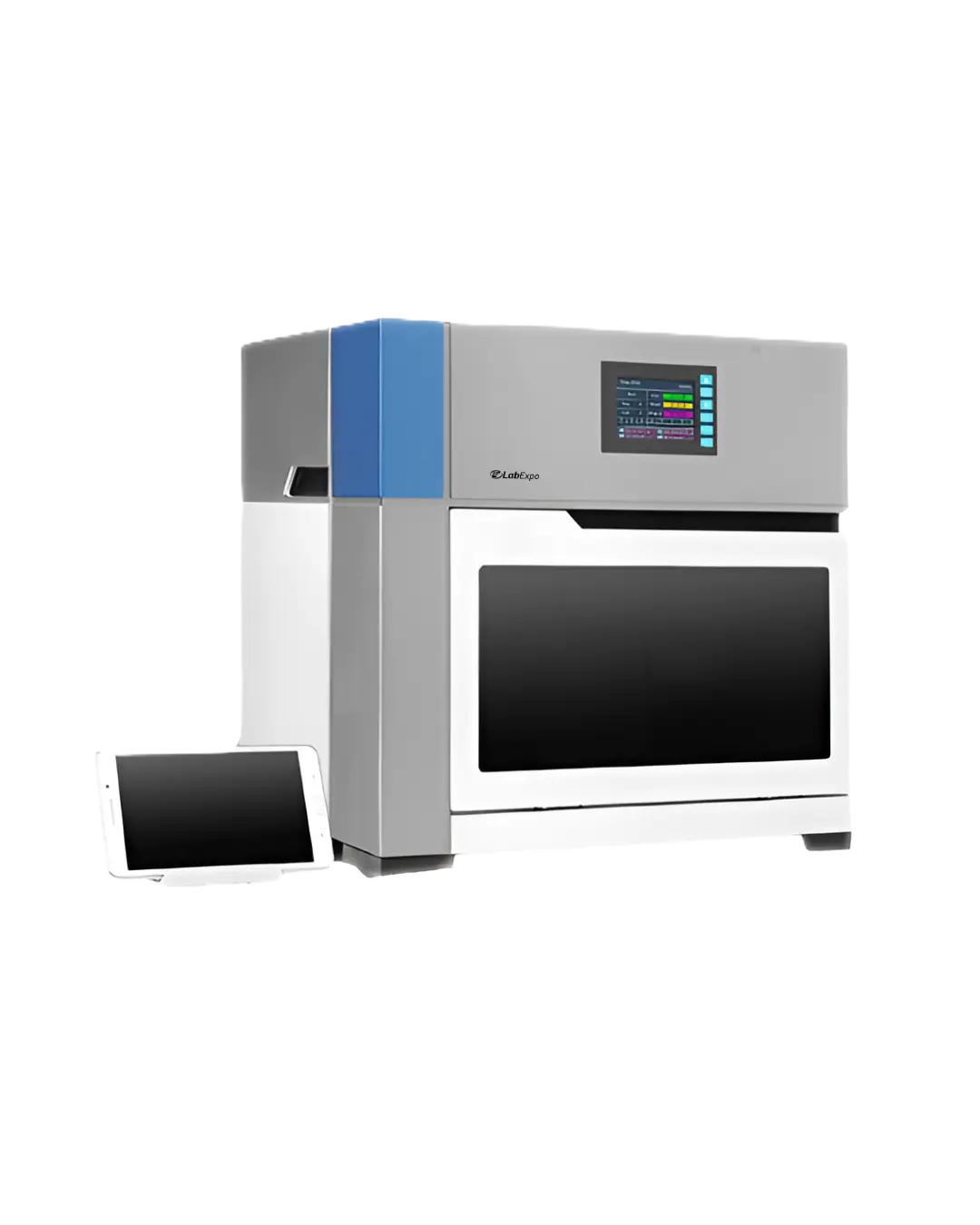

Lab Expo Nucleic Acid Extractor LE-NAE101 offers a processing volume range from 30 to 1000 μl for low and high-throughput sample. Features multi-modes and multi-gears mixing to enable efficient nucleic acid extraction. Built-in UV disinfection module to ensure a sterile working environment. Supports remote control via android devices and on-device operation through screen and buttons. Our Nucleic Acid Extractor comes with magnetic beads-based extraction kits for high-purity nucleic acid isolation.
$15,156.00 $ 12630
| Processing Volume | 30 to 1000 μl |
| Sample Volume | 200 μl |
| Magnetic Bead Residue | ≤ 1% |
| Applicable Consumables | 96-Well Plates. 6- Tube Strips |
| Heating Temperature | Lysis Heating: RT to 120℃Elution Heating: RT to 120℃ |
| Operating Temperature Range | 10 to 30℃ |
| Operating Humidity Range | 20% to 85% |
| Mixing Mode | Multi-Modes and Multi-Gears Mixing |
| Reagent Type | Magnetic Beads-Based Extraction Kits |
| Operation Mode | A. Remote Control via Smart Phone /Tablet (Android System)B. Screen/Button Operation |
| Experimental Storage | Up To 15 Sets of Programs Can Be Stored in The InstrumentAndroid Applications Can Store > 500 Programs |
| Program Management | Programs can be created, edited, applied and deleted with high flexibility |
| Contamination Control | Built-in UV disinfection module |
| Power Failure Protection | In the event of an unexpected power failure, there are options available whether or not to continue the experiment |
| Connection Port Type | USB, Ethernet, USB Type-B |
| Network Connection | Mobile/Tablet Wifi Remote Control; Ethernet Remote Control Applicable |
| Power Consumption | 600 W |
| Power Supply | AC 100-240V, 50/60+1Hz; |
| Instrument Dimensions | 435 × 440 × 445 mm |
| Net Weight | 31.5 kg |
Function Implementation Clinical diagnostics labs 30 to 1000 μl processing volume supports varied sample throughput Quality control workflows ≤ 1% magnetic bead residue ensures high-purity extraction Research facilities RT to 120℃ lysis and elution heating enables protocol flexibility Industrial testing environments 600 W power consumption allows stable benchtop operation Institutional research settings Up to 15 sets of programs stored locally enables workflow continuity
1: What kind of extraction technology does it use?
It uses magnetic beads-based extraction kits for high-purity nucleic acid isolation.
2: Does it support remote operation?
Yes, it supports remote control via Android smartphones or tablets, in addition to on-device screen and button operation.
3: How many programs can be stored?
The extractor can store up to 15 sets of programs onboard, while the Android application can manage over 500 programs.
4: How does the device prevent contamination?
It features a built-in UV disinfection module that sterilizes the chamber, reducing the risk of cross-contamination.
5: What ports and connections are available?
The system includes USB, USB Type-B, and Ethernet ports, along with Wi-Fi support for mobile and tablet remote control.
6: What is a Nucleic Acid Extractor used for?
It is used to isolate DNA or RNA from biological samples for research, diagnostic, forensic, and molecular biology applications.
7: Can I create and manage custom extraction protocols?
Yes, our extractors feature an advanced program management system allowing users to create, edit, apply, and delete protocols with high flexibility.
8: What happens if there is a power failure during extraction?
Our systems are equipped with robust power failure protection, ensuring that experiments can be resumed or safely terminated as per user preference.
9: What sample volumes can the extractors handle?
They are capable of processing a wide range of sample volumes, making them suitable for both low and high-throughput workflows.
10: Does the system support remote monitoring?
Yes, our Nucleic Acid Extractors support remote access and real-time monitoring to enhance usability and control.
Lab Expo Nucleic Acid Extractors are structured around magnetic bead–based separation logic to deliver consistent, high-purity DNA and RNA isolation. This nucleic acid extraction system supports flexible protocol programming with editable run parameters for varied sample volumes. Power-failure protection, remote access capability, and real-time monitoring enable reproducible extraction performance for research, clinical, and diagnostic laboratory workflows.
