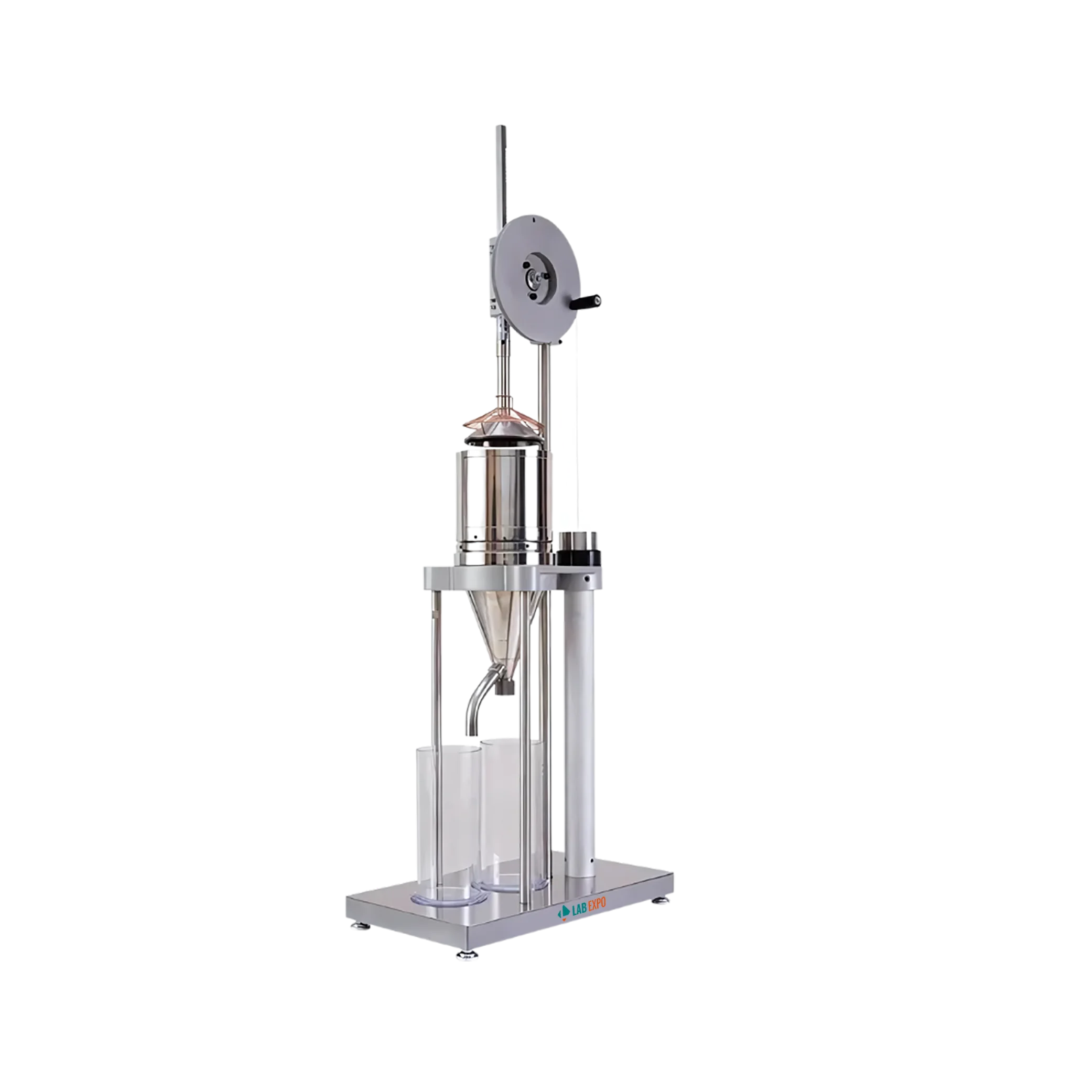

Lab Expo Pulp beating freeness tester 61-PPT106 is used to measure the rate of dilution of pulp suspended water materials and to determine de-watering time. It is adopted with spring pre-tightening mechanism keeps the rubber sealing ring of the sealing hammer body in contact with the bottom of the water filtering tube. This increases the sealing performance of the sealing hammer body.
$3,005.00 $ 2504
| Measurement range | 0 to 100° SR |
| Sealed testing speed | 100 ± 10 mm/s |
| Volume of distilled water | 1000 ± 5 ml |
| Draining time | 149 ± 1 s |
| Residual water volume | 7.85 to 8 ml |
| Hydraulic pressure | >0.3 MPa |
| Dimension | 450×250×1100 mm |
| Net Weight | 40 kg |
Function Implementation Pulp testing labs 1000 ± 5 ml volume handles standard sample quantities Quality control units Draining time of 149 ± 1 s enables repeatable measurement cycles Research facilities Measurement range of 0 to 100° SR supports freeness analysis Industrial settings Hydraulic pressure >0.3 MPa ensures consistent sealing performance Clinical environments Sealed testing speed of 100 ± 1 mm/s allows precise operation control
Lab Expo Paper Testing Instruments are used for strength, thickness, smoothness, tearing, bursting, compression, whiteness, water absorption, and tensile analysis of paper, pulp, carton, and corrugated board materials. Systems support measuring ranges up to 6000 kPa bursting pressure, 50 kN compression force, 16000 mN tearing capacity, and 1000 N tensile testing with high-resolution digital measurement. Units integrate air permeability, stiffness, folding endurance, friction, chromaticity, and ply bond testing for paper manufacturing, packaging inspection, and quality control applications.
