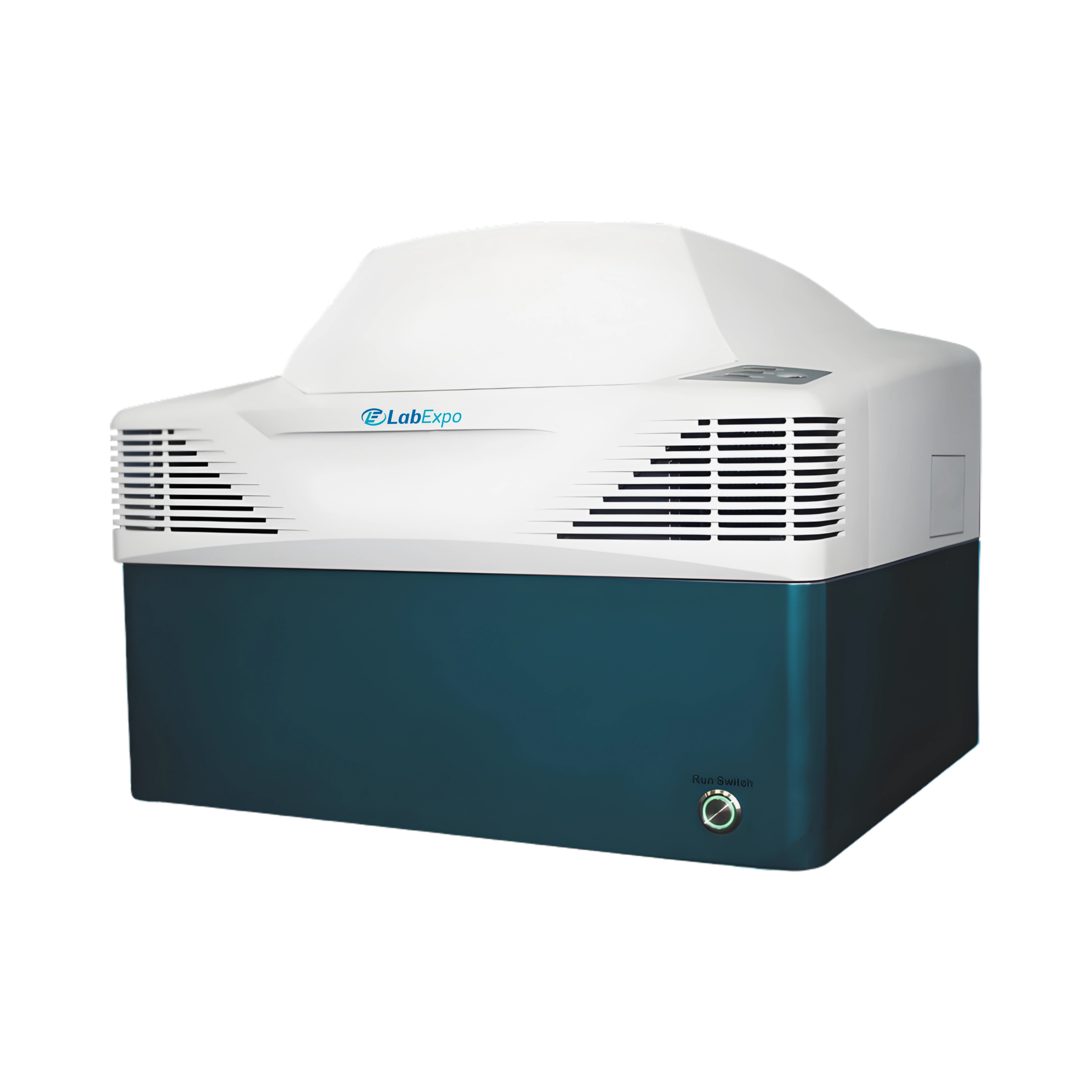

Real-Time PCR 62-RTP202

Lab Expo Real-Time PCR 62-RTP202 comes with 96 well capacity PCR machine with, 1 to 36°C gradient temperature range, and fast speed dual colour scanning mode. Its wide fluorescence wavelength range with innovative 6 channel design, optimizes thermal performance and maximizes convenience during operation. With its unique block dissipation technology, it provides precise temperature control and thermal gradient which easily optimizes PCR assays.

$19,440.00 $ 16200

Real-Time PCR 62-RTP202 - Specifications

Sample Capacity 96-Well PCR plate12 × 8-strip
96 × 0.2 ml(Bottom Transparent)
Emission Wavelength 500 to 800 nm
Excitation Wavelength 300 to 800 nm
Sample Volume Range 5 to 100μl
Program Max 20 Segments for Each Program, Max 99 Cycles
Dynamics Range 10 to 1010 Copies
Max. channels number of fluorescence detection 6 channels
Detected Fluorescence F1 : FAM SYBR Green I;F2 : VIC HEX TET JOE; F3 : CY3 NED TAMRA; F4 : ROX TEXAS-RED;F5 : Cy5;F6 : ht cycler red
Block Temp. Range 4 to 105℃ (Minimum Increment: 0.1℃), SOAK Low Temp. Conservation Function
Temp. Control Accuracy ≤ ± 0.1 ℃
Temp. Fluctuation ≤ ± 0.1 ℃
Temp. Uniformity ≤ ± 0.3 ℃
Ramping Rate 4.0 ℃/sec
Temp. Control Mode BLOCK/Tube Simulation Mode (Automatic Control based On Sample Volume )
Gradient Temp. Range 1 to 36 ℃
Hot-lid Temp. Range 30 to 110℃ (Adjustable, default 105℃, Automatic Hot-lid )
Fluorescence DetectionRepeatability 0.05
Operation Mode Continuous
Scan Mode Entire Plate or Designated Line
Scan Period 5.5 sec
Operation System Microsoft: Windows2000/XP/vista/Windows7Software: Excel2003/2007 Access: 2003/2007
PC Configuration Memory : 512 M; Hard Disk : 10 GB; CPU : Pentium® 4; Virtual Memory : ≥ 1000 MB
Power Supply 100 to 240 V, 50/60 Hz, 600 W
Dimension ( L × W × H ) 430 x 395 x 352 mm
Socket RS 232C Adapter

Real-Time PCR 62-RTP202 - Key Features

  • Ferrotec Peltier cooler with 600W power supply and long life operation
  • Block temperature range 4 to 105C with SOAK low temperature function
  • Six individual filters covering fluorescence detection wavelength 300 to 800 nm
  • USB and Bluetooth data transfer for seamless experimental result export
  • Real-time fast double wavelength X-Y scan system at 5.5 second period
  • High long life LED with dual high sensitivity PMT synchronous detection

Real-Time PCR 62-RTP202 - Applications

FunctionImplementation
Clinical diagnostics labs6 channels enables multiplex fluorescence detection
Research laboratories±0.1℃ accuracy supports precise thermal control
Quality control facilities96-well capacity processes high sample volumes
Industrial testing environments4.0℃/sec ramping rate accelerates cycle times
Educational institutions5 to 100μl volume range accommodates varied assays

Real-Time PCR 62-RTP202 - Catalog

Real-Time PCR 62-RTP202 Catalog

Related Real Time PCR

Lab Expo Real-Time PCR System enables accurate nucleic acid amplification and quantification with uniform thermal control and sensitive fluorescence detection. Designed for real time pcr workflows, it supports gradient temperature settings, multi-dye compatibility, and transparent well plates for precise signal capture. Integrated LED optics and intuitive software allow precise monitoring, data analysis, and reproducible results in research and diagnostic molecular biology applications.
