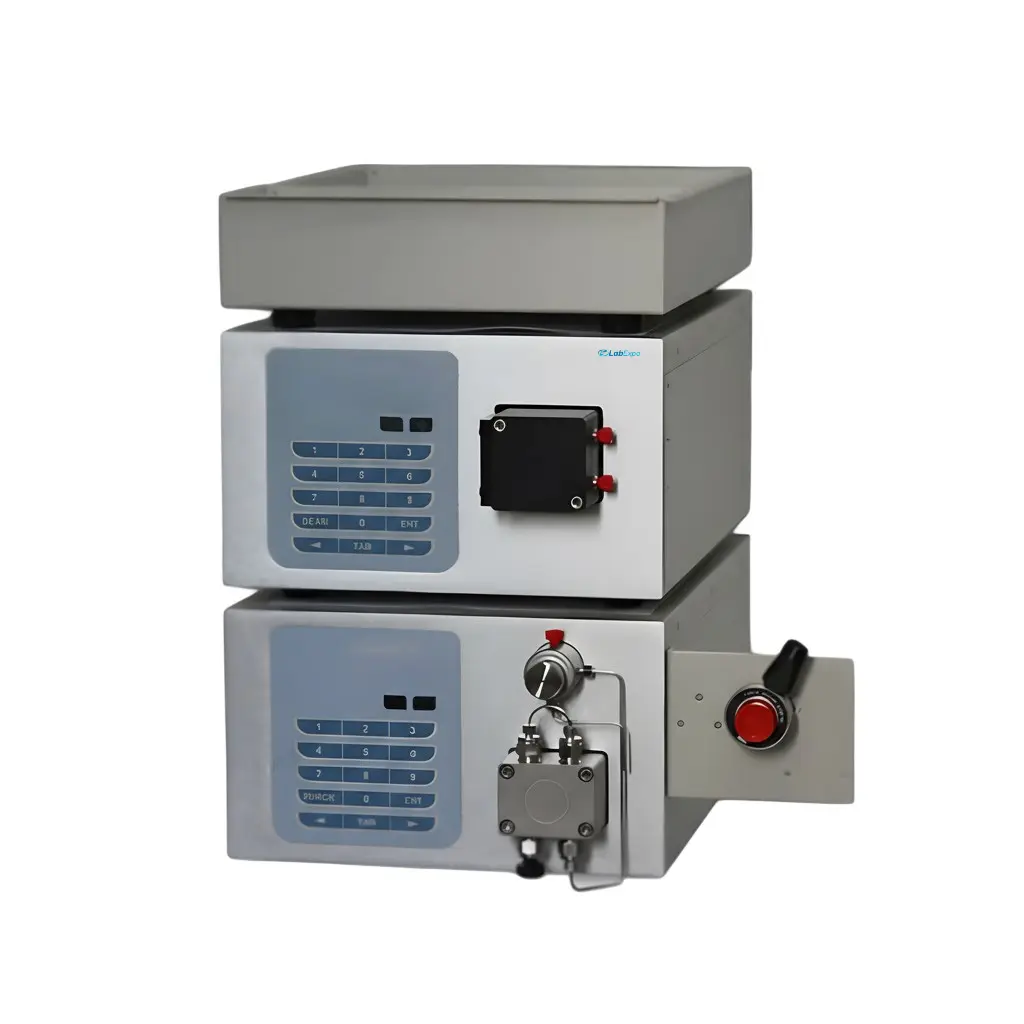

Lab Expo HPLC System LE-HCL102 designed with a high-pressure single pump ensures stable flow and reliable performance for precise liquid chromatography analysis. It features a wavelength range of 190 to 700 nm for versatile detection capabilities. Built-in high sensitivity enables reliable detection of trace compounds. Our HPLC System is suitable for stable baseline performance, accurate wavelength detection, and compact design.
$16,978.00 $ 14148
| High Pressure Pump | Single pump |
| Flow Rate Range | 0.001 to 9.999 mL/min |
| Pressure Range | ≤ 0.5 MPa (42 MPa) |
| Flow Rate Precision | RSD ≤0.08% (1mL/min, water, room temperature) |
| Flow Rate Accuracy | ≤±0.5% (1mL/min, water, room temperature) |
| Lamp | Deuterium lamp |
| Wavelength Range | 190 to 700 nm |
| Baseline Noise | ≤8 × 10-6 AU |
| Baseline Drift | ≤1 × 10-4 AU/h |
| Detection Limit | 4 × 10-9 g/ml (Naphthalene/methyl alcohol solvent) |
| Wavelength Accuracy | ± 1 nm |
| Pump Dimension | 470 × 380 × 300 mm |
| Detector Dimension | 470 × 380 × 400 mm |
| Weight | 6 kg |
Function Implementation Quality control labs 0.001 to 9.999 mL/min flow rate range enables precise reagent dosing Clinical analysis ±1 nm wavelength accuracy supports accurate compound identification Research laboratories ≤8 × 10-6 AU baseline noise ensures clean signal detection Industrial testing ≤±0.5% flow rate accuracy maintains consistent sample processing Institutional facilities 470 × 380 × 300 mm pump dimension allows benchtop integration
High pressure pump
UV detector
C18 column
Static mixer
Injection valve
Software
Auto sampler
Column Oven
AD Adapter
2 channel degassers
Lab Expo Standard HPLC systems are configured for high pressure chromatography and routine analytical separation workflows in pharmaceutical, chemical, and research laboratories. These liquid chromatography equipment models support flow rates from 0.001 to 9.999 mL/min with operating pressures up to 45 MPa and flow repeatability of RSD ≤ 0.1%. Systems integrate single or dual pump assemblies, double-piston solvent delivery, and analytical pump head configurations for controlled compound separation and quantitative analysis.
