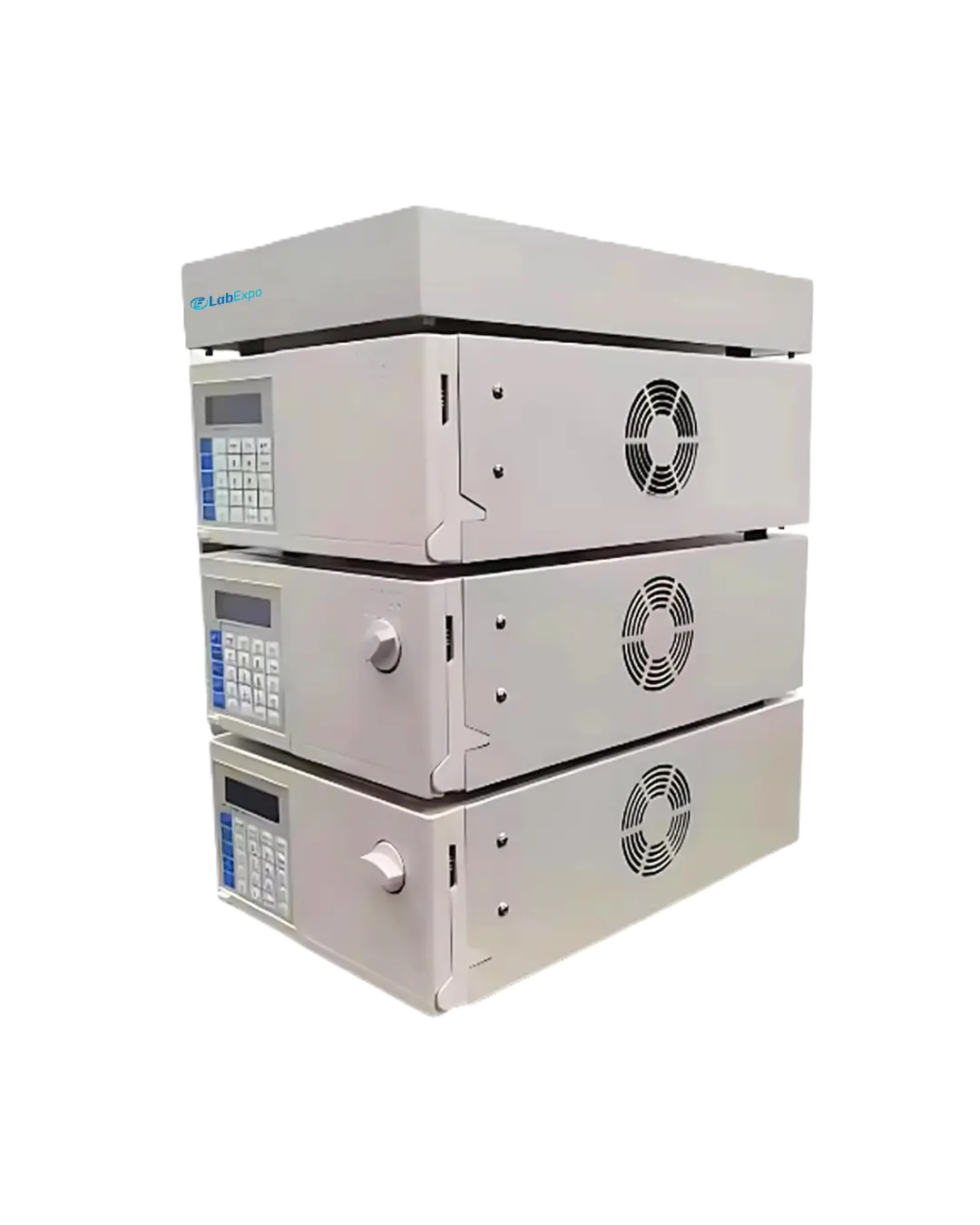

Lab Expo HPLC System LE-HCL104 offers a wide flow range of 0.001 to 9.999 mL/min, ensuring flexible operation. It utilizes a double piston delivery method to ensure stable and precise solvent flow. Equipped with a 300 mm display, providing clear and convenient visualization. Built with self-priming pump head to eliminate the need of manual priming. Our HPLC system is well-suited for a wide range of analytical and preparative applications.
$19,512.00 $ 16260
| Flow Range | 0.001 to 9.999 mL/min |
| Delivery Method | Double Piston (Main & Auxiliary) |
| Pump Head | 10 mL Stainless Steel (SST) / PEEK (Analytical) |
| Accuracy | ±1% or ±2 µL/min (Greater Applies) ±1% or ±1 µL/min (Greater Applies, Micro Mode) |
| Flow Rate Settings | 0 to 0.10 mL/min, increment 0.001 mL/min0.10 to 0.90 mL/min, increment 0.010 mL/min ≥ 1.0 mL/min, increment 0.10 mL/min |
| Precision | 0.1% RSD |
| Maximum Pressure (Pmax) | 9999 psi |
| System Connections | 1/16’’ Capillaries |
| Display | 300 mm Display |
| Power Consumption | 60 W |
| Power Supply | 85 to 264 VAC, 47 to 63 Hz |
| Dimensions | 130 × 260 × 420 mm |
| Weight | 11 kg |
Function Implementation Analytical sample processing 0.001 to 9.999 mL/min flow range enables precise solvent delivery Quality control testing ±1% or ±2 µL/min accuracy supports reliable quantitative results Preparative chromatography Double piston delivery ensures stable high-flow operation up to 9.999 mL/min Research method development 300 mm display provides clear visualization of operational parameters Clinical laboratory workflows Power consumption of 60 W allows continuous operation under standard lab power conditions
Liquid Constant Flow Pump, 2 sets
UV-VIS Spectrophotometric Detector, 1 set
Solvent Tray, 1 set
Mixer, 1 set
Manual Injector, 1 set
Chromatography Data System, 1 set
Chromatography Column, 1 set
4.6 × 250 mm, 5µm Sodium Benzoate Column, 2 pcs
4.6 × 250mm, 5µm Di-Sulphonates/Sulfonates Column, 2 pcs
100 pcs Syringe Filters, 4 packs
200 pcs Membrane Filters, 4 packs
100 pcs Sample Vials, 1 pack
Water Purification System (HPLC Grade), 1 pc
Mobile Phase Degassing Unit (HPLC Grade), 1 pc
Microfiltration System (HPLC Grade), 1 pc
Lab Expo Standard HPLC systems are configured for high pressure chromatography and routine analytical separation workflows in pharmaceutical, chemical, and research laboratories. These liquid chromatography equipment models support flow rates from 0.001 to 9.999 mL/min with operating pressures up to 45 MPa and flow repeatability of RSD ≤ 0.1%. Systems integrate single or dual pump assemblies, double-piston solvent delivery, and analytical pump head configurations for controlled compound separation and quantitative analysis.
