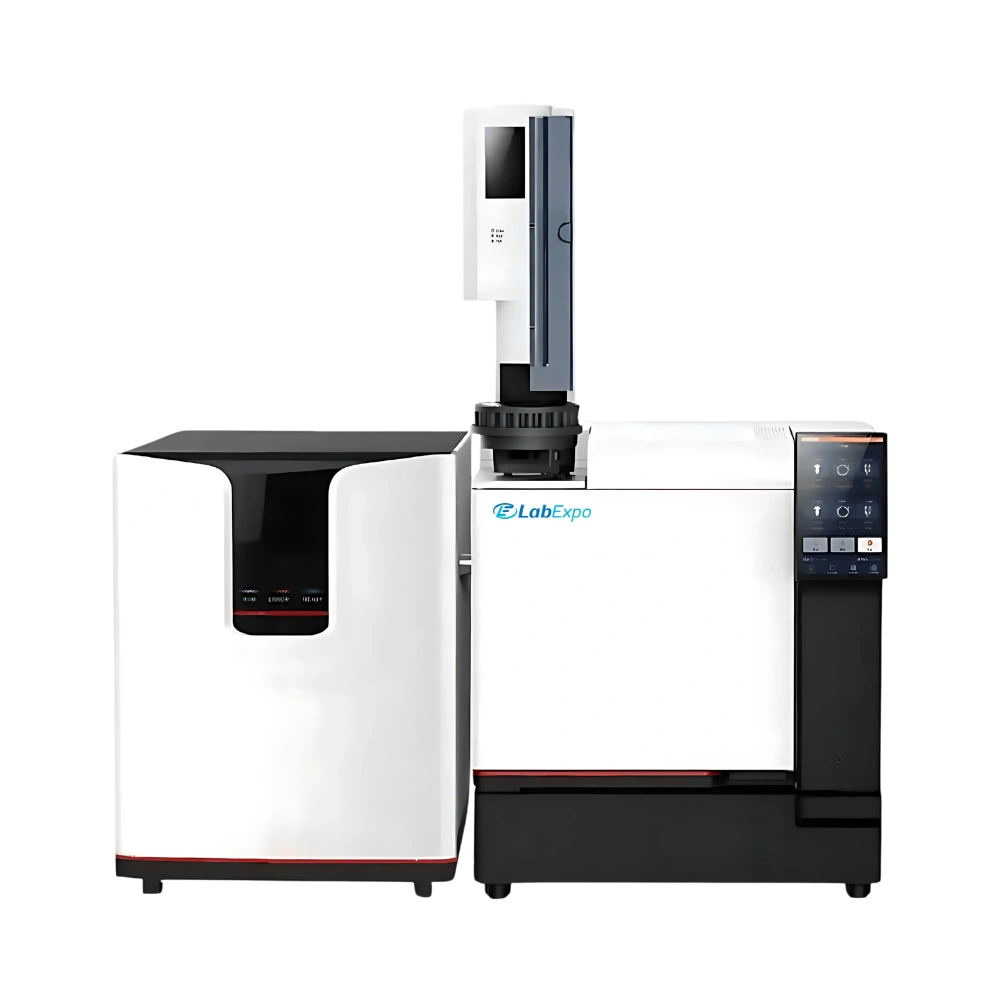

Triple Quadrupole GCMS LE-TQC101 functions efficiently within an ambient temperature range of 18 to 25 ℃. It employs advanced triple quadrupole technology for superior signal sensitivity. Features automated tuning and calibration to maintain reliable and accurate operation. Designed with high mass resolution capabilities to effectively differentiate compounds with closely related mass values. Our Triple Quadrupole GCMS supports simultaneous acquisition modes to ensure thorough compound analysis.
$167,328.00 $ 139440
| Working Ambient Temperature | 18 to 25 ℃ |
| Working Humidity | 20 to 60% RH |
| Pumping Speed | 65 m³/h |
| Sample Volume | 0.1 µL to 250 µL |
| Sampling Accuracy | ± 0.01% |
| Sampling Precision | RSD < 0.5% |
| Flow Rate | 0 to 500 mL/min (N₂), 0 to 1000 mL/min (He) |
| Maximum Flow Rate | 10 mL/min |
| Inlet Temperature | 450 °C |
| Temperature Control Accuracy | ± 0.1 ℃ |
| Humidity | 20 to 60% RH |
| Pressure Range | 0 to 100 psi |
| Pressure Control Accuracy | ± 0.001 psi |
| Heating Rate | Up to 120 ℃/min, typically 50 ℃/min |
| Cooling Time | 6 minutes |
| Pressure Control Mode | Programmable Electronic Air Circuit Control |
| Auto Sampler | Optional |
| Mass Analyzer | Triple Quadrupole Mass Analyzer |
| Mass Number Range | 5 to 1100 amu |
| EI Ion Source Temperature | 150 °C to 350 °C |
| GC-MS Interface Temperature | 50 to 400 °C |
| Scan Rate | Up to 20,000 amu/s |
| Stability | < ± 0.1 amu / 24 hrs |
| EI Source Ionization Energy | 10 eV to 300 eV |
| Resolution | 0.4 to 2 amu (adjustable) |
| Detector | Pulse Counting Detectors |
| Sensitivity | MRM mode: 1 µL of 100 fg/µL OFN, ≥ 15000:1 |
| Vacuum | Mechanical Pump and Turbo Molecular Pump |
Function Implementation Food safety testing MRM mode enables trace pesticide residue quantification Environmental monitoring High scan rate supports trace pollutant analysis Forensic toxicology Wide mass range enables drug and metabolite detection Pharmaceutical analysis Adjustable resolution supports impurity profiling Industrial testing Stable pressure control supports volatile compound analysis
Host machine for MS part × 1 set
Customized host × 1 set
MS accessory kit × 1 set
GC accessory kit × 1 set
Adjustable operating table × 1 set
Vacuum mechanical pump × 1 set
Voltage regulator × 1 set
Mechanical pump × 1 set
Adapter plug × 1 set
Three-core power cord × 1 stick
CD-50 capillary column × 1 stick
DB-17ms gas chromatographic column × 1 stick
VF-WAXms gas chromatography column × 1 stick
Tuning solvent (OFN) × 1 bottle
10 µL SGE syringe with 50 mm fixed tapered needle, OD 0.63 mm
EI source filament × 1
Fluorine rubber O-ring, 1.5 × 1.5 mm (10 pcs/pack)
Helium trap
Thermolite Plus ultra-low loss inlet septa, Ø11 mm, heat resistant up to 300°C (10 pcs/pack)
Vespel/graphite ferrule for 0.25 mm ID column (10 pcs/pack)
Vespel/graphite ferrule for 0.32 mm ID column (10 pcs/pack)
Splitless GC inlet liner for gas chromatography
Precision split GC liner, 4 × 6.3 × 78.5 mm (5 pcs/pack)
Stainless steel split plate for GC inlet, 0.8 mm ID hole, straight-line split, surface inertized, with double-sided Vespel sealing ring
Alumina powder, 99.998% purity, 5 to 6 µm particle size (100 g, A102005)
Hand-screwed nut module
Single-head heating rod for vacuum use, 60W, 48V, Ø0.371-inch, 1 inch length
Ceramic insulation ring
Ceramic gasket
EI source holder
Hand-tightened capillary column connector
Electron multiplier
Cylinder pressure reducing valve
Pump oil, 2.5 L/bottle
Inline clean filter
2mL sample bottle (100pcs/box)
2mL sample bottle cap and gasket (100pcs/box)
GC empty column upgrade package
In-column backflush MS upgrade package
